Central Control Module: Locations

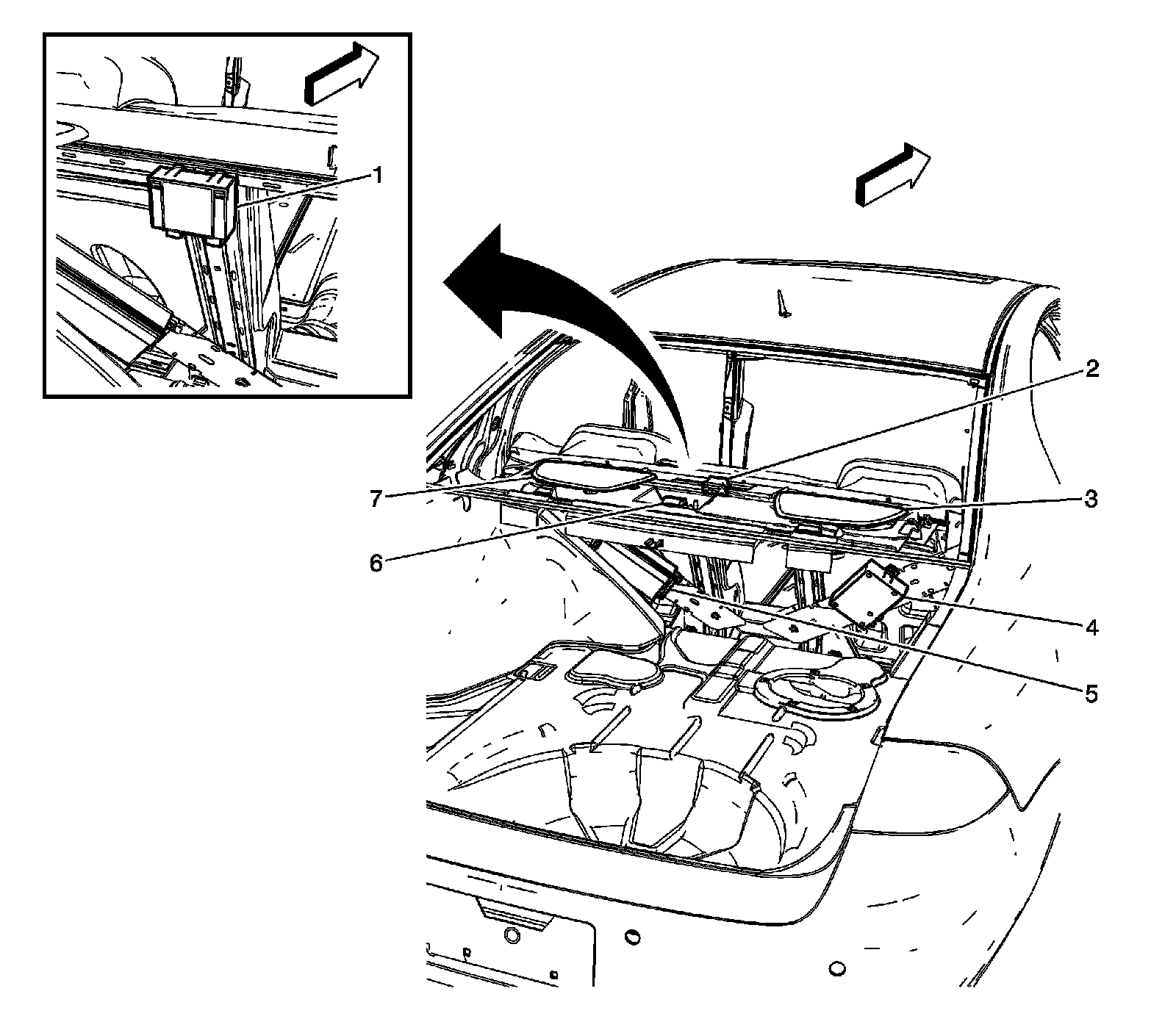

Luggage Compartment/Rear of Vehicle Component Views

Behind The Rear Seat




1 - Remote Control Door Lock Receiver (RCDLR)
2 - Rear Park Assist Indicator (UFR)
3 - Speaker - Right Rear
4 - Vehicle Communication Interface Module (VCIM) (UE1)
5 - Amplifier (UQA)
6 - Rear Compartment Courtesy Lamp
7 - Speaker - Left Rear
