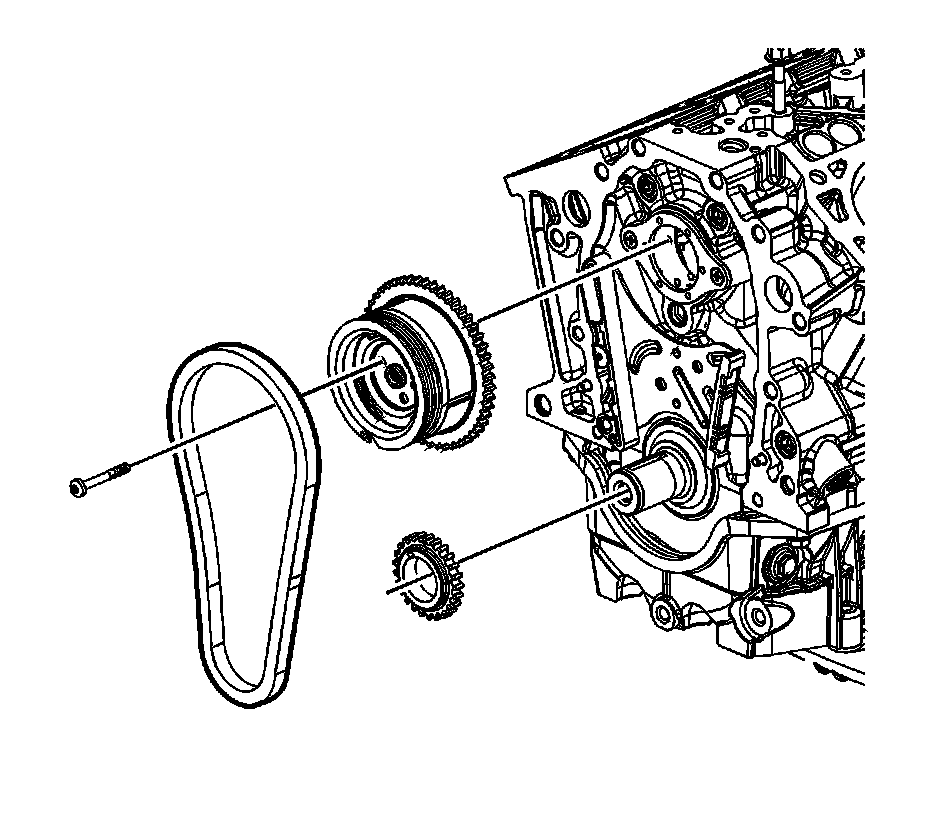

Timing Component Alignment Marks: Locations

Align the crankshaft timing mark (1) to the timing mark on the bottom of the timing chain tensioner (2).
Align the timing mark on the camshaft gear (3) with the timing mark on top of the timing chain tensioner (4).





Align the dowel in the camshaft sprocket with the dowel hole in the camshaft.

Refer to Camshaft Timing Chain and Sprocket Replacement. Service and Repair
