Front of Vehicle/Engine Compartment Component Views




Front of Vehicle/Engine Compartment Component Views

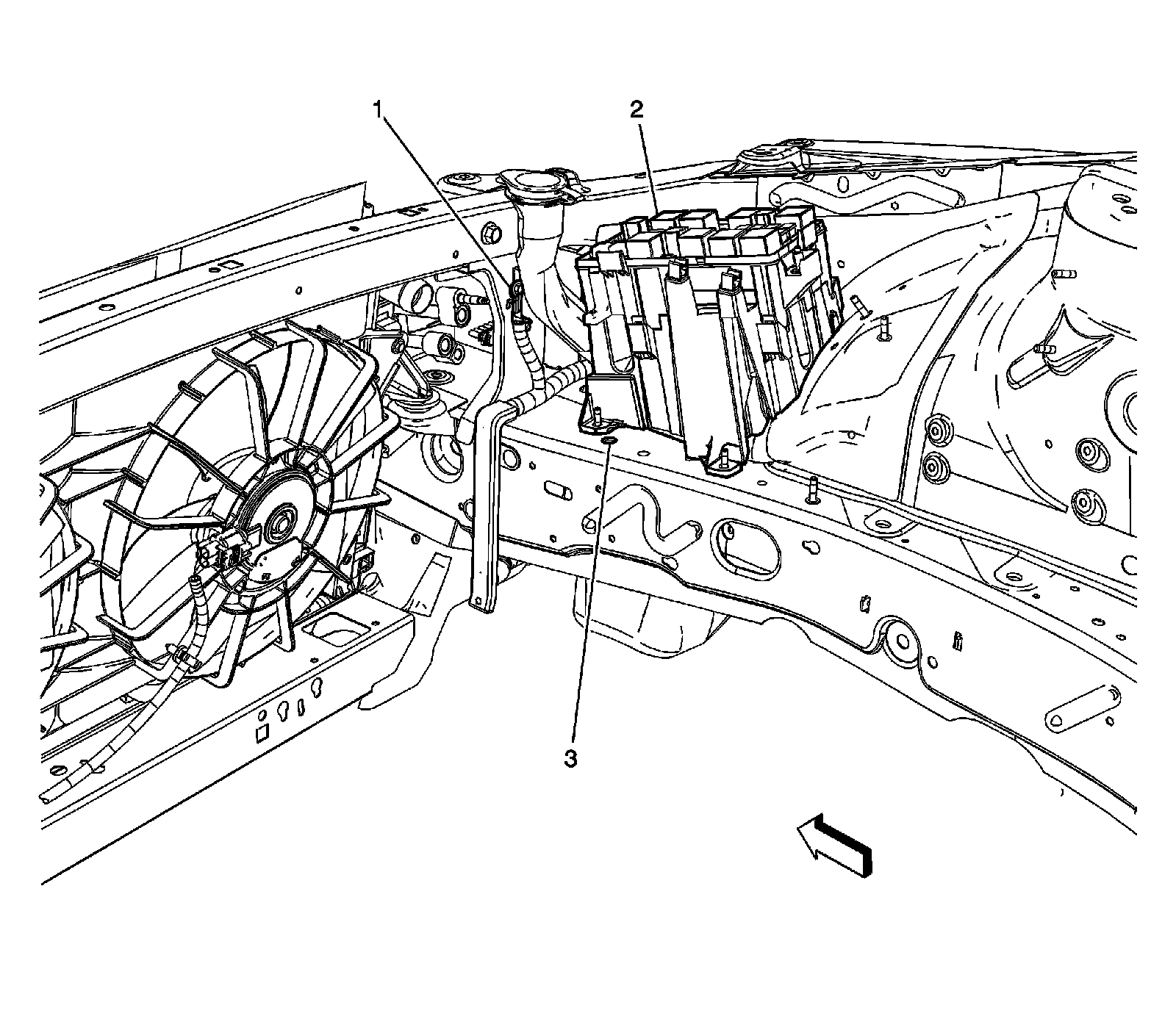

Right Front of the Engine Compartment




1 - G104
2 - Fuse Block - Underhood
3 - G111
