Accelerator Pedal Position Sensor: Locations

Passenger Compartment/Roof Component Views

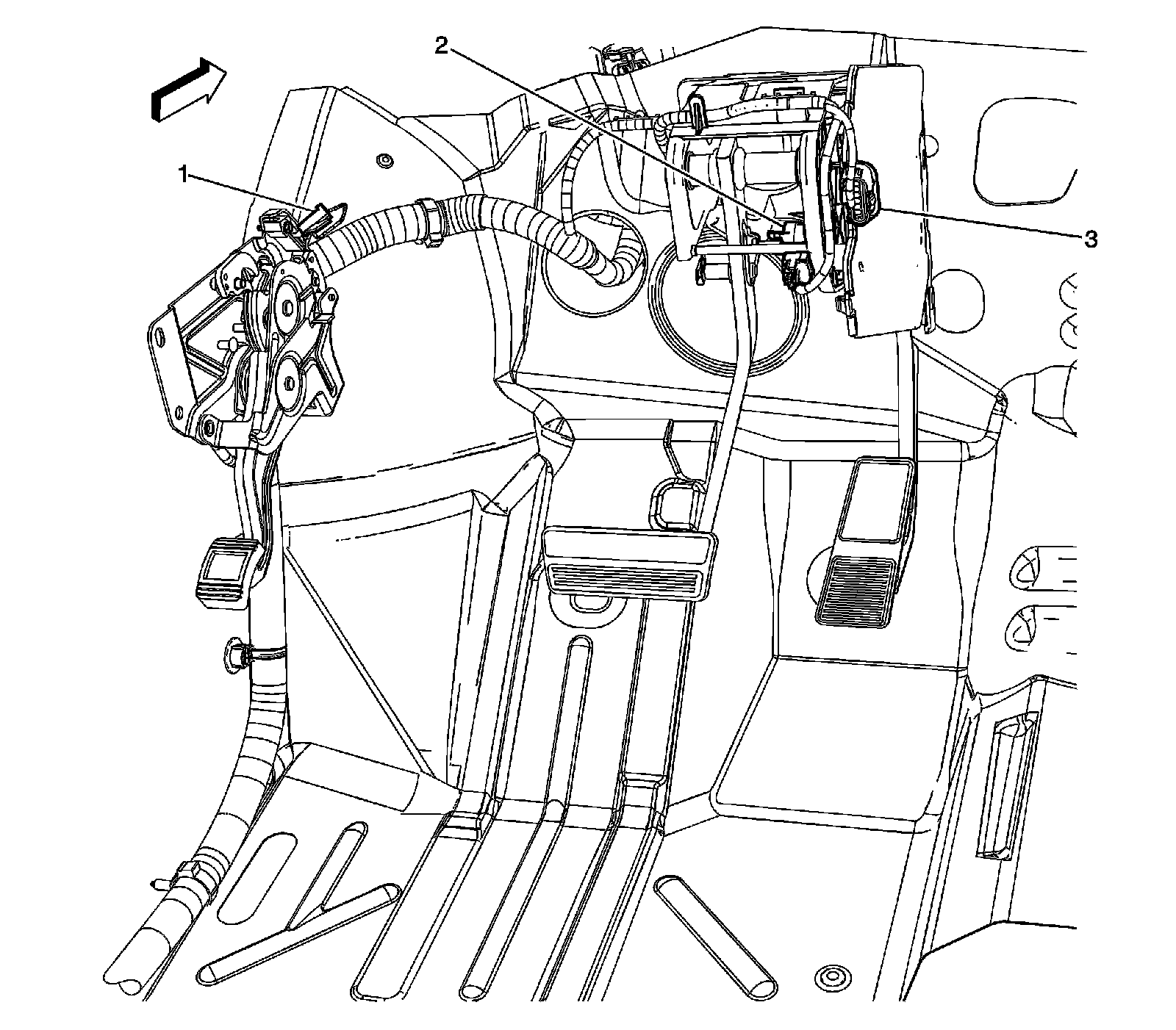

Lower Left Side of I/P




1 - Park Brake Switch
2 - Brake Pedal Position Sensor
3 - Accelerator Pedal Position (APP) Sensor
