Door Module: Locations

Door Component Views

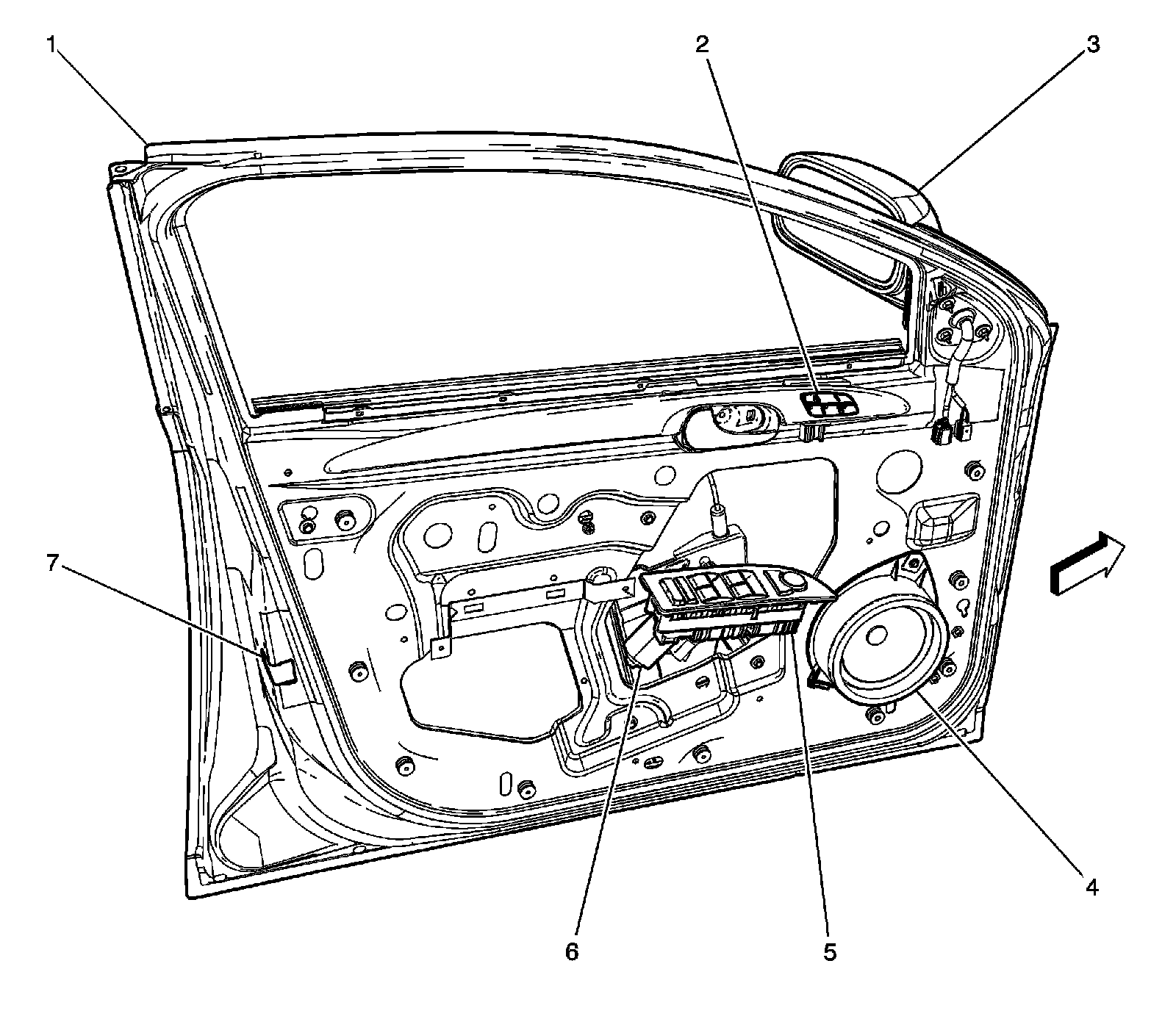

Driver Door




1 - Door Frame
2 - Heated and Cooled Seat Switch - Driver (KA1/KB6)
3 - Outside Rearview Mirror - Driver
4 - Speaker - Left Front Door
5 - Driver Door Module (DDM)
6 - Window Motor - Driver
7 - Door Latch Assembly - Driver

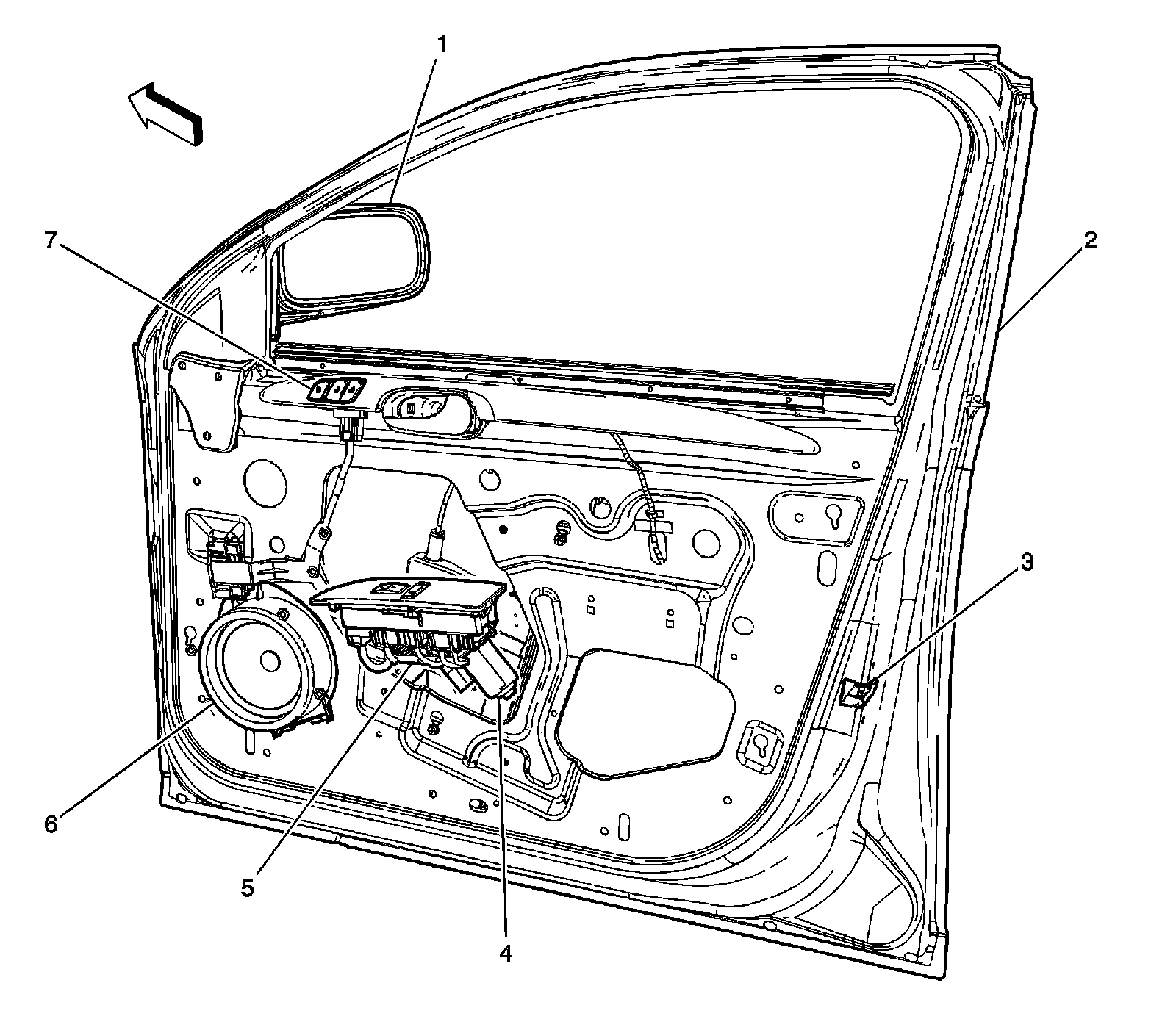

Passenger Door




1 - Outside Rearview Mirror - Passenger
2 - Door Frame
3 - Door Latch Assembly - Front Passenger
4 - Window Motor - Driver
5 - Front Passenger Door Module (FPDM)
6 - Speaker - Right Front Door
7 - Heated and Cooled Seat Switch - Front Passenger (KA1, KB6)
