Fuse Block - Battery




Electrical Center Identification Views

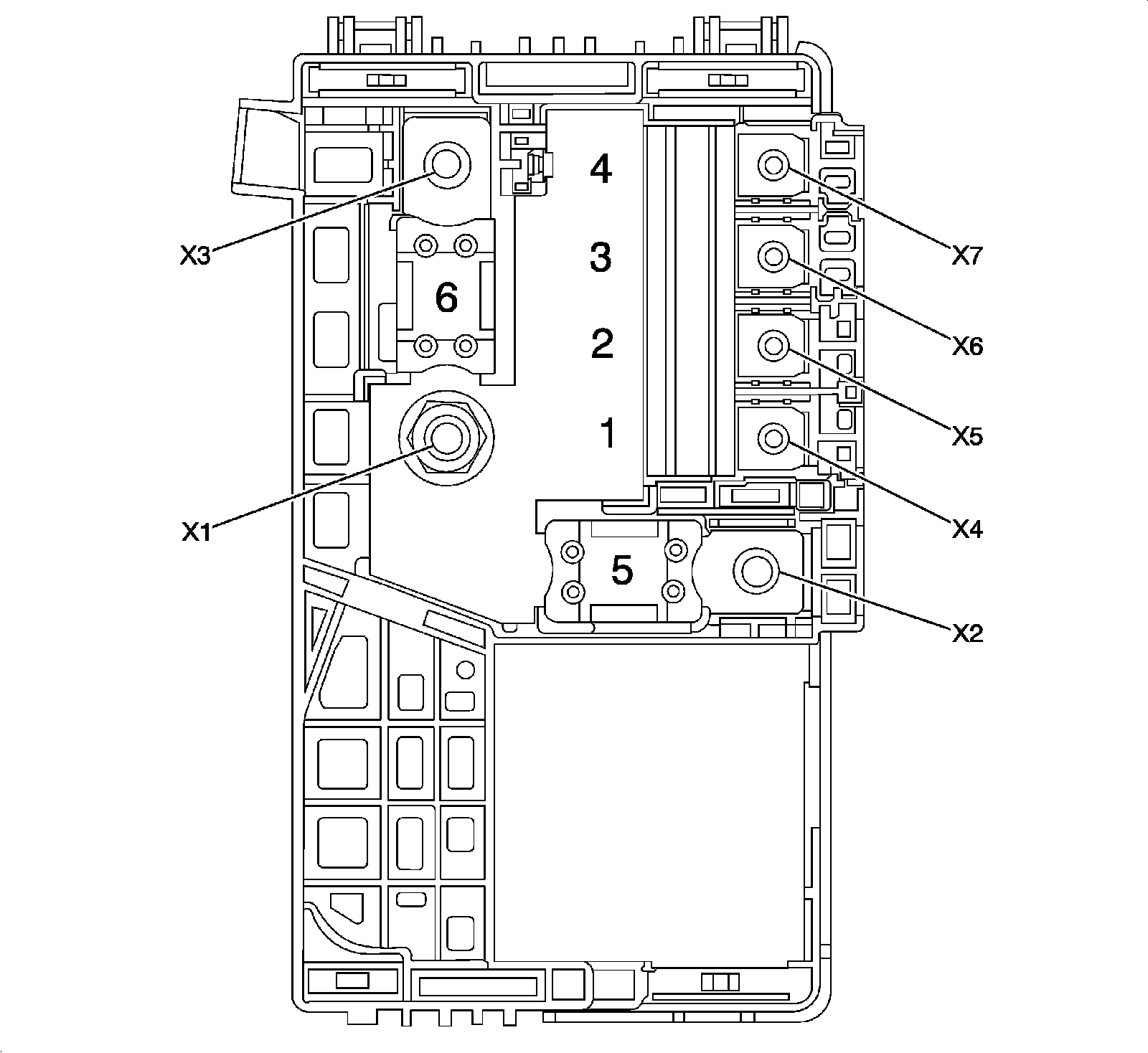

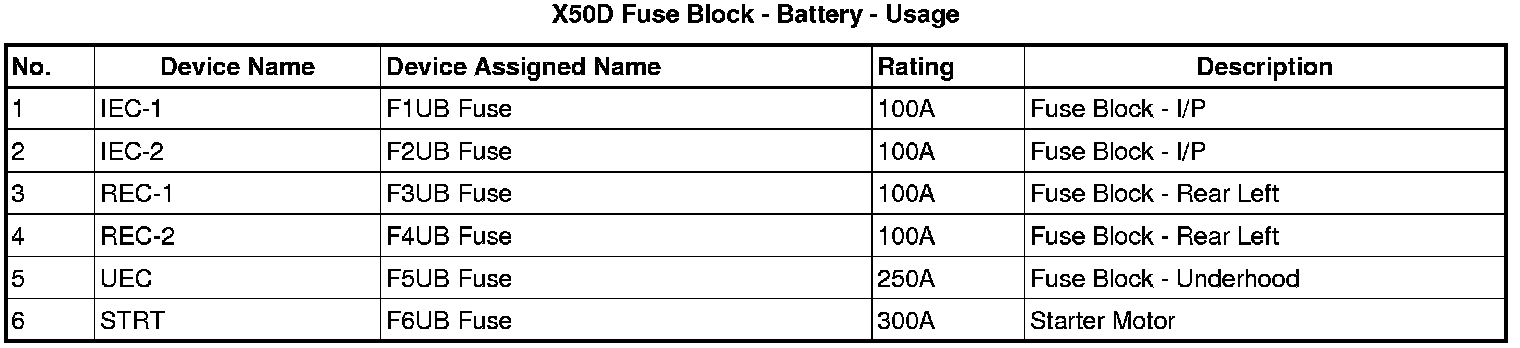

X50D Fuse Block - Battery - Top View

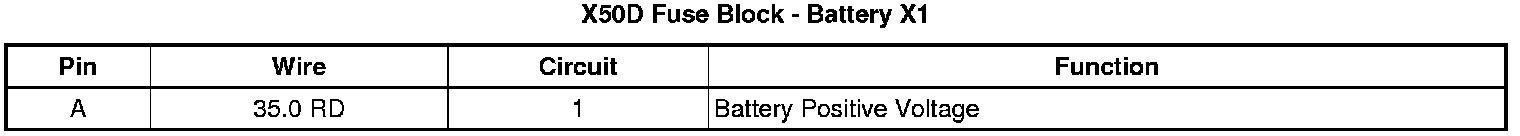

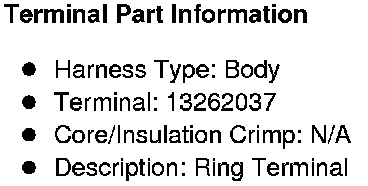

X50D Fuse Block - Battery X1

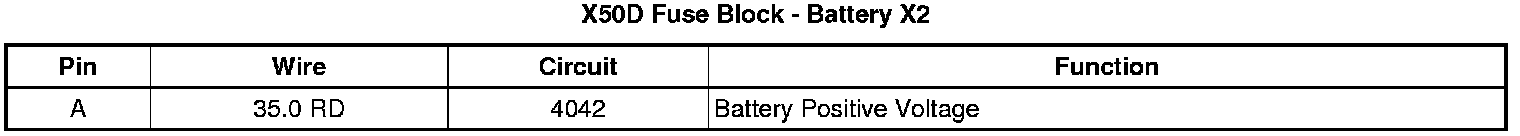

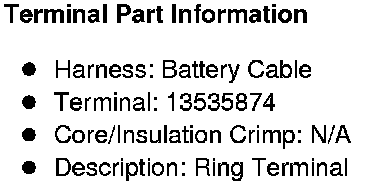

X50D Fuse Block - Battery X2









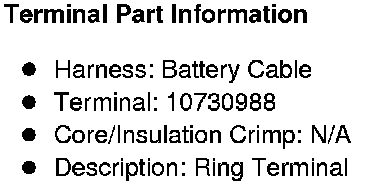

X50D Fuse Block - Battery X3

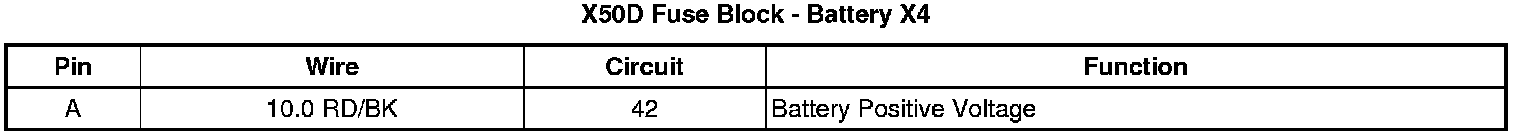

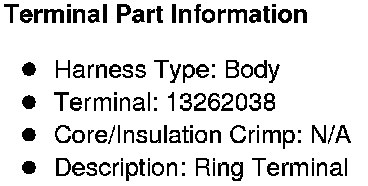

X50D Fuse Block - Battery X4

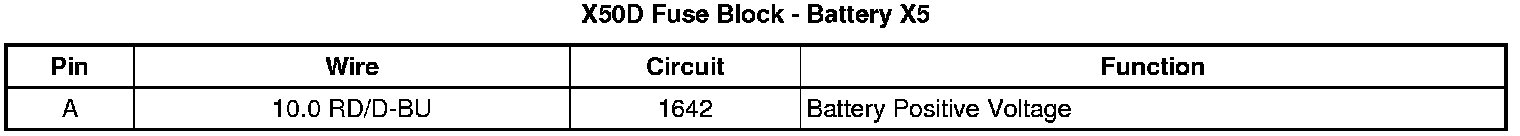

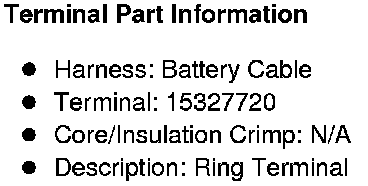

X50D Fuse Block - Battery X5

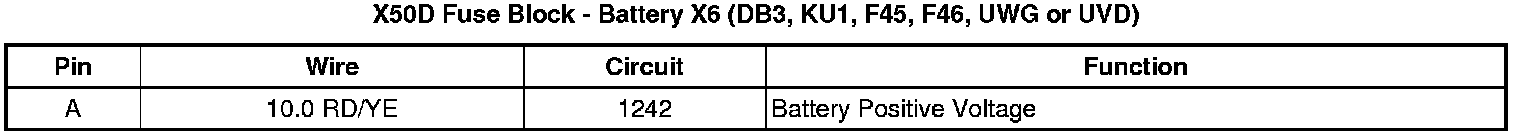

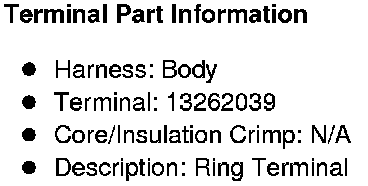

X50D Fuse Block - Battery X6 (DB3, KU1, F45, F46, UWG or UVD)

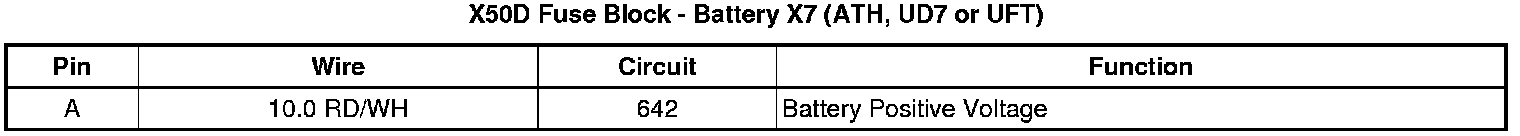

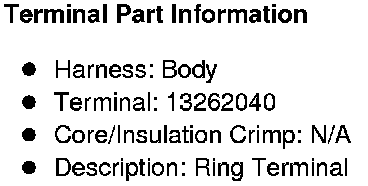

X50D Fuse Block - Battery X7 (ATH, UD7 or UFT)
