Body Control System Schematics

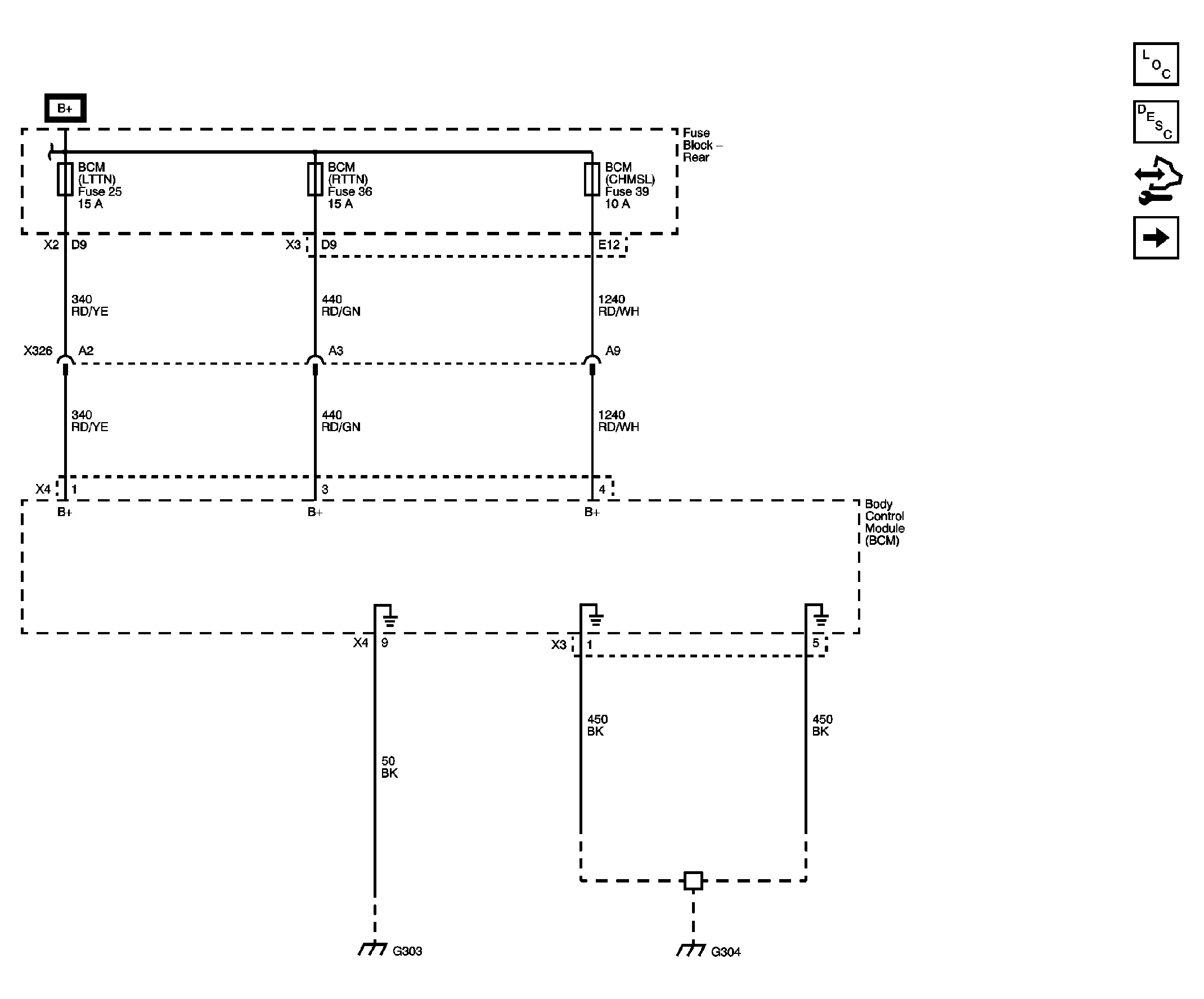

Fig 1: BCM Power, Ground and DLC

GM2228028

Courtesy of GENERAL MOTORS CORP.

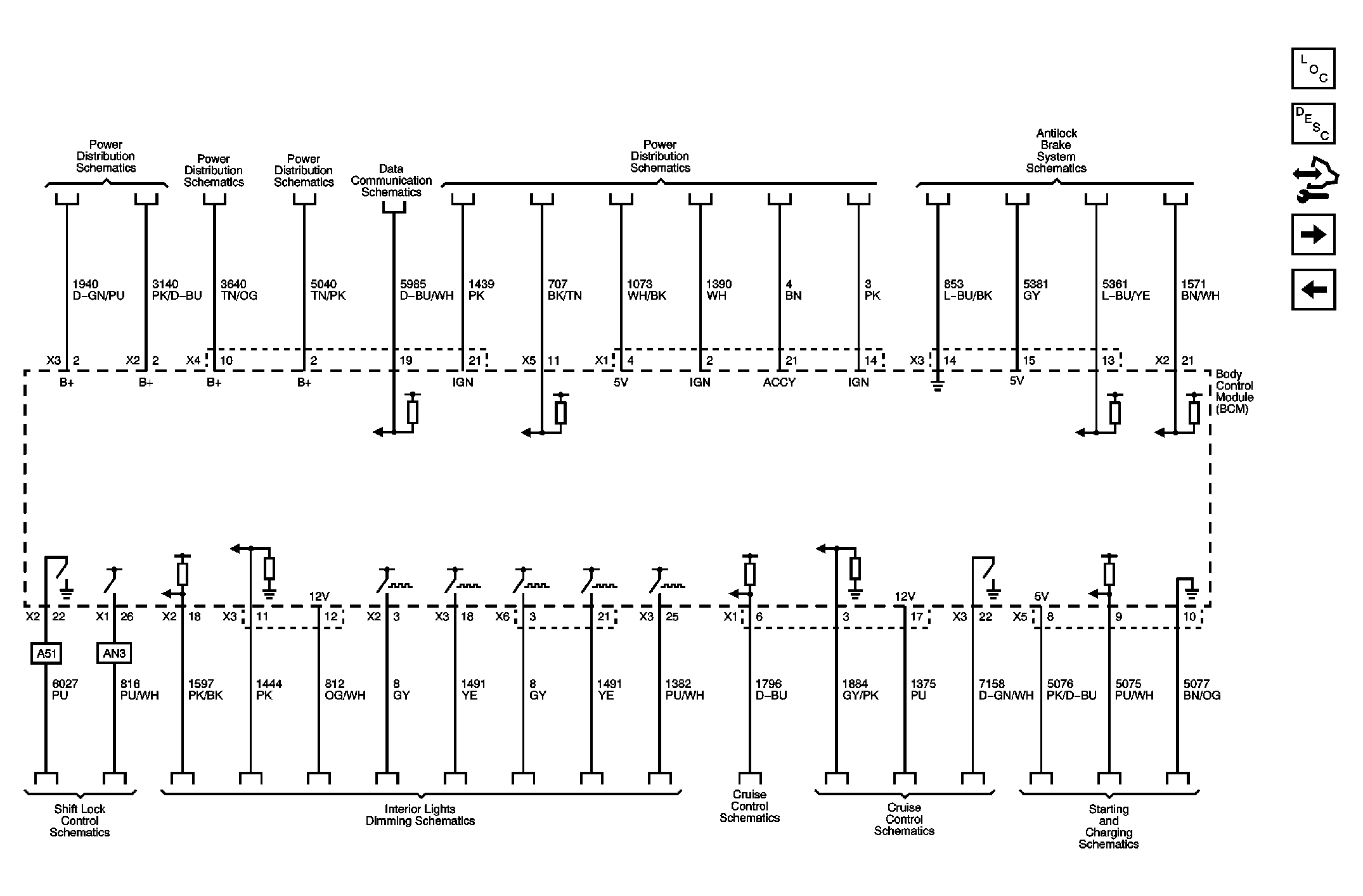

Fig 2: BCM Inputs and Outputs 1 of 4

GM2228029

Courtesy of GENERAL MOTORS CORP.

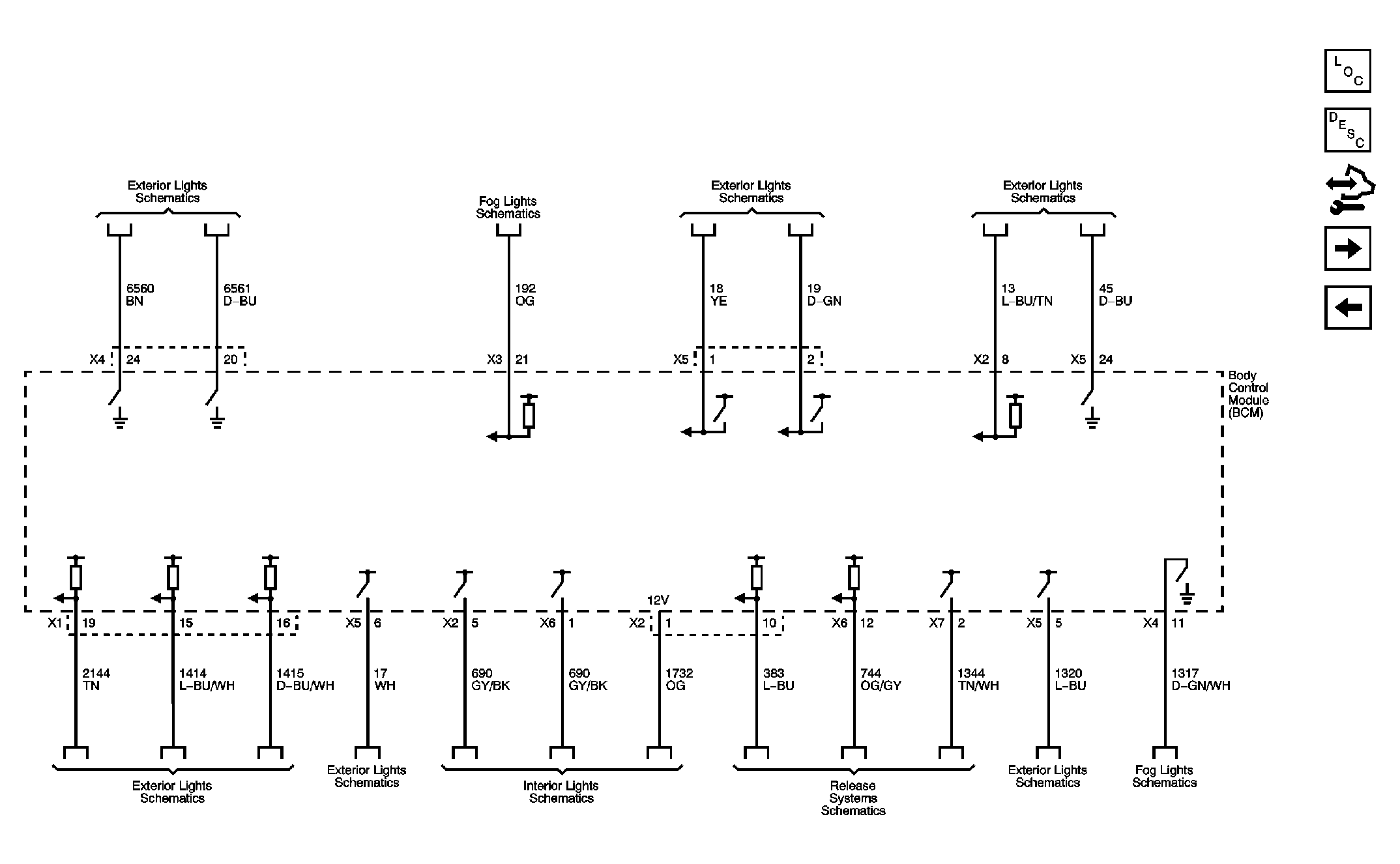

Fig 3: BCM Inputs and Outputs 2 of 4

GM2228030

Courtesy of GENERAL MOTORS CORP.

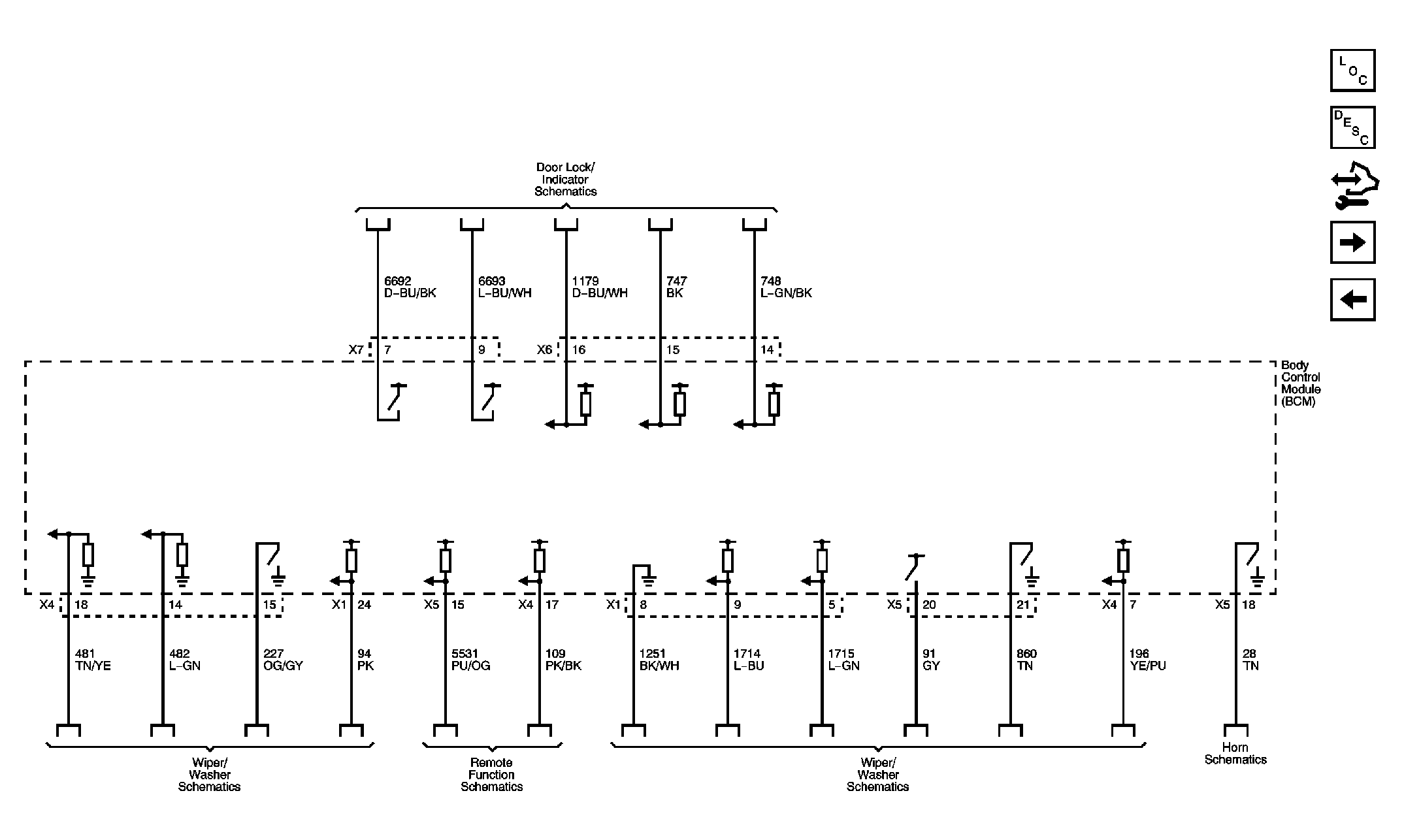

Fig 4: BCM Inputs and Outputs 3 of 4

GM2228031

Courtesy of GENERAL MOTORS CORP.

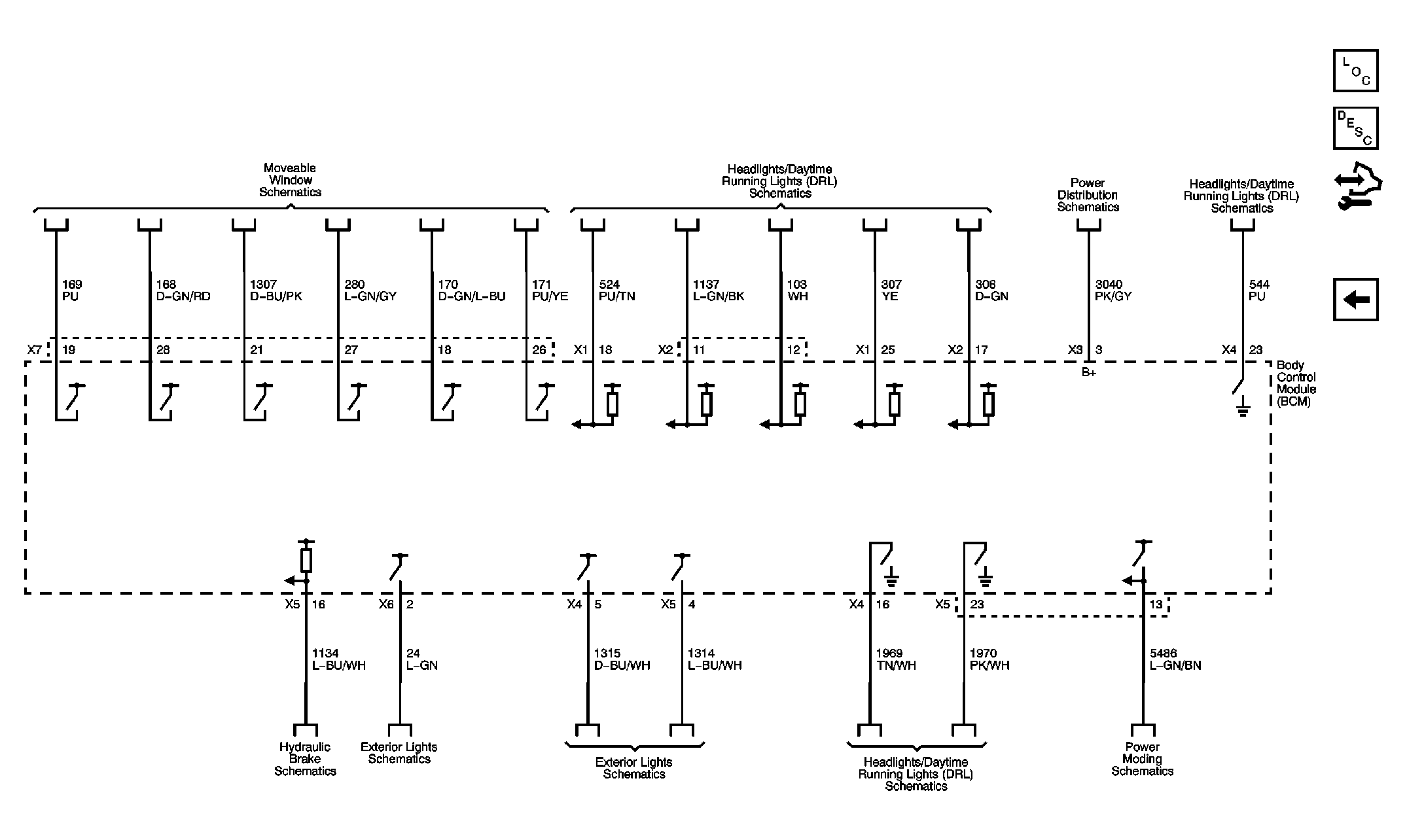

Fig 5: BCM Inputs and Outputs 4 of 4

GM2228035

Courtesy of GENERAL MOTORS CORP.
