Power Mirror Switch




Component Connector End Views

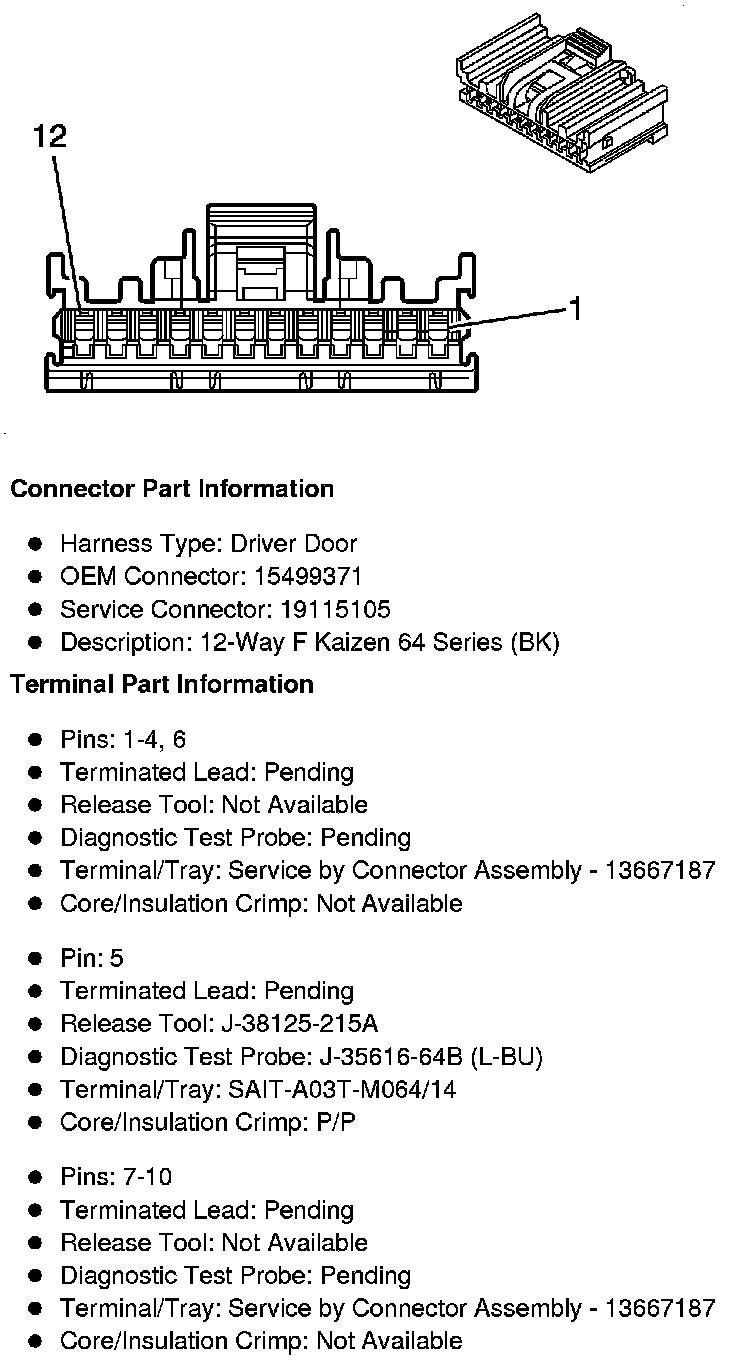

S52 Outside Rearview Mirror Switch (A45)

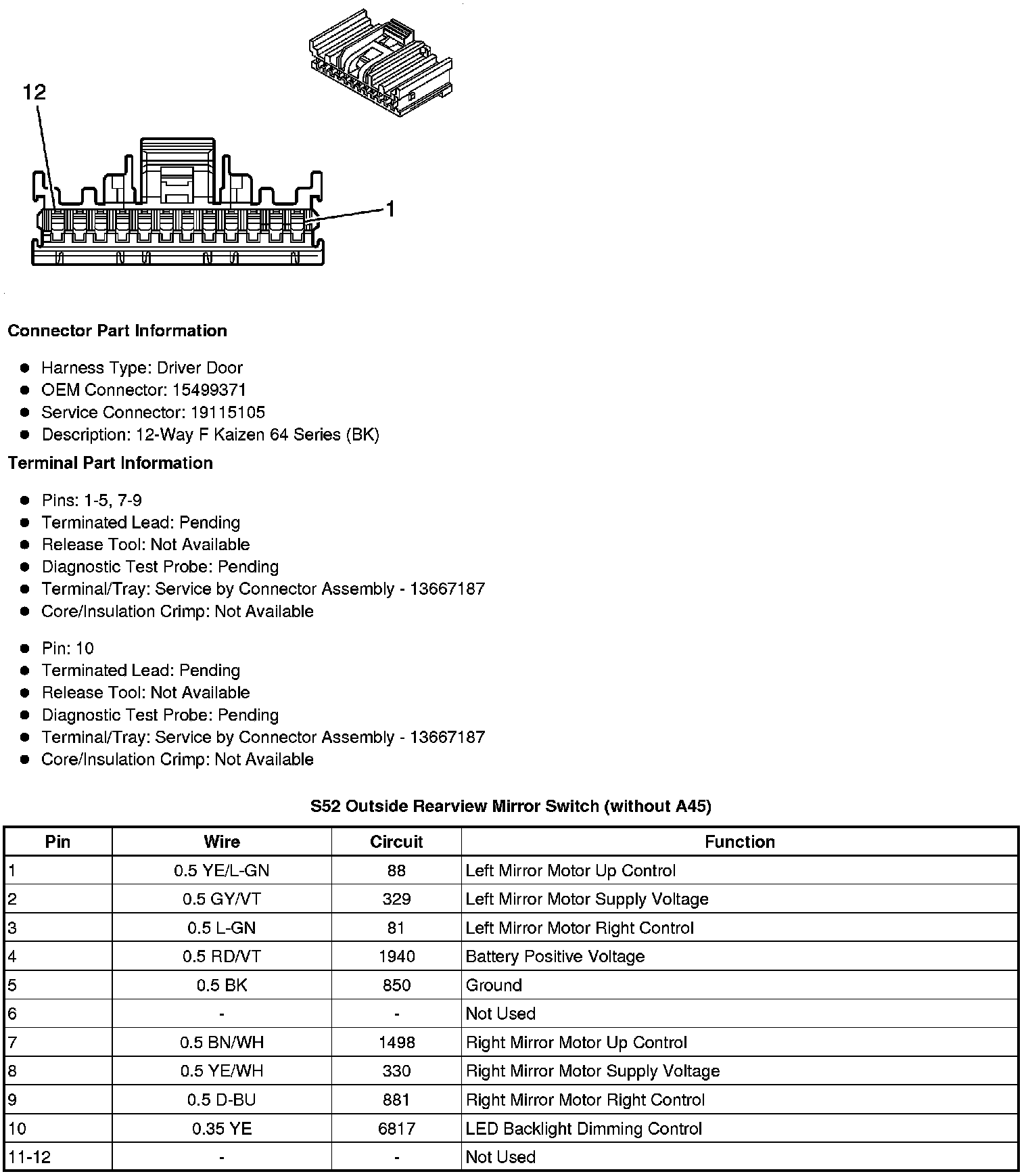

S52 Outside Rearview Mirror Switch (without A45)
