Remote Keyless Entry System Wiring Schematics

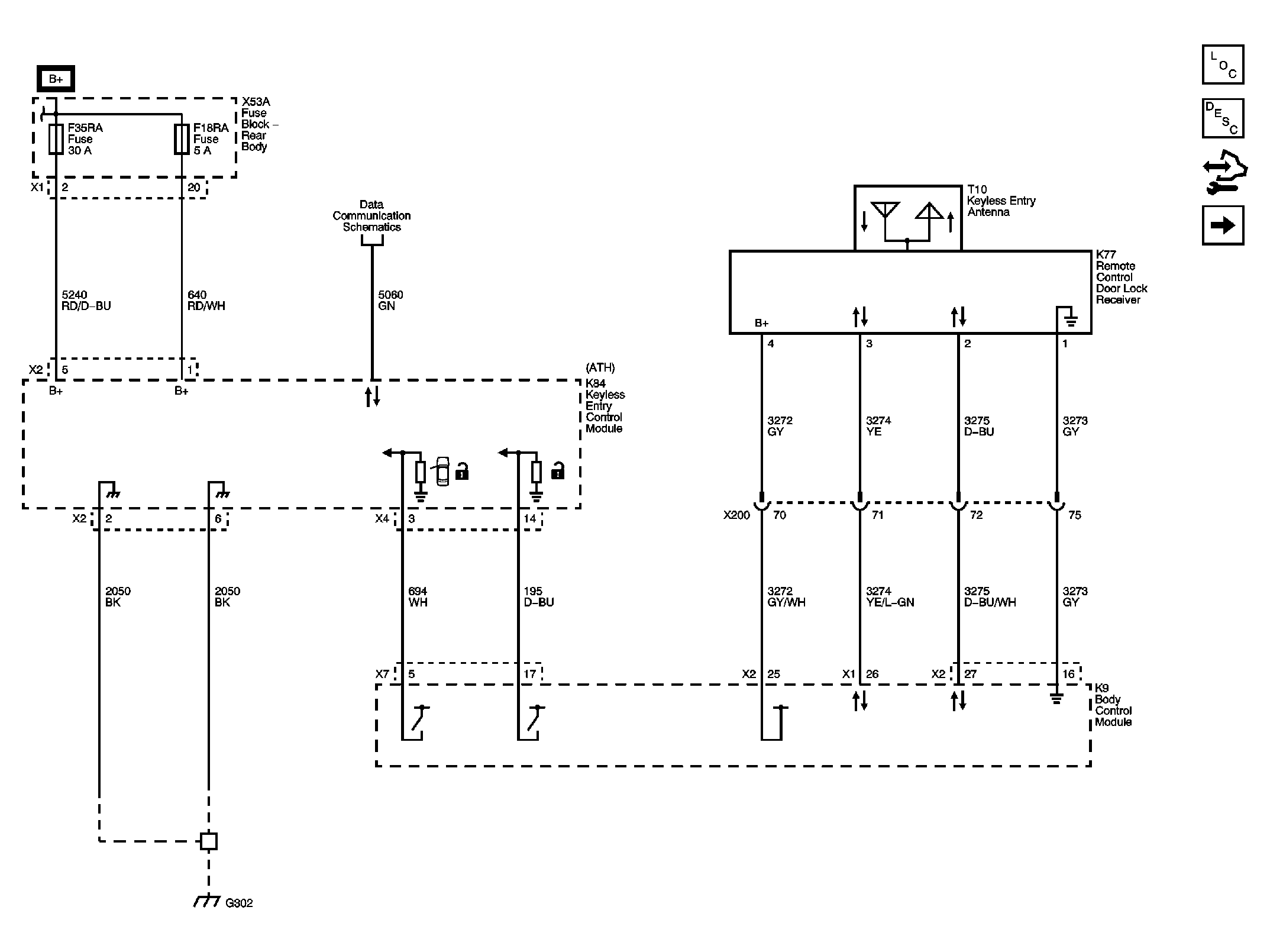

Fig 1: Module Power, Ground, Data Communication, and Controls Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

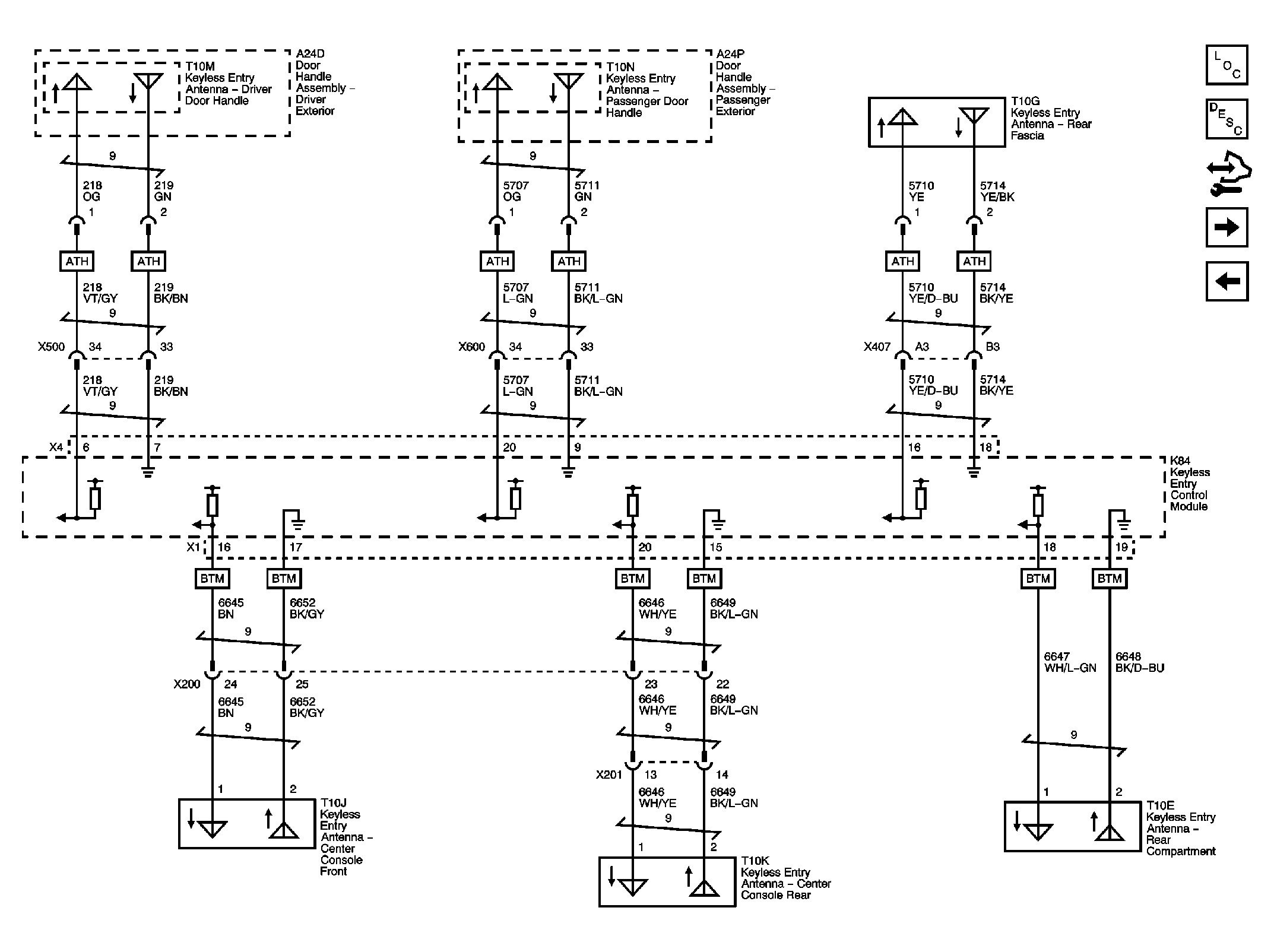

Fig 2: Passive Entry, Passive Start Antenna Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Garage Door Opener Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

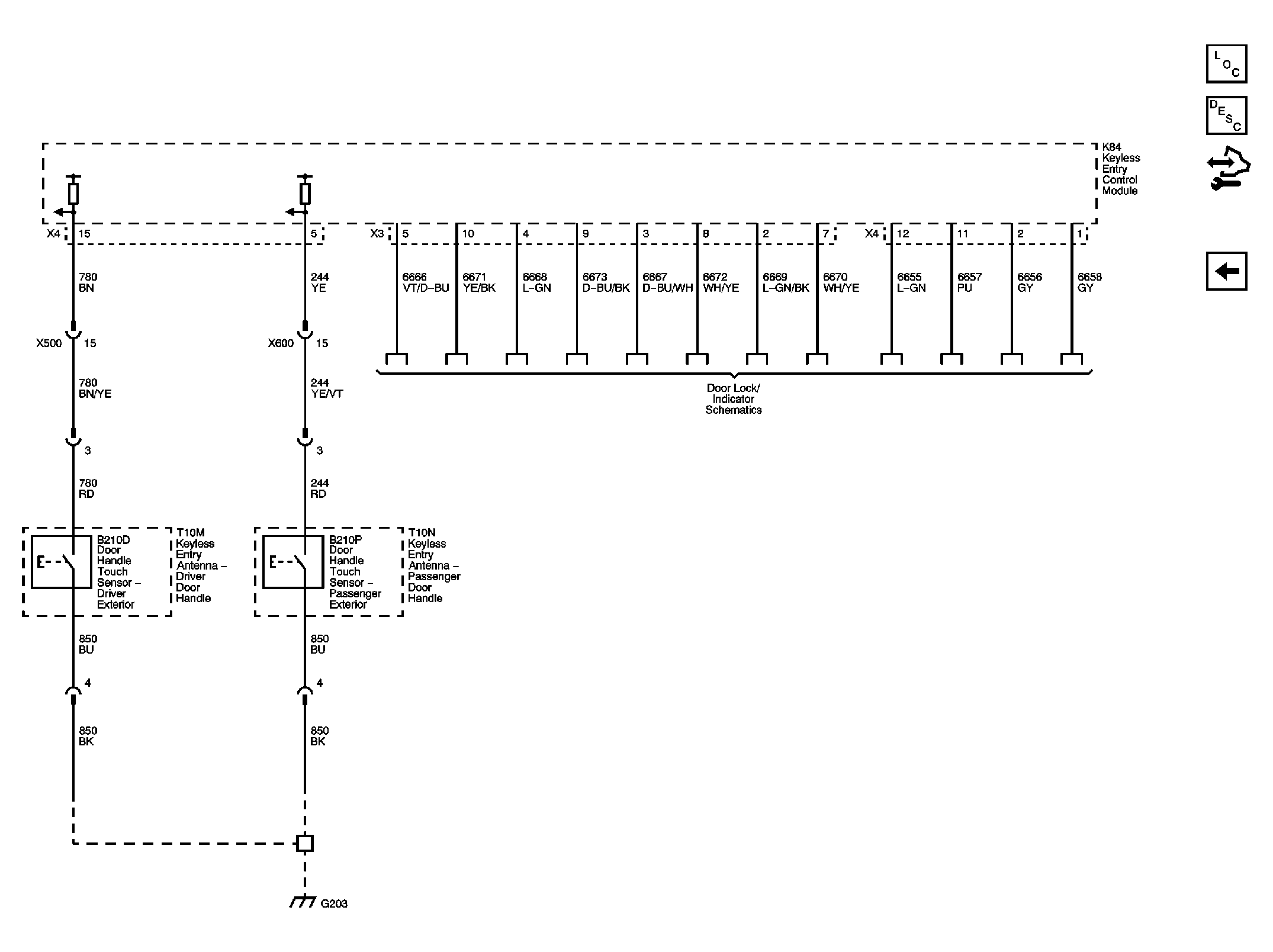

Fig 4: References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
