Central Control Module




Component Connector End Views

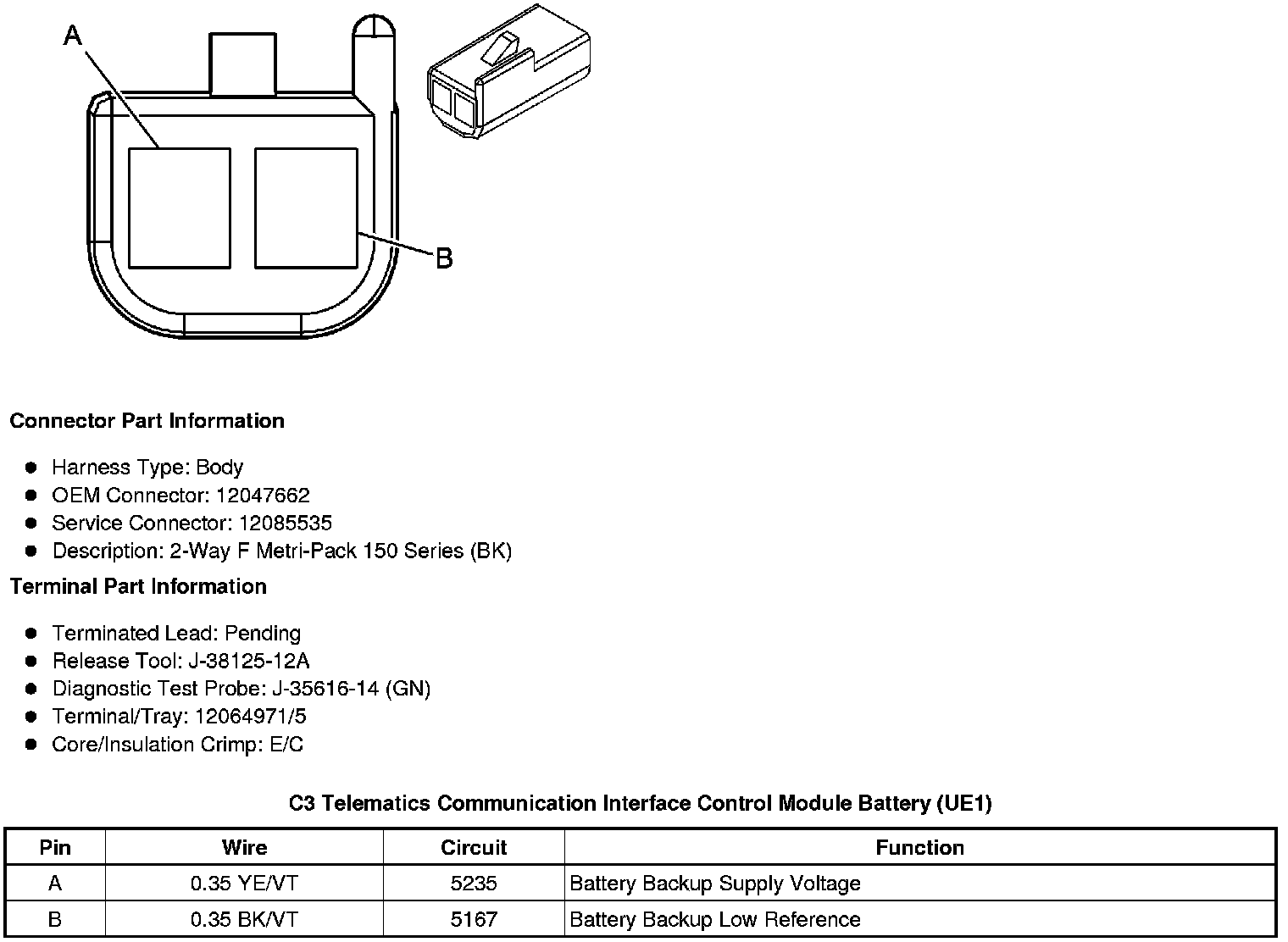

C3 Telematics Communication Interface Control Module Battery (UE1)

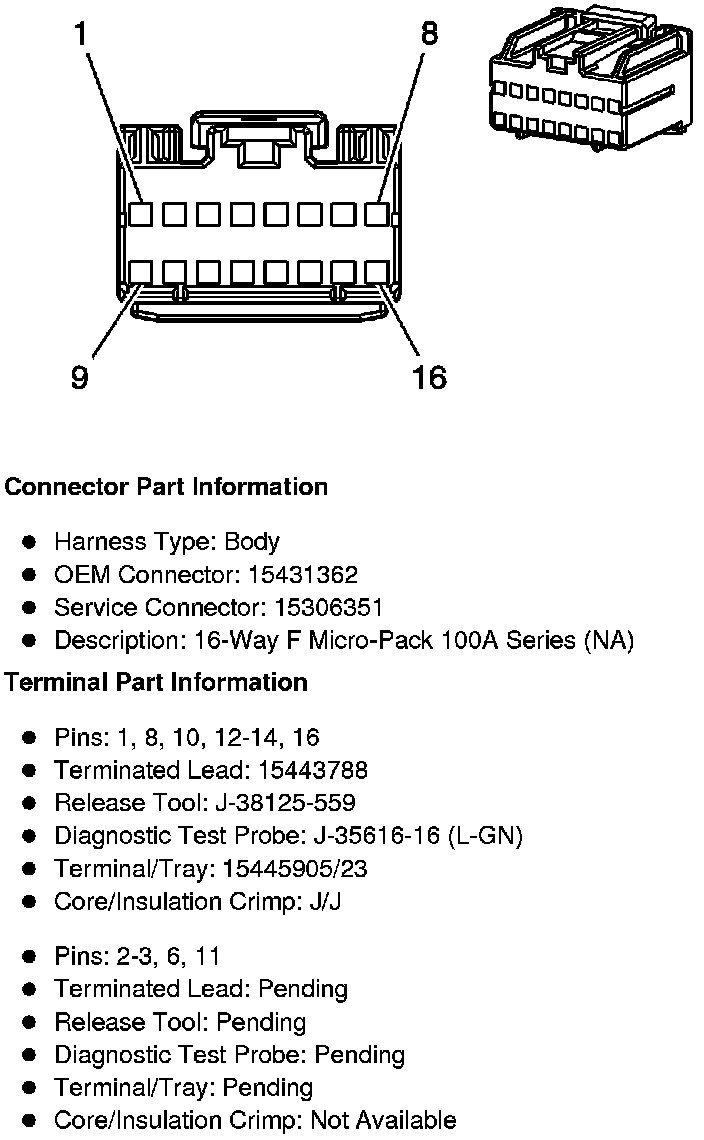

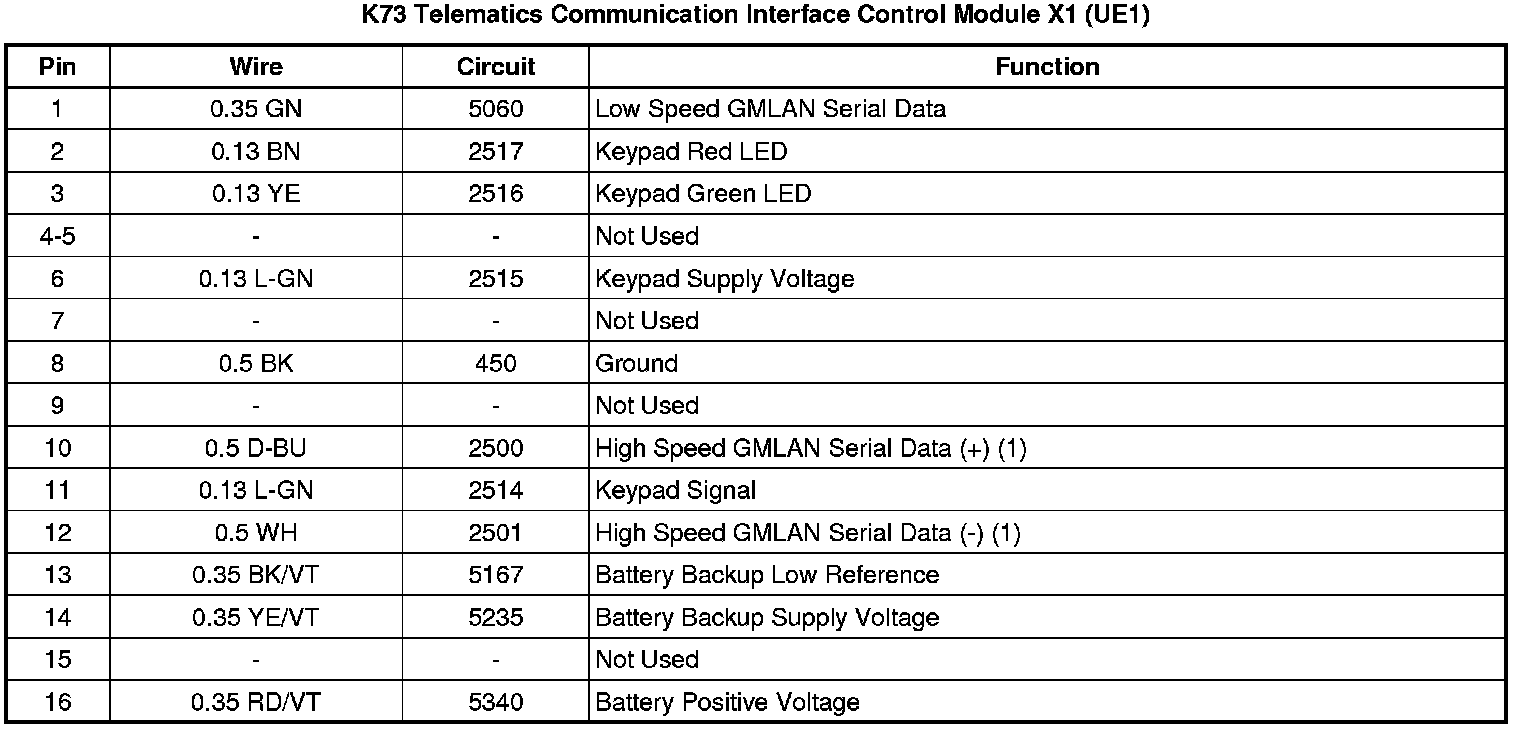

K73 Telematics Communication Interface Control Module X1 (UE1)

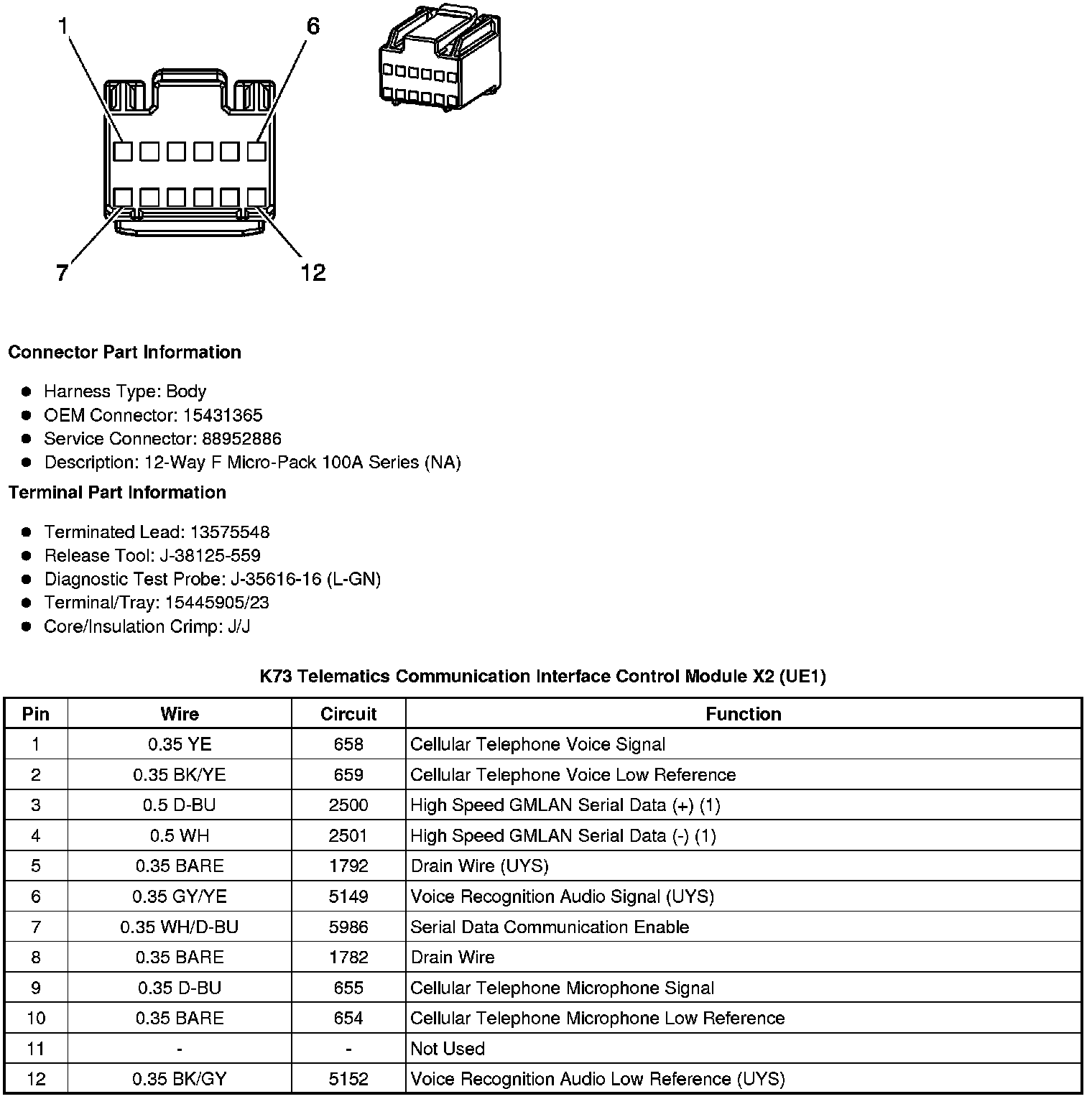

K73 Telematics Communication Interface Control Module X2 (UE1)
