Front of Vehicle Components (2 of 2)

Front of Vehicle Components (2 of 2)

Component Name Callout
Windshield Washer Fluid Container 1
Windshield Washer Fluid Pump 2
Windshield Washer Fluid Level Switch 3
Windshield Wiper Motor 4
Windshield Washer Fluid Container 5
Windshield Washer Solvent Heater (XA7) 6

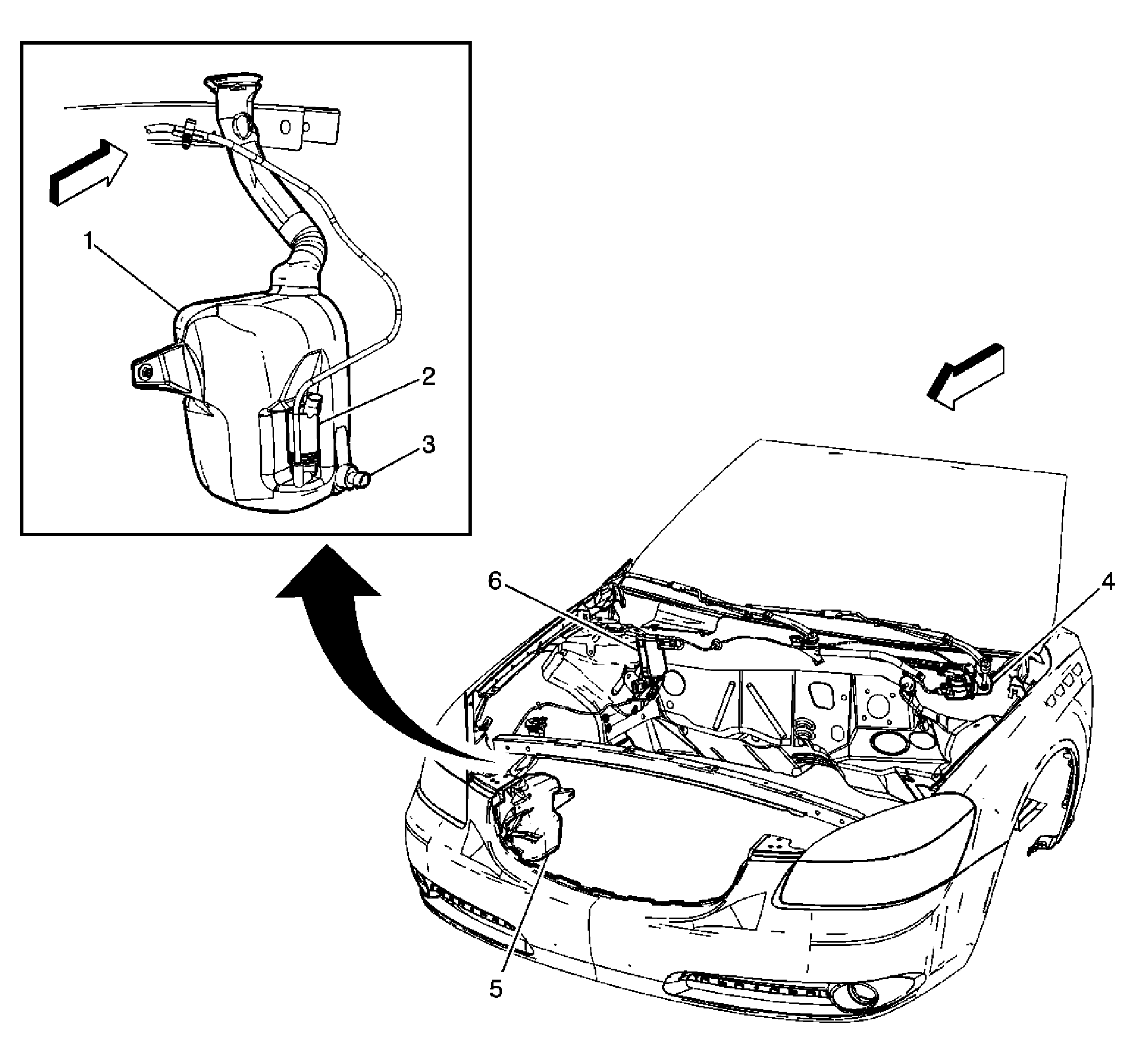

Fig 1: Identifying Wiper/Washer Components
GM1706953Courtesy of GENERAL MOTORS COMPANY
