Video System Schematics (SPO DVD Accessory)

WARNING: This page is about a different car, the 2010 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

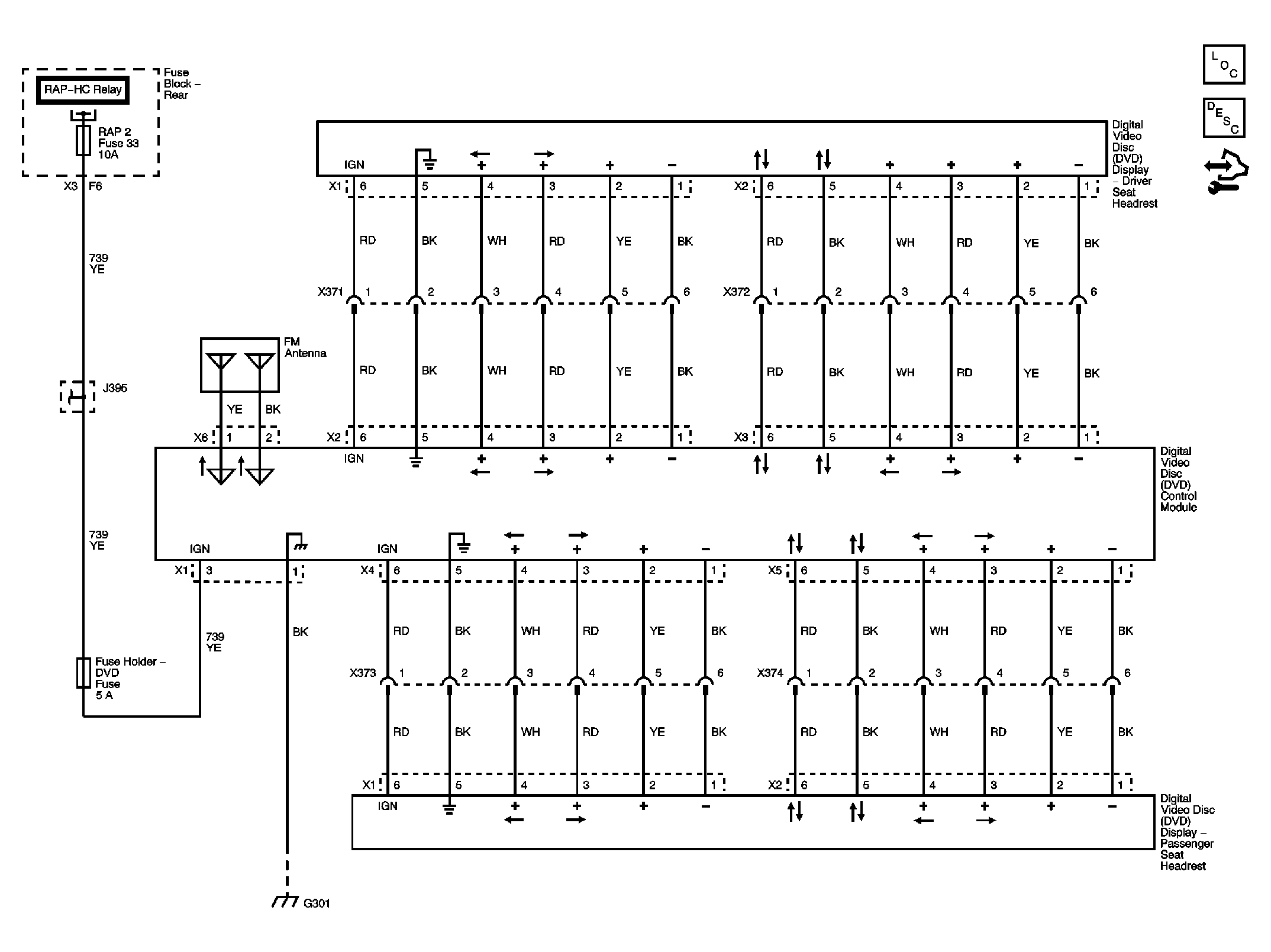

Fig 1: Video System (SPO DVD Accessory)
GM2292354Courtesy of GENERAL MOTORS CORP.
