Front of Engine Components (L37 2 of 2)

Front of Engine Components (L37 2 of 2)

Component Name Callout
Engine Cover- 4.6L 1
A/C Compressor Clutch 2
Generator 3
G110 4

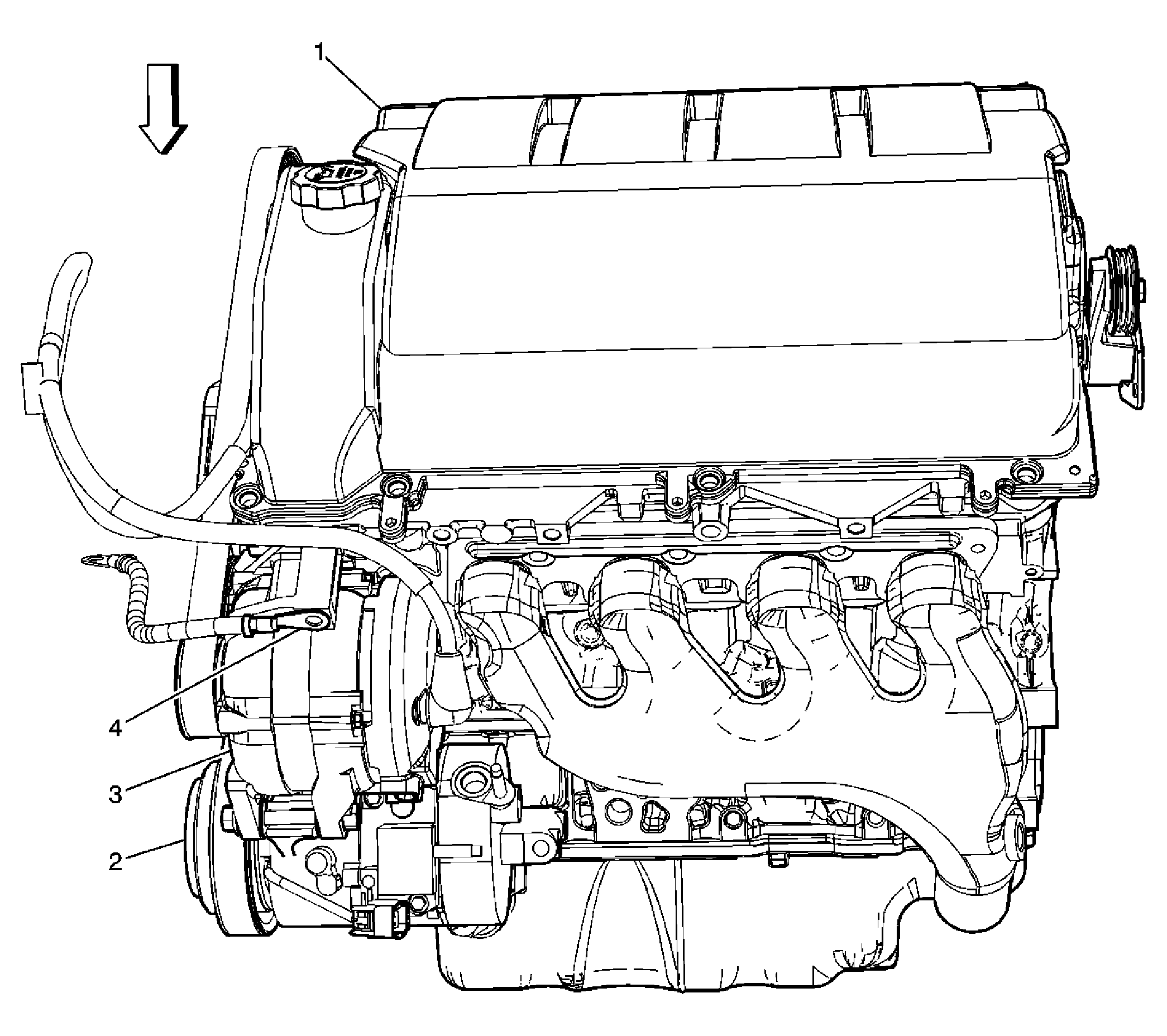

Fig 1: Left Side Of Engine (LD8/L37)
GM1978253Courtesy of GENERAL MOTORS COMPANY
