Engine Control Module




Component Connector End Views

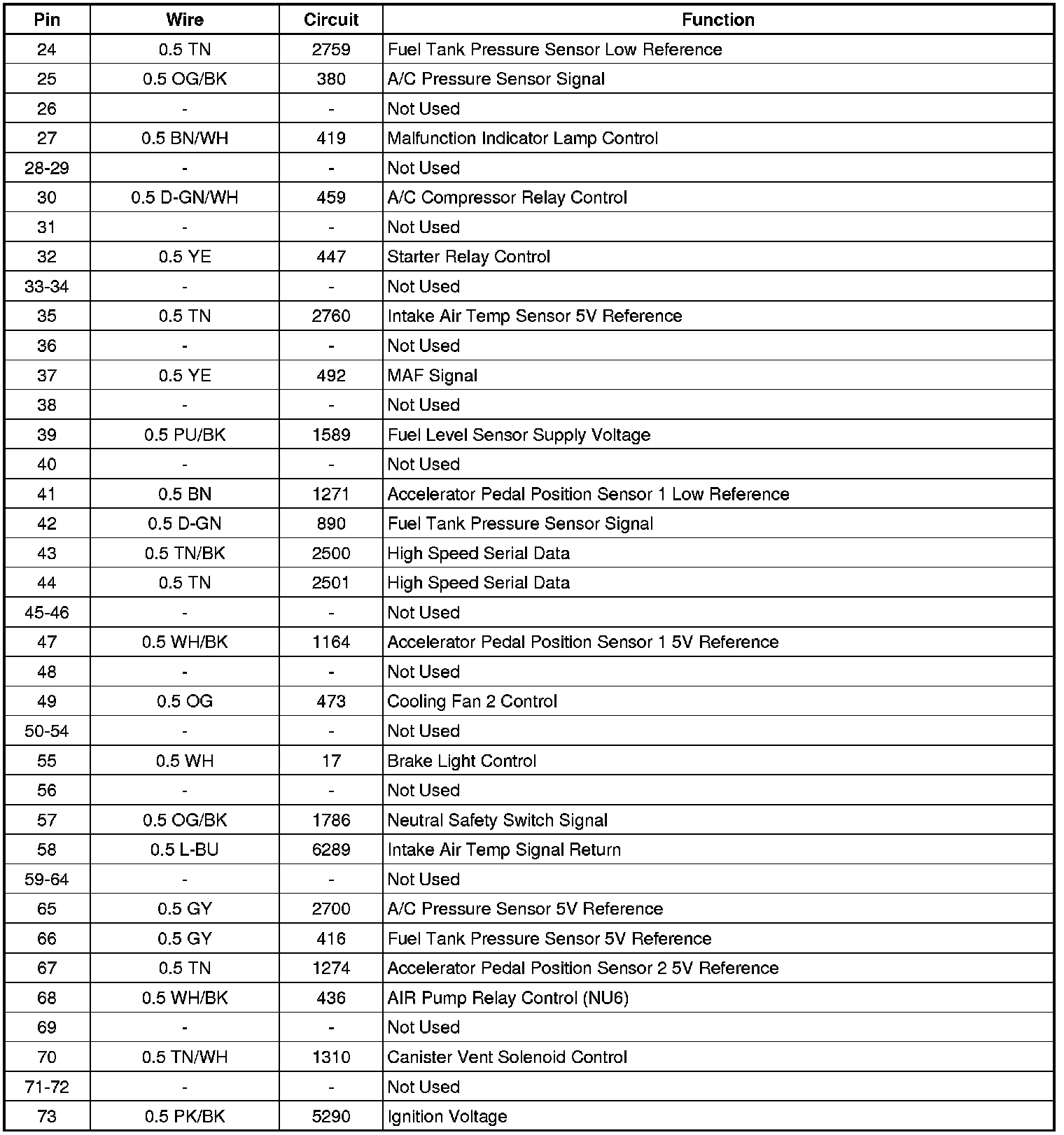

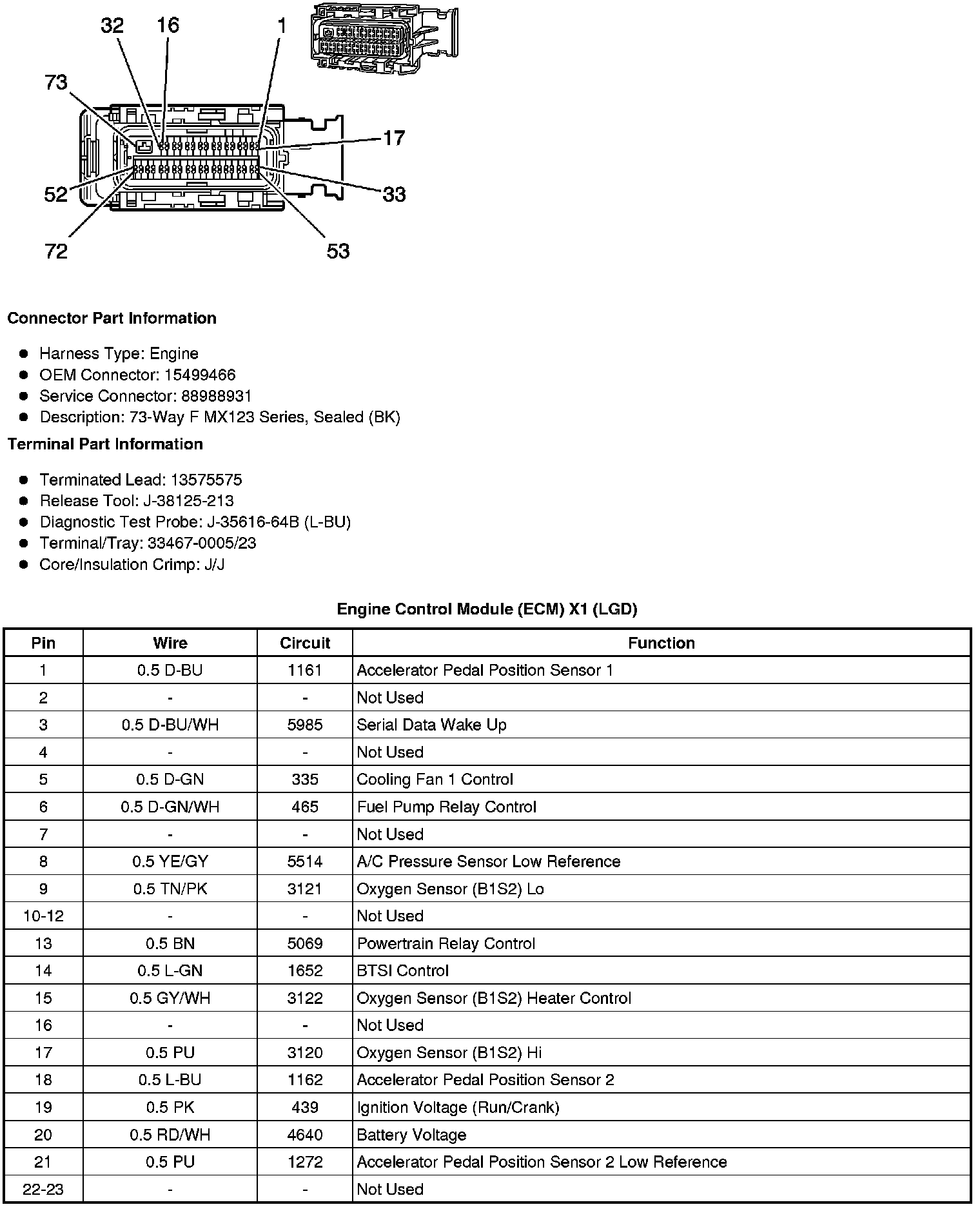

Engine Control Module (ECM) X1 (LGD)

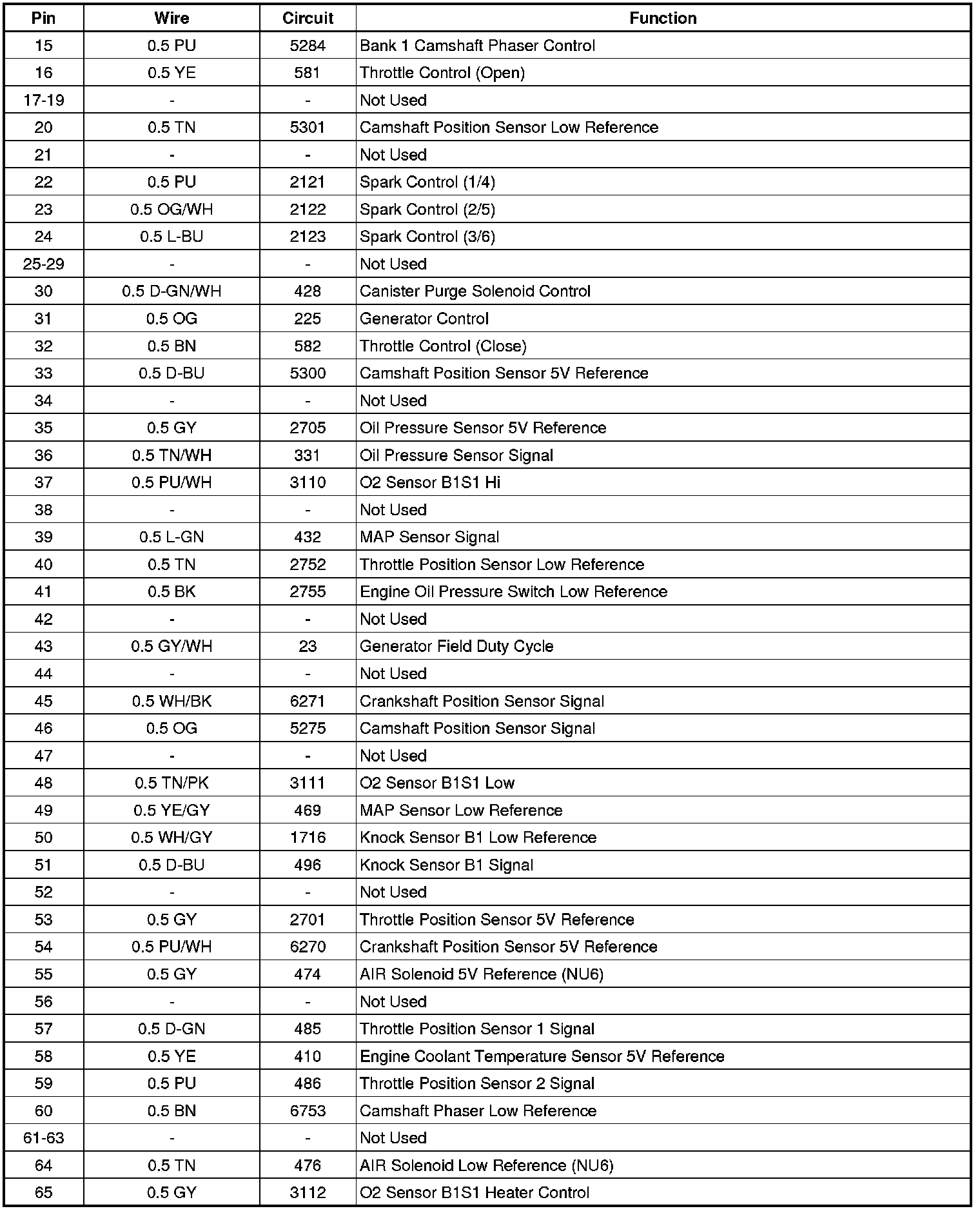

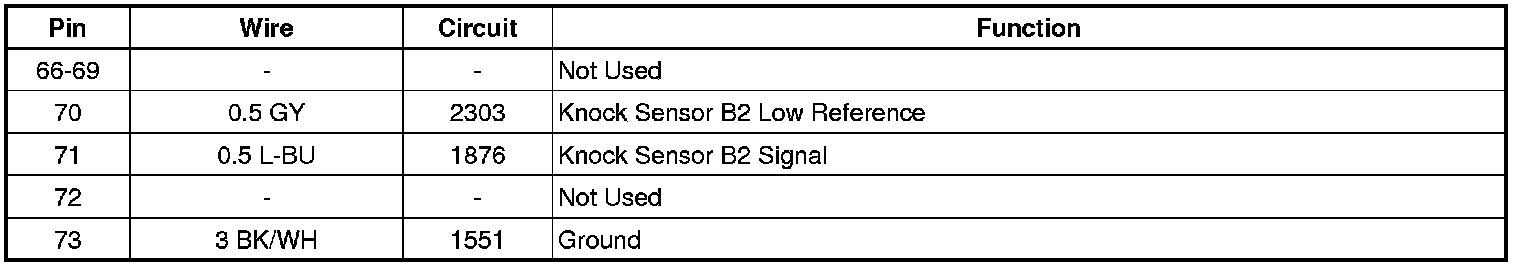

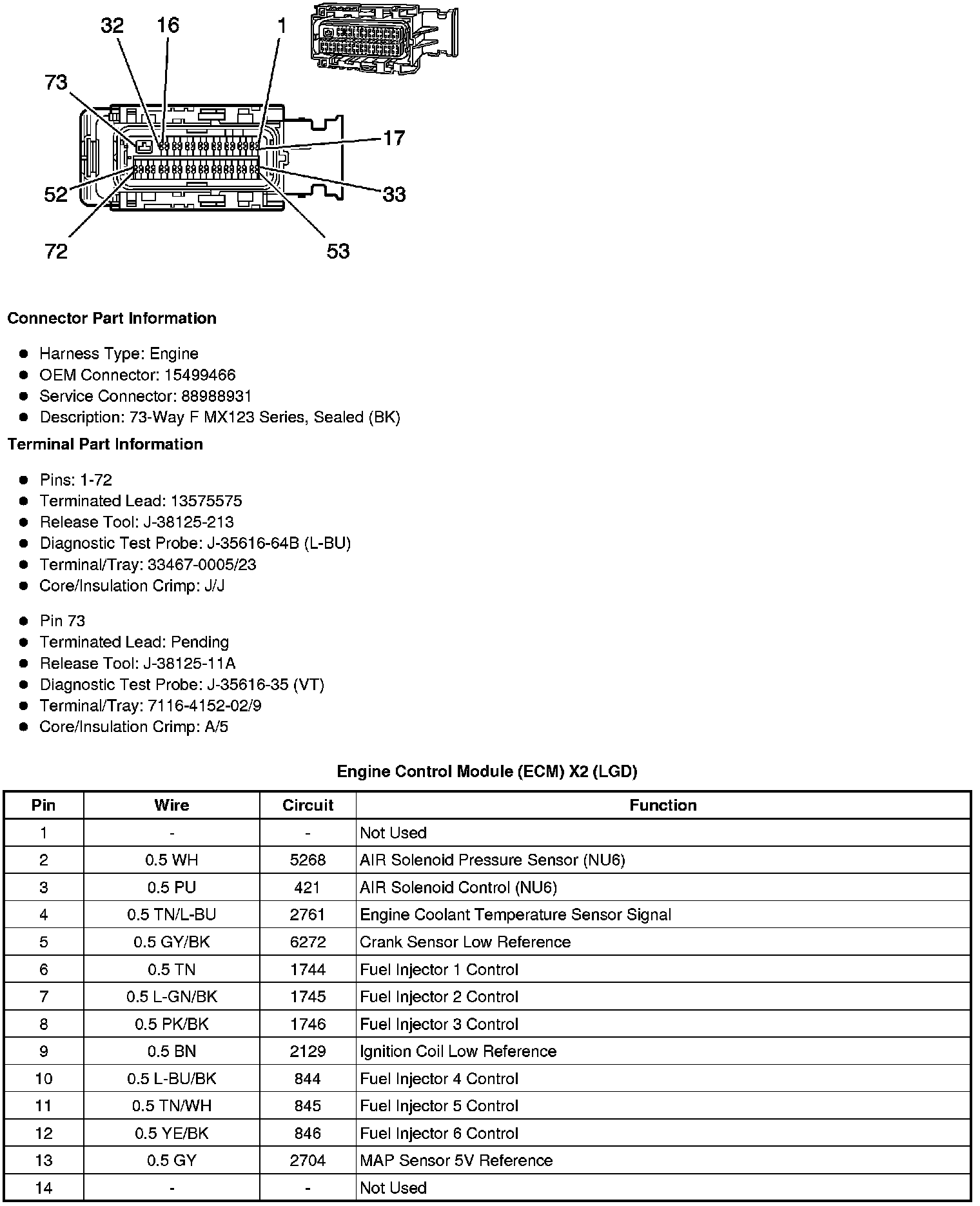

Engine Control Module (ECM) X2 (LGD)
