Suspension Control Module




Component Connector End Views

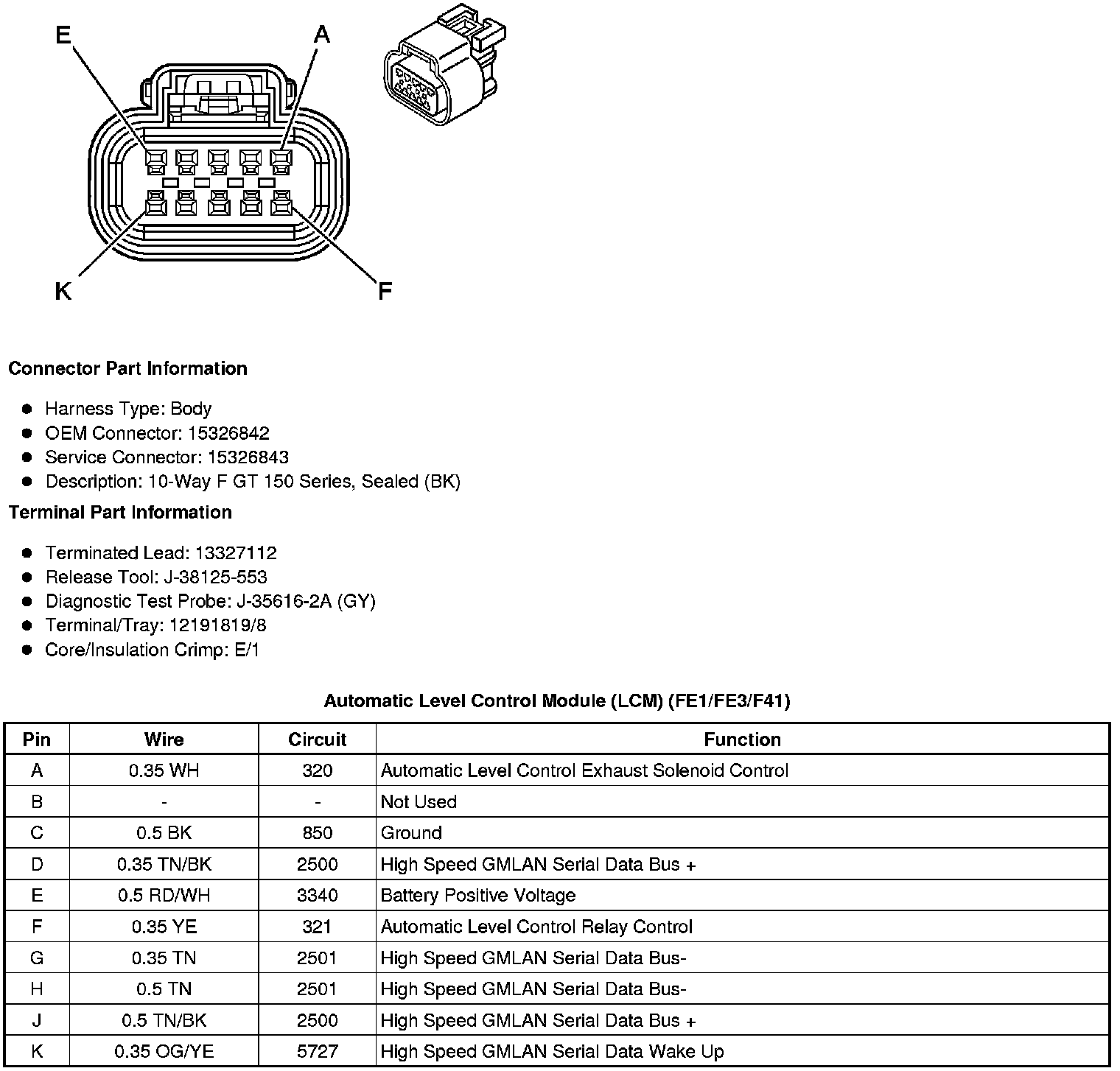

Automatic Level Control Module (LCM) (FE1/FE3/F41)

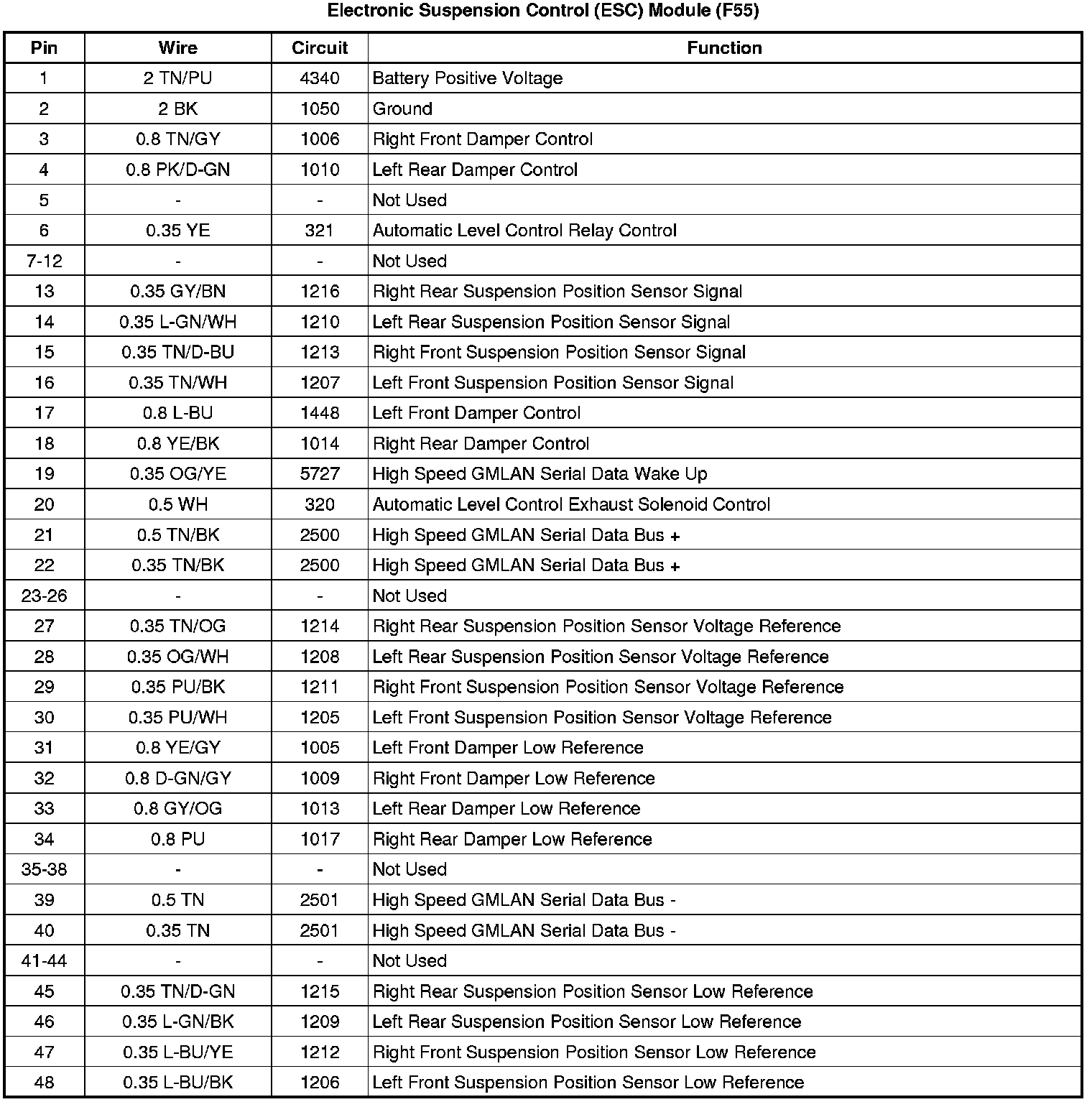

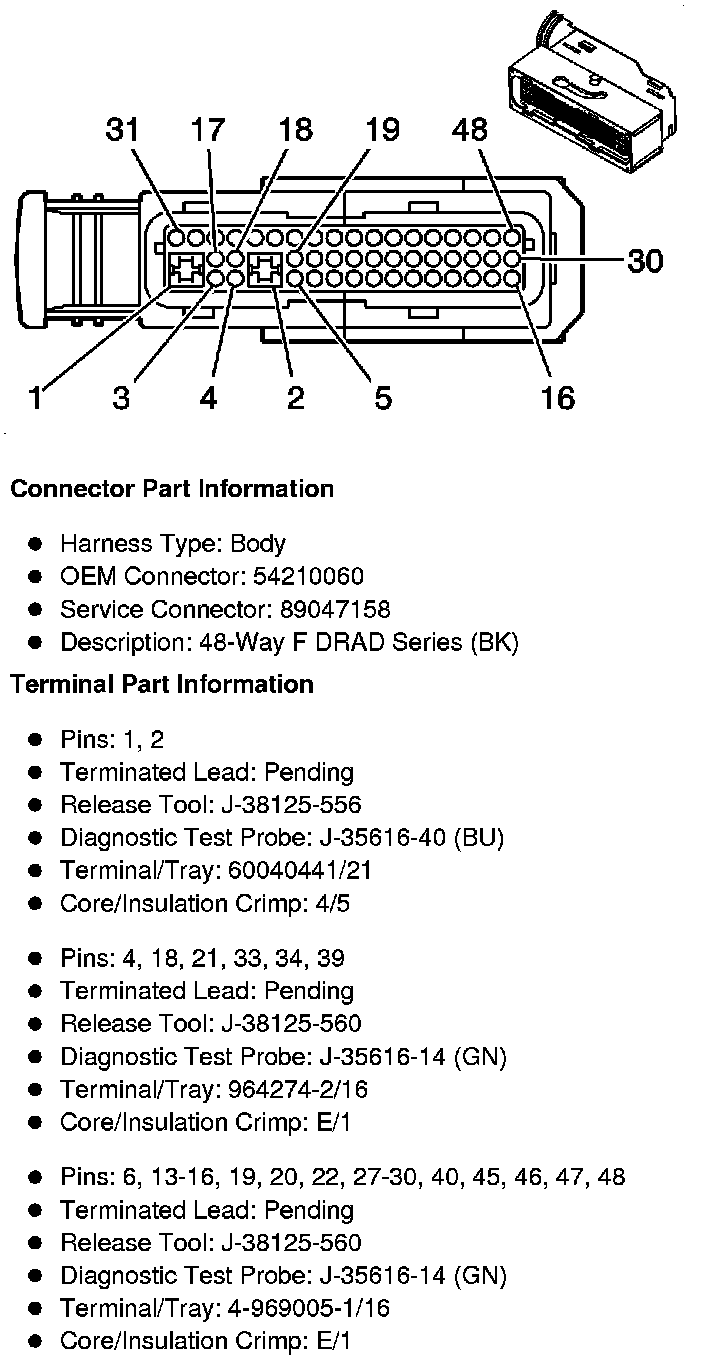

Electronic Suspension Control (ESC) Module (F55)
