Transmission Temperature Sensor/Switch, A/T




Component Connector End Views

Automatic Transmission Fluid Temperature Sensor (4T65-E)

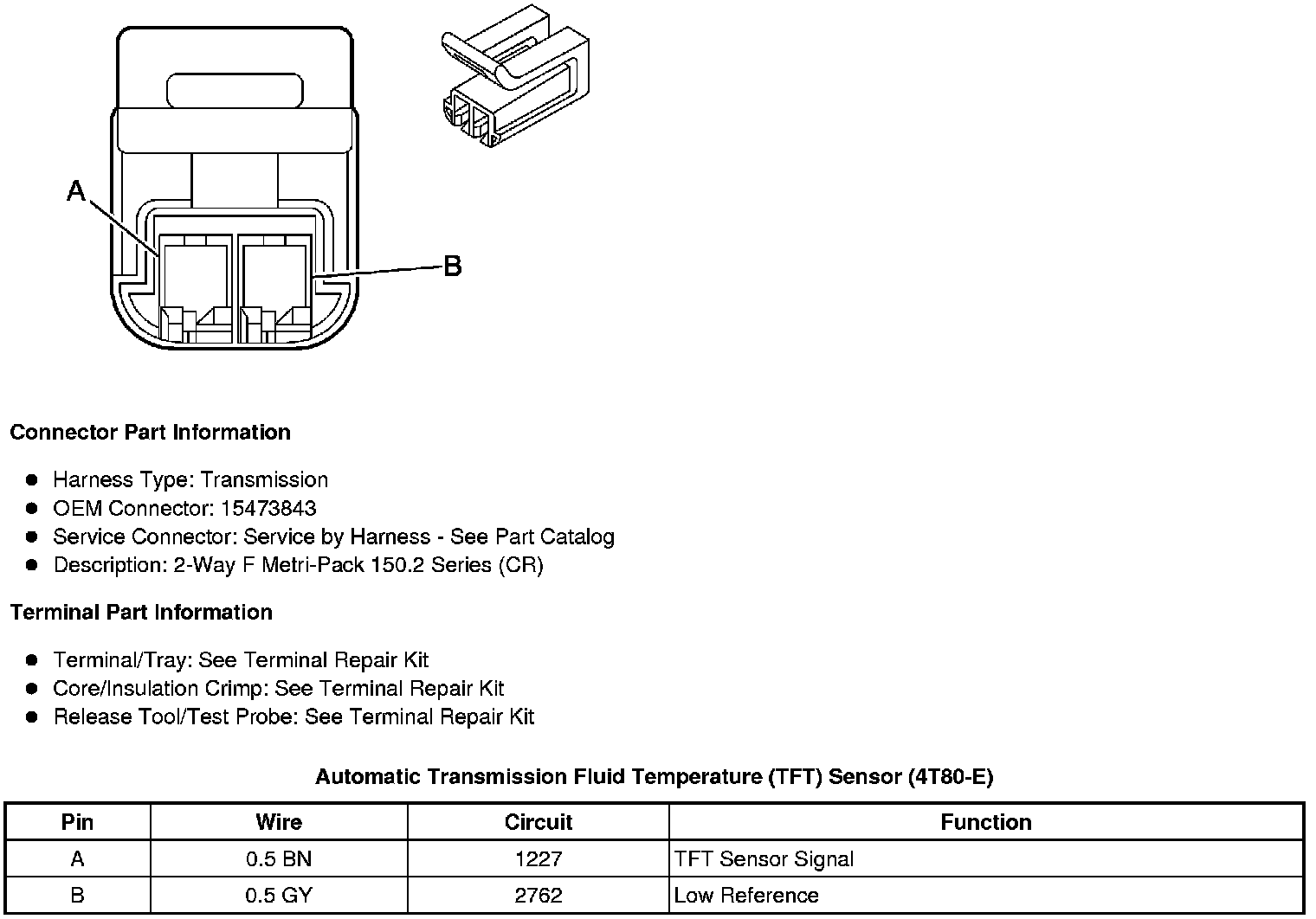

Automatic Transmission Fluid Temperature (TFT) Sensor (4T80-E)
