HVAC Module Components (CJ2)

Instrument Panel/Center Console Component Views

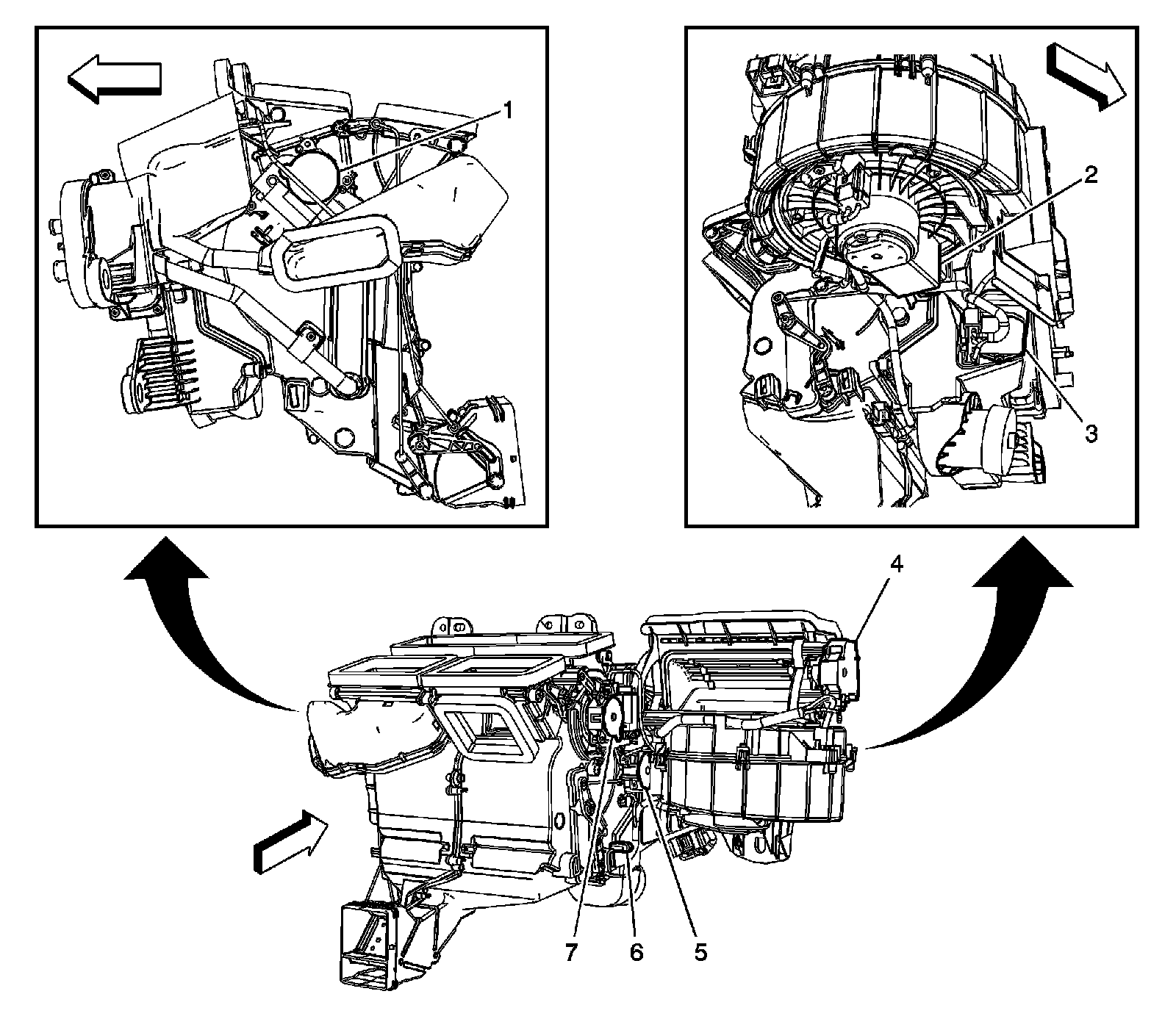

HVAC Module Components (CJ2)




1 - Air Temperature Actuator - Left (CJ4/CJ2)
2 - Blower Motor
3 - Blower Motor Control Module
4 - Recirculation Actuator
5 - Air Temperature Actuator - Front Right (CJ4/CJ2)
6 - EVAP Temperature Sensor
7 - Mode Actuator
