Steering Wheel Assembly Components

Instrument Panel/Center Console Component Views

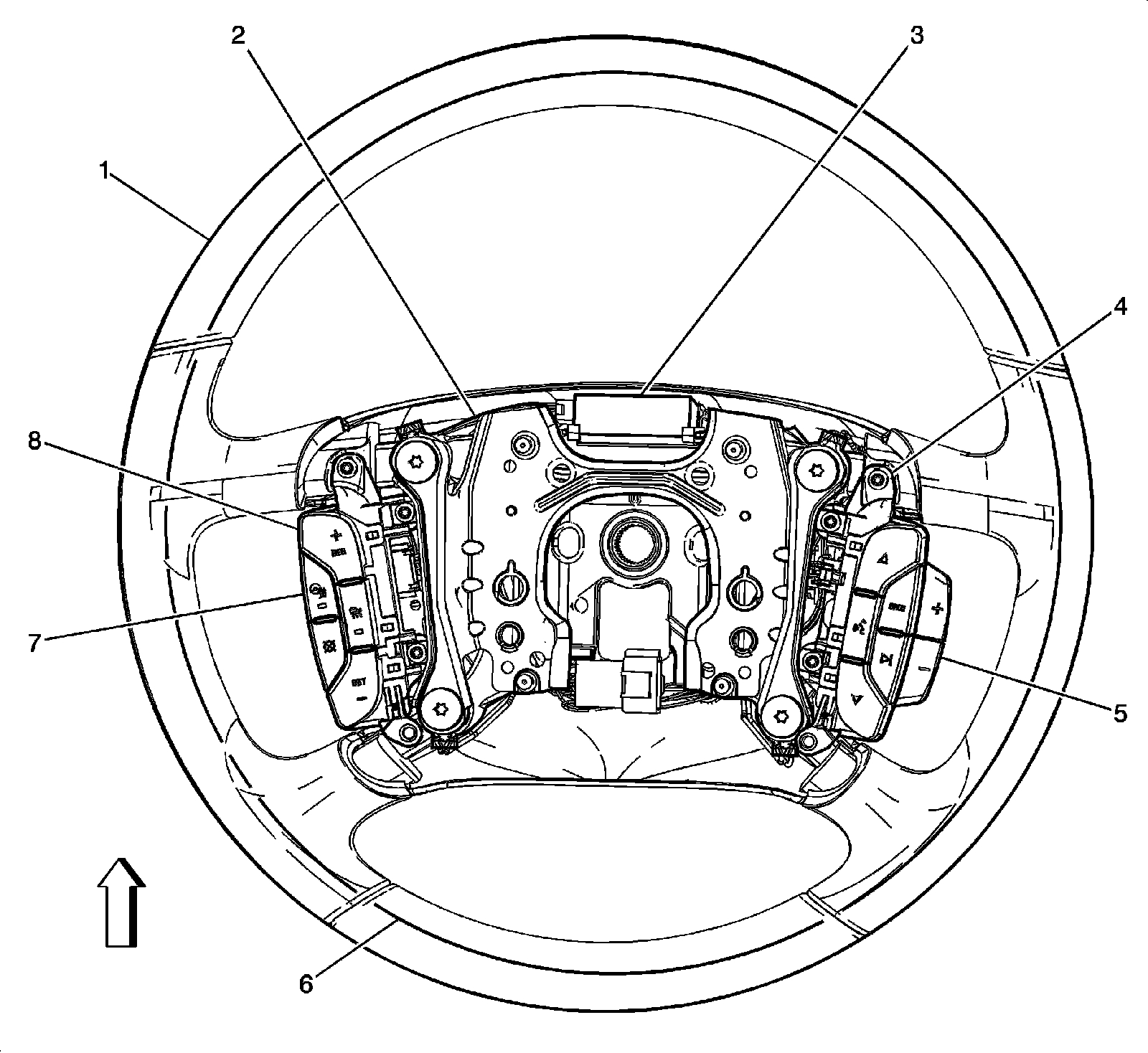

Steering Wheel Assembly Components




1 - Heated Steering Wheel Element - Left (NR7/NSH)
2 - Horn Switch
3 - Heated Steering Wheel Module (NR7/NSH)
4 - Steering Wheel Control Switch - Right
5 - Radio Volume Switch
6 - Heated Steering Wheel Element (NR7/NSH)
7 - Heated Steering Wheel Switch (NR7/NSH)
8 - Cruise Control Switch
