Rear Toe Adjustment

Rear Toe Adjustment





Note: Complete the left and right rear toe adjustments separately, per wheel. Use the following procedure.

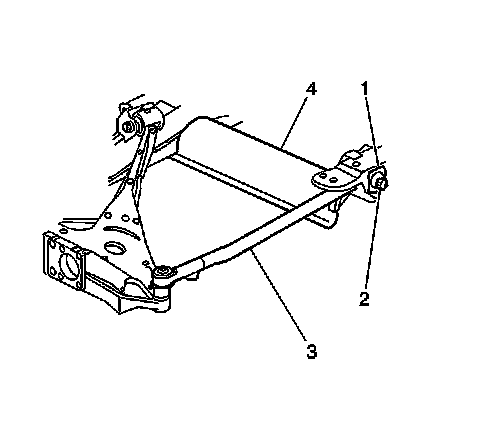

1. Loosen the inner adjustment link cam nut.

Caution: Refer to Fastener Caution (Fastener Caution).

2. In order to adjust the toe, rotate the cam bolt. Refer to Fastener Tightening Specifications (Fastener Tightening Specifications).

Tighten the cam nut (2) to 91 Nm (67 lb ft).

3. Recheck the toe setting after tightening.
4. Readjust the toe setting if necessary. Refer to Wheel Alignment Specifications (Wheel Alignment Specifications).
