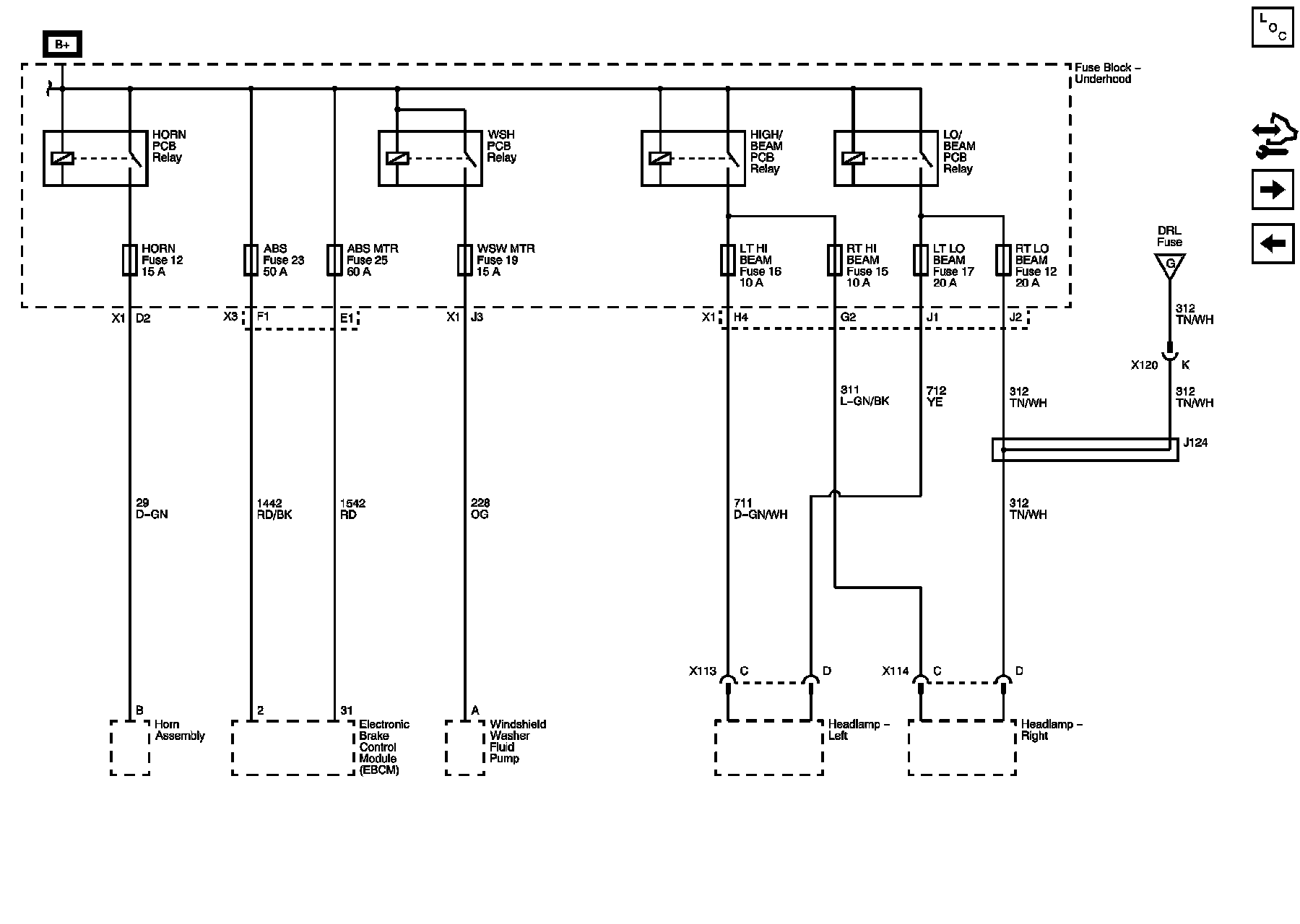

Power Distribution Schematic 3




Power Distribution Schematics

ABS, ABS MTR, HORN, LT HI BEAM, LT LO BEAM, RT HI BEAM, RT LO BEAM, WSW MTR Fuses
