Accelerator Pedal Position Sensor: Locations

Passenger Compartment/Roof Component Views

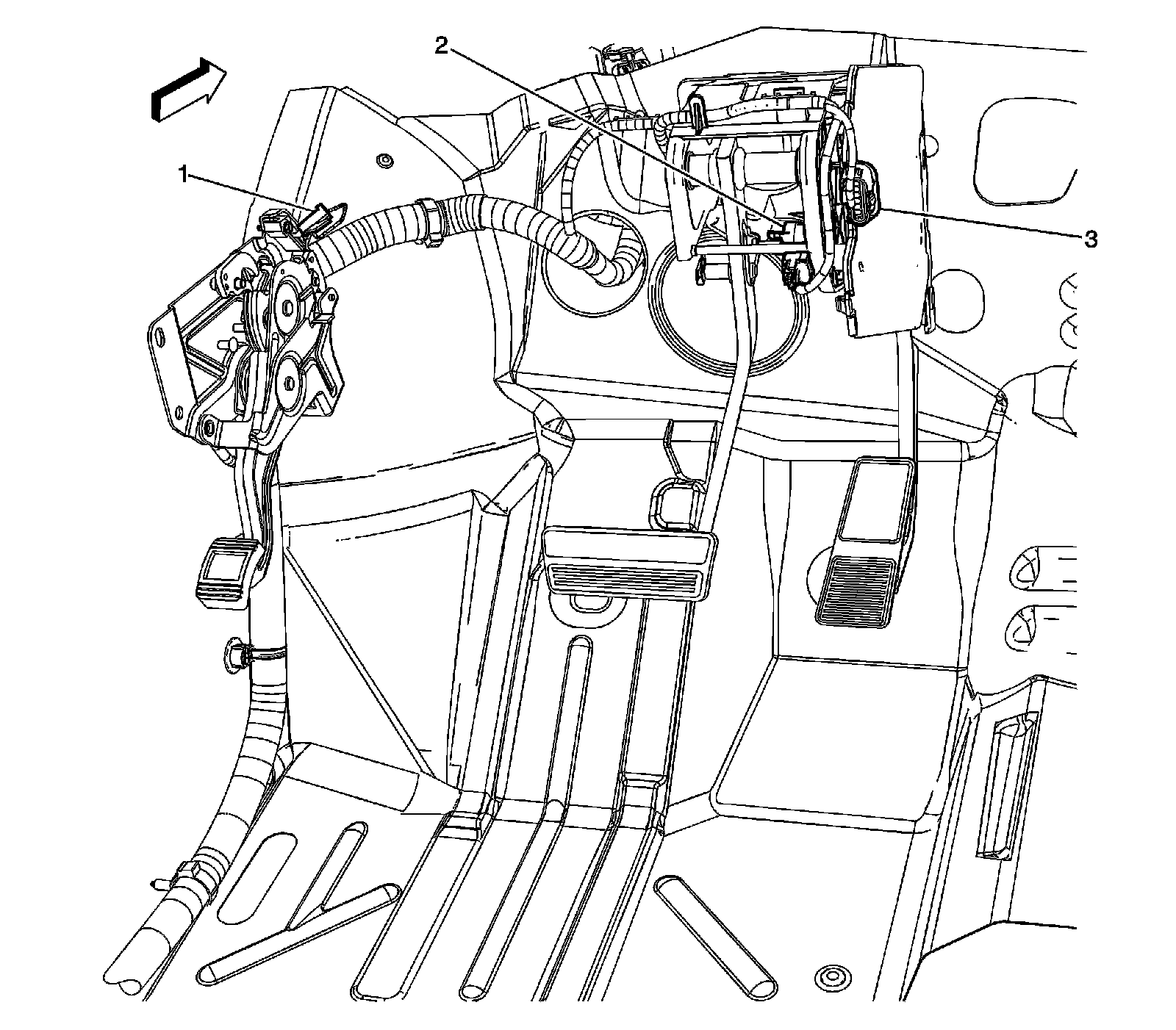

Left Front of Passenger Compartment Components (2 of 2)




1 - Park Brake Switch
2 - Brake Pedal Position (BPP) Sensor
3 - Accelerator Pedal Position (APP) Sensor
