Data Link Connector: Locations

Instrument Panel/Center Console Component Views

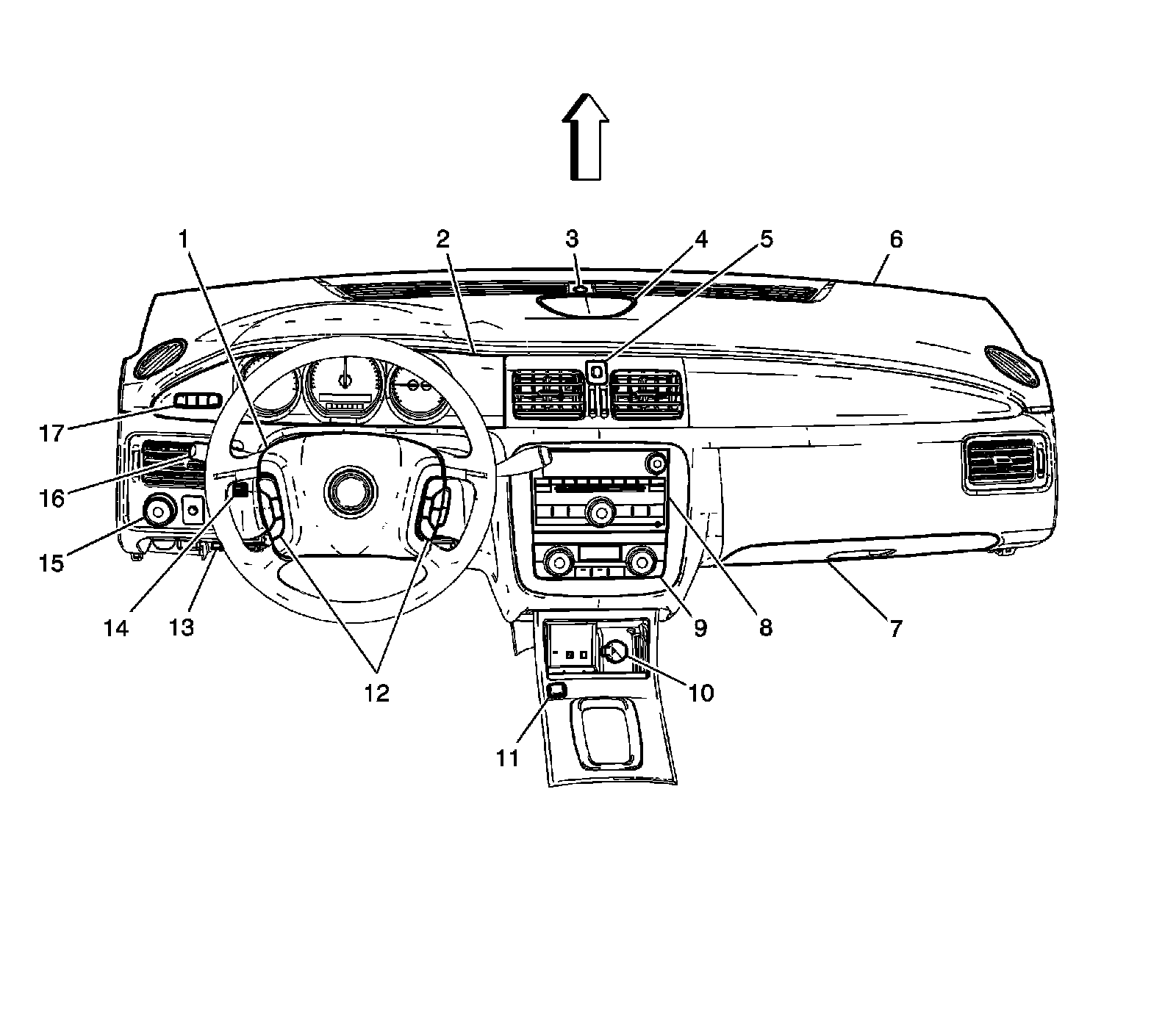

Front of Passenger Compartment Components - I/P (1 of 2)




1 - Inflatable Restraint Steering Wheel Module
2 - Instrument Panel Cluster (IPC)
3 - Ambient Light Sunload Sensor (CJ2)/Ambient Light Sensor (C67)
4 - Speaker - Front Center (UQA)
5 - Hazard Switch
6 - Inflatable Restraint I/P Module
7 - I/P Compartment Lamp
8 - Radio
9 - HVAC Control Module
10 - Auxiliary Power Outlet - Console (A51)
11 - Traction Control Switch (TCS) (A51)
12 - Steering Wheel Controls
13 - Data Link Connector (DLC)
14 - Air Temperature Sensor - Inside (CJ2)
15 - Headlamp Switch
16 - Turn Signal/Multifunction Switch
17 - Driver Information Display Switch
