Ignition Control Module: Locations

Powertrain Component Views

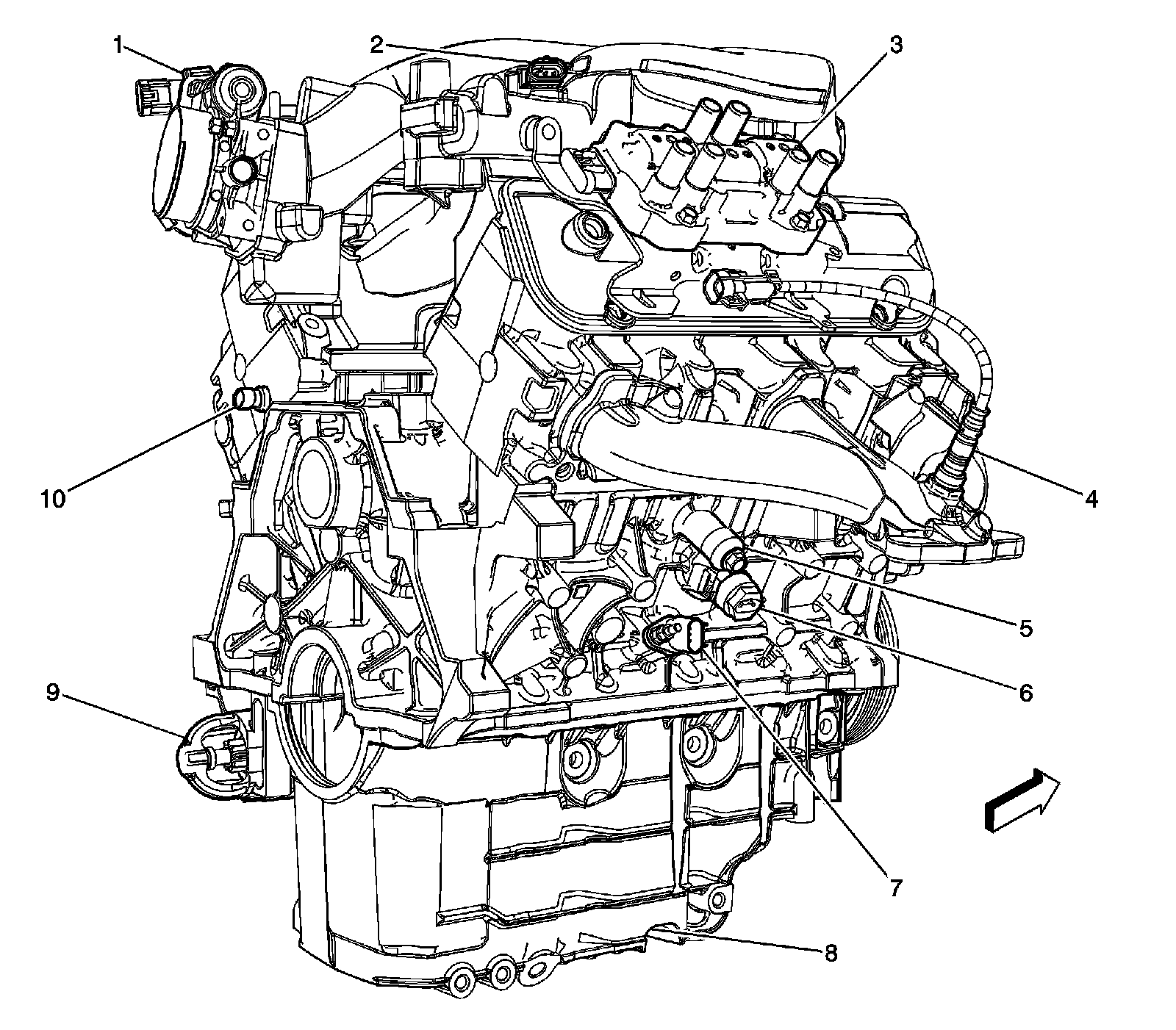

Left Side and Rear of Engine Components (LZ9 or LGD)




1 - Throttle Body
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Ignition Control Module (ICM)
4 - Heated Oxygen Sensor (HO2S)
5 - Knock Sensor (KS) 1
6 - Block Heater
7 - Crankshaft Position (CKP) Sensor
8 - Engine Oil Level Sensor
9 - Starter Motor
10 - Engine Coolant Temperature (ECT) Sensor
