Control Module HVAC
Component Connector End Views

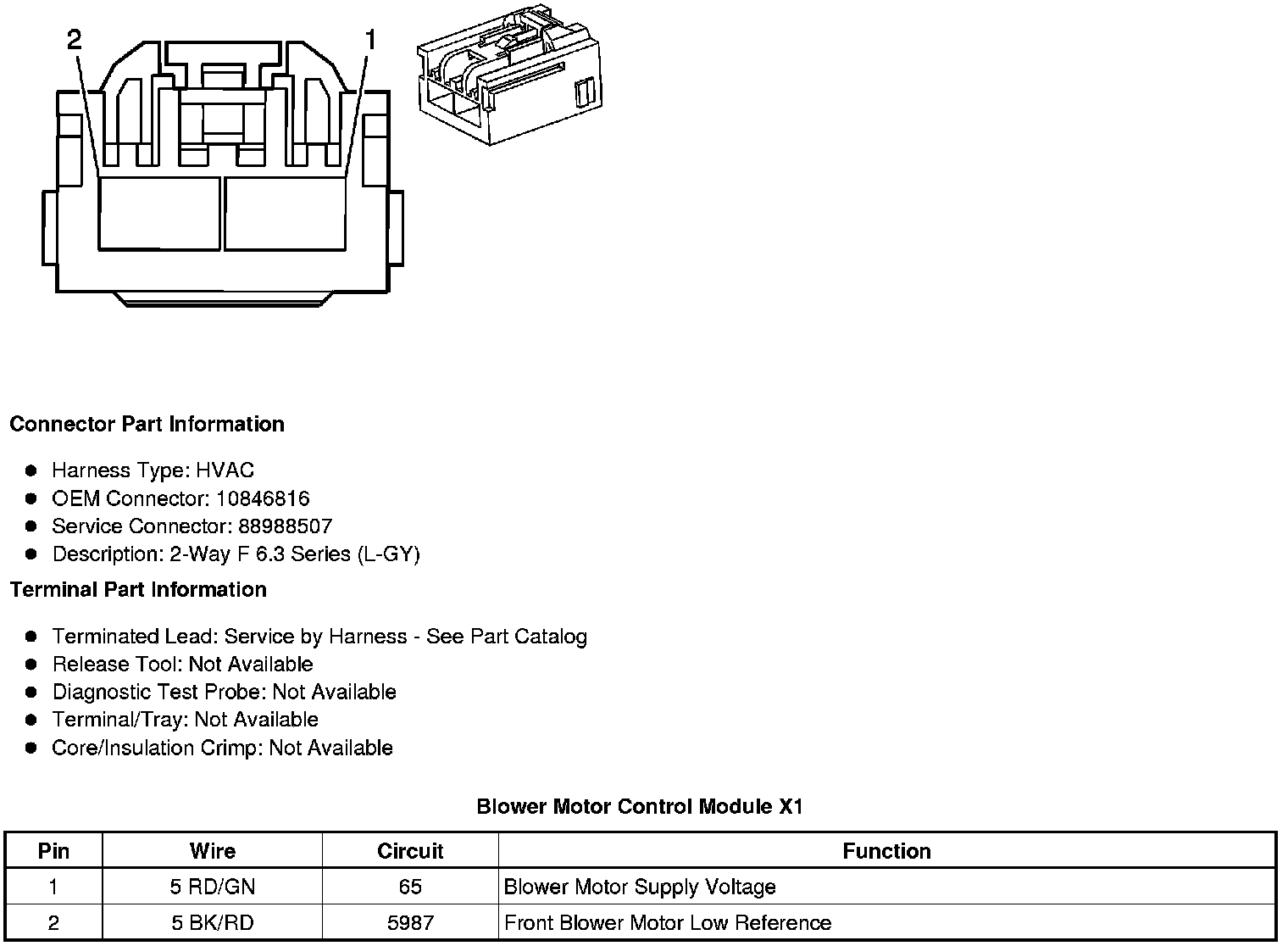

Blower Motor Control Module X1

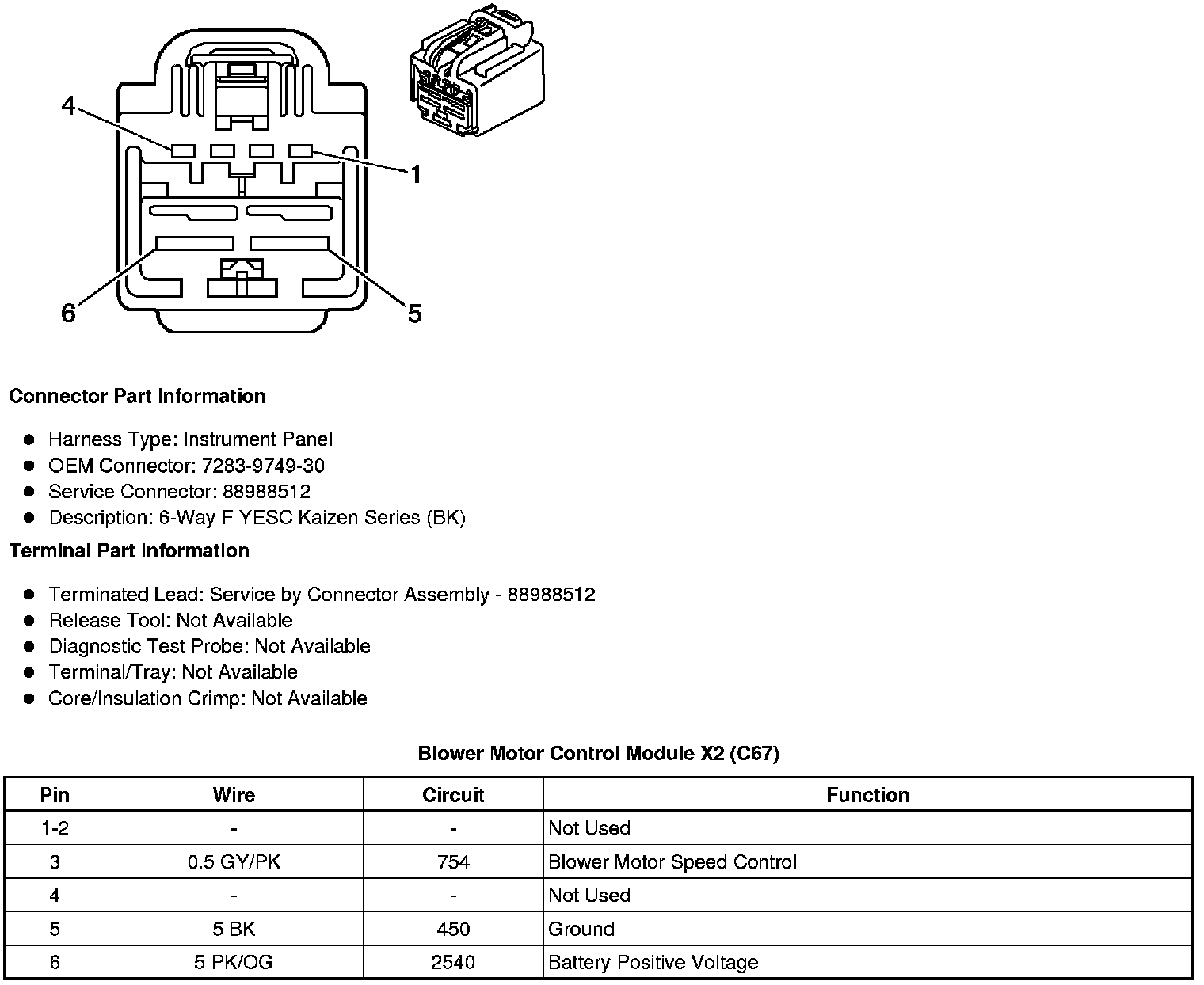

Blower Motor Control Module X2 (C67)
Blower Motor Control Module X2 (CJ2)
Component Connector End Views
Blower Motor Control Module X1
Blower Motor Control Module X2 (C67)
Blower Motor Control Module X2 (CJ2)
