Map Light




Component Connector End Views

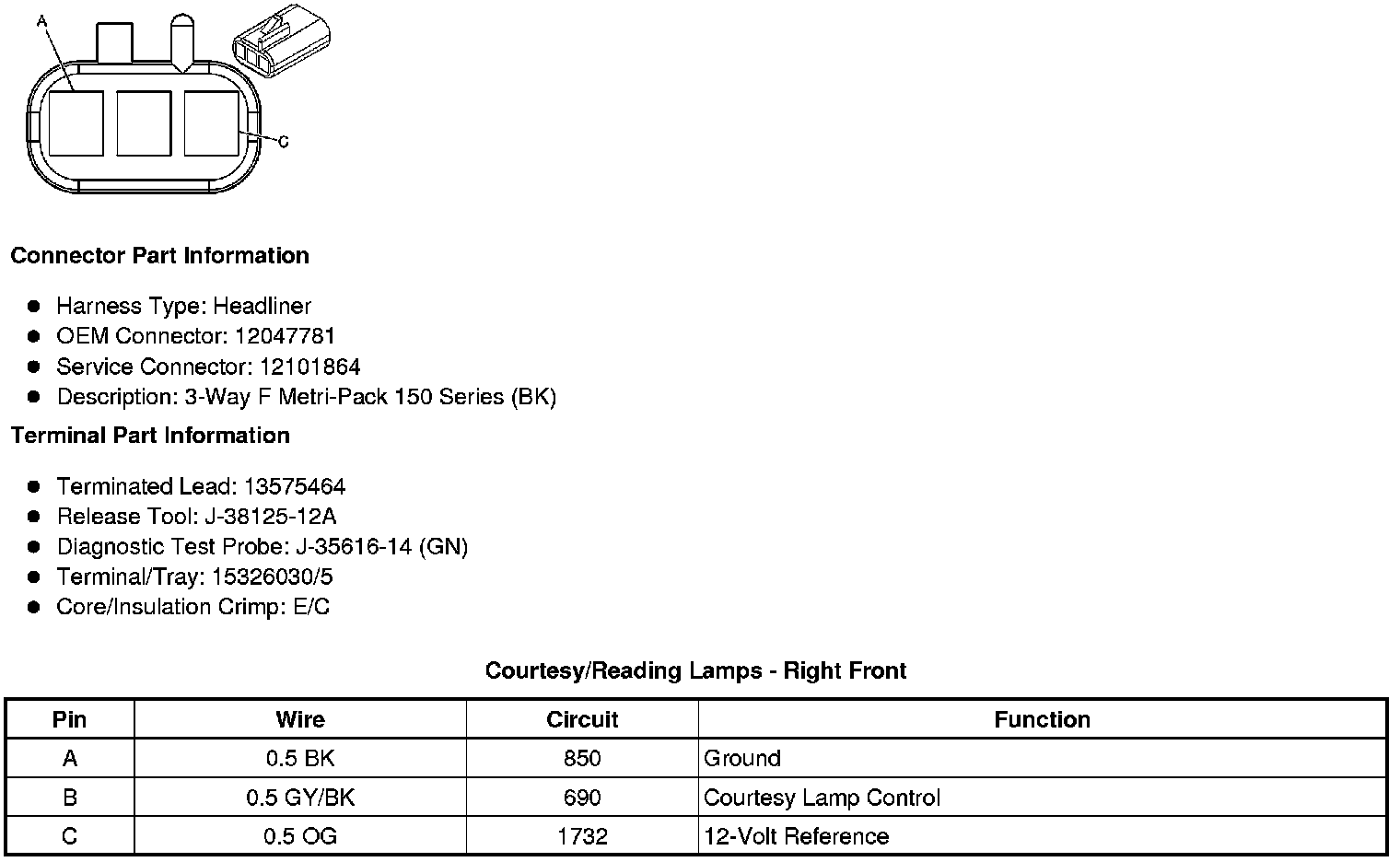

Courtesy/Reading Lamps - Right Front

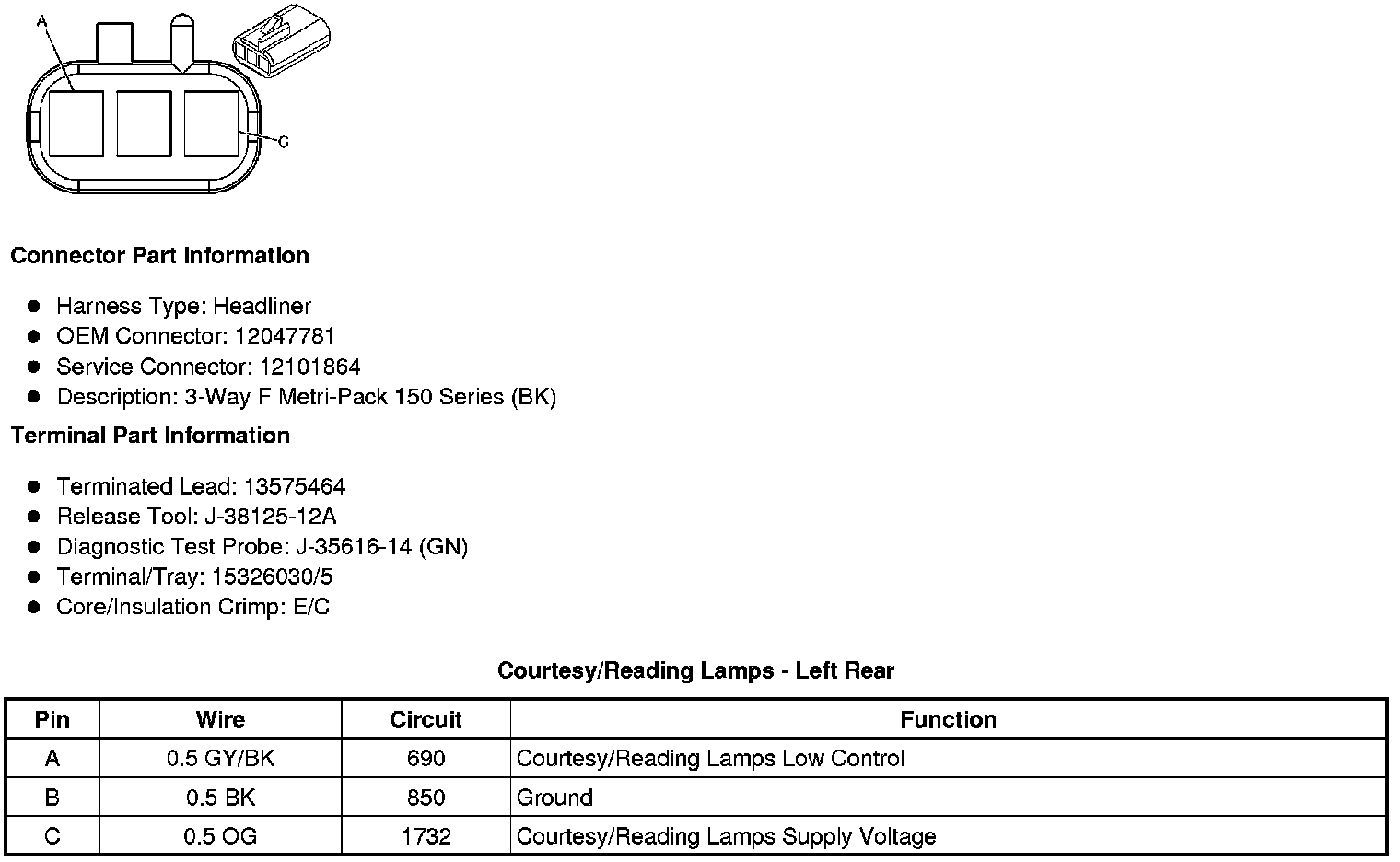

Courtesy/Reading Lamps - Left Rear

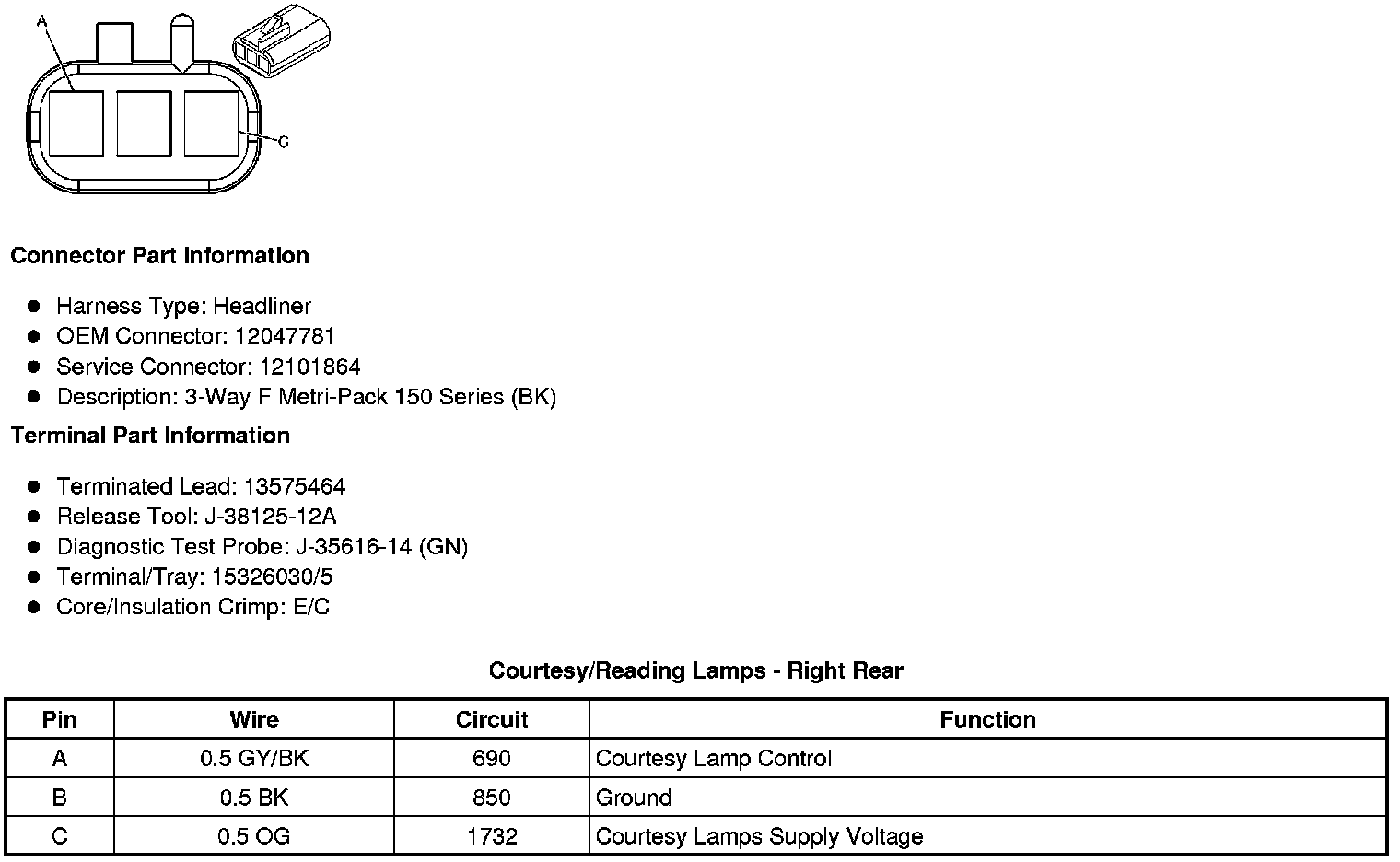

Courtesy/Reading Lamps - Right Rear

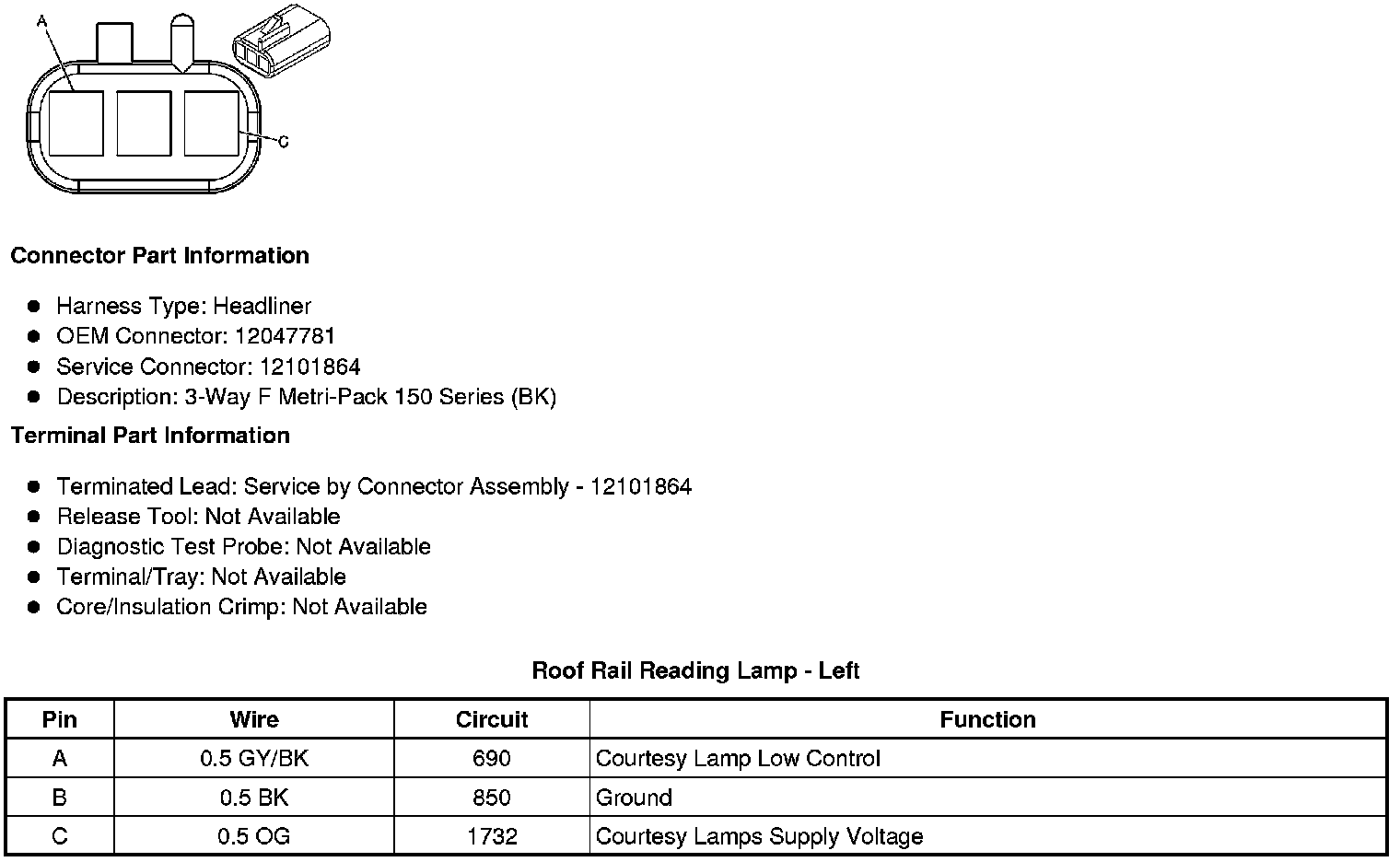

Roof Rail Reading Lamp - Left

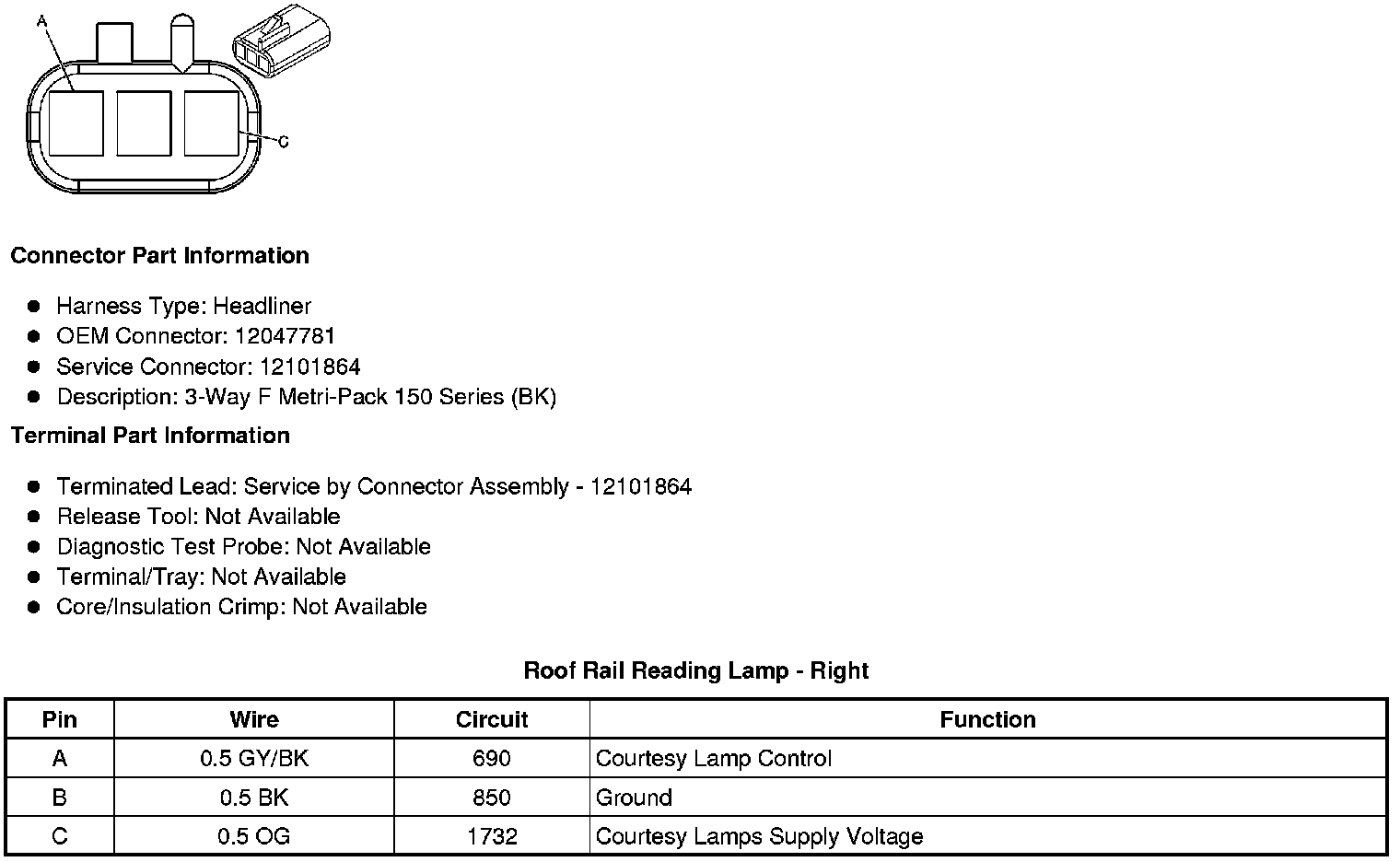

Roof Rail Reading Lamp - Right
