Front of Engine Components

Powertrain Component Views

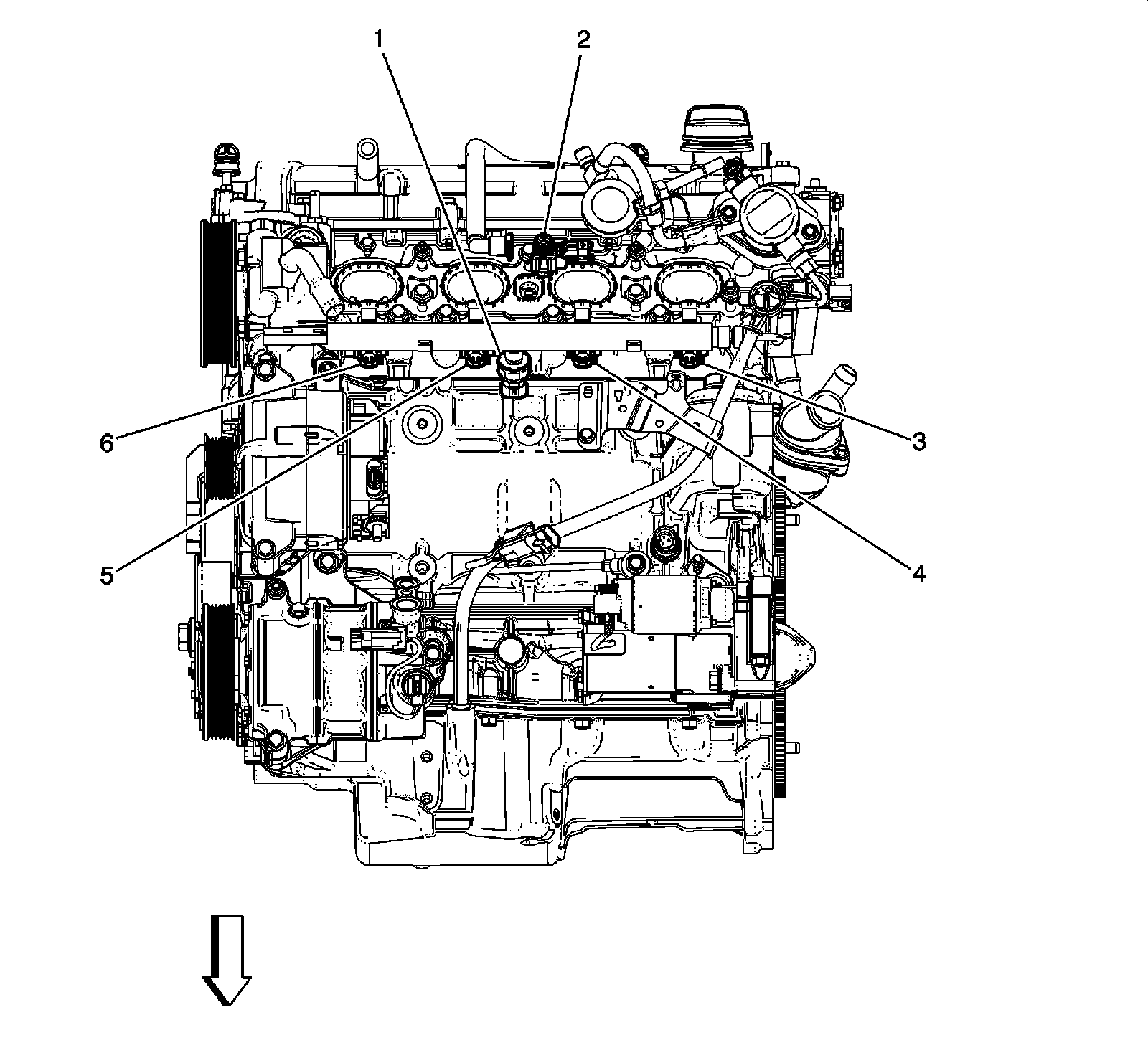

Front of Engine Components (LAF 2 of 2)




1 - B47B Fuel Rail Pressure Sensor
2 - B74 Manifold Absolute Pressure Sensor
3 - Q17D Fuel Injector 4
4 - Q17C Fuel Injector 3
5 - Q17B Fuel Injector 2
6 - Q17A Fuel Injector 1
