Keyless Entry Control Module X2 (BTM)

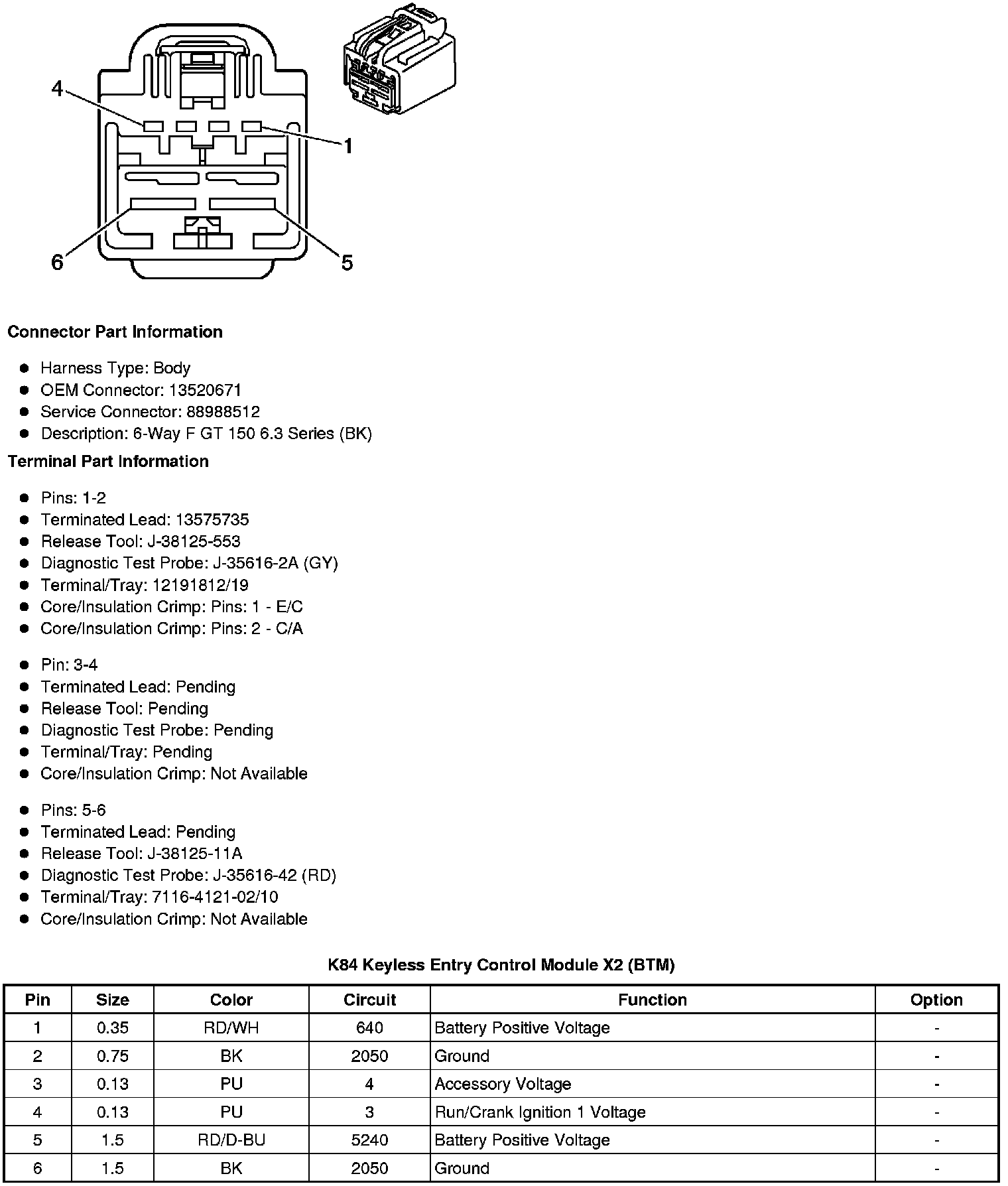

Component Connector End Views

K84 Keyless Entry Control Module X2 (BTM)
