Power Seat Control Module: Locations

Passenger Compartment/Roof Component Views

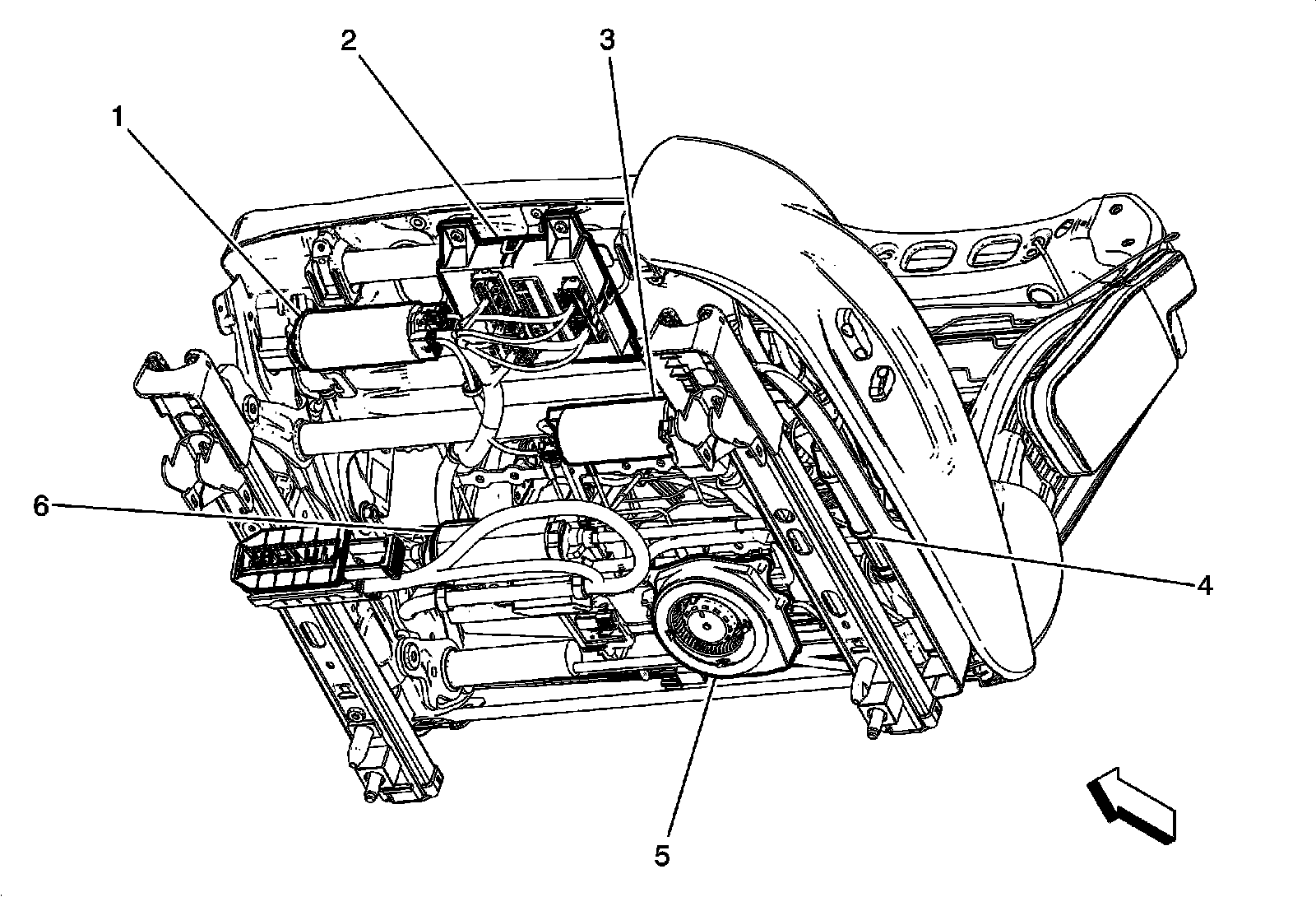

Left Front Seat Lower Components




1 - M51D Seat Horizontal Motor - Driver
2 - K40 Seat Memory Control Module (A45)
3 - M50D Seat Front Vertical Motor - Driver
4 - F112D Seat Belt Retractor Pretensioner - Driver
5 - M73C Seat Blower Motor - Driver Cushion (KU1)
6 - M55D Seat Rear Vertical Motor - Driver
