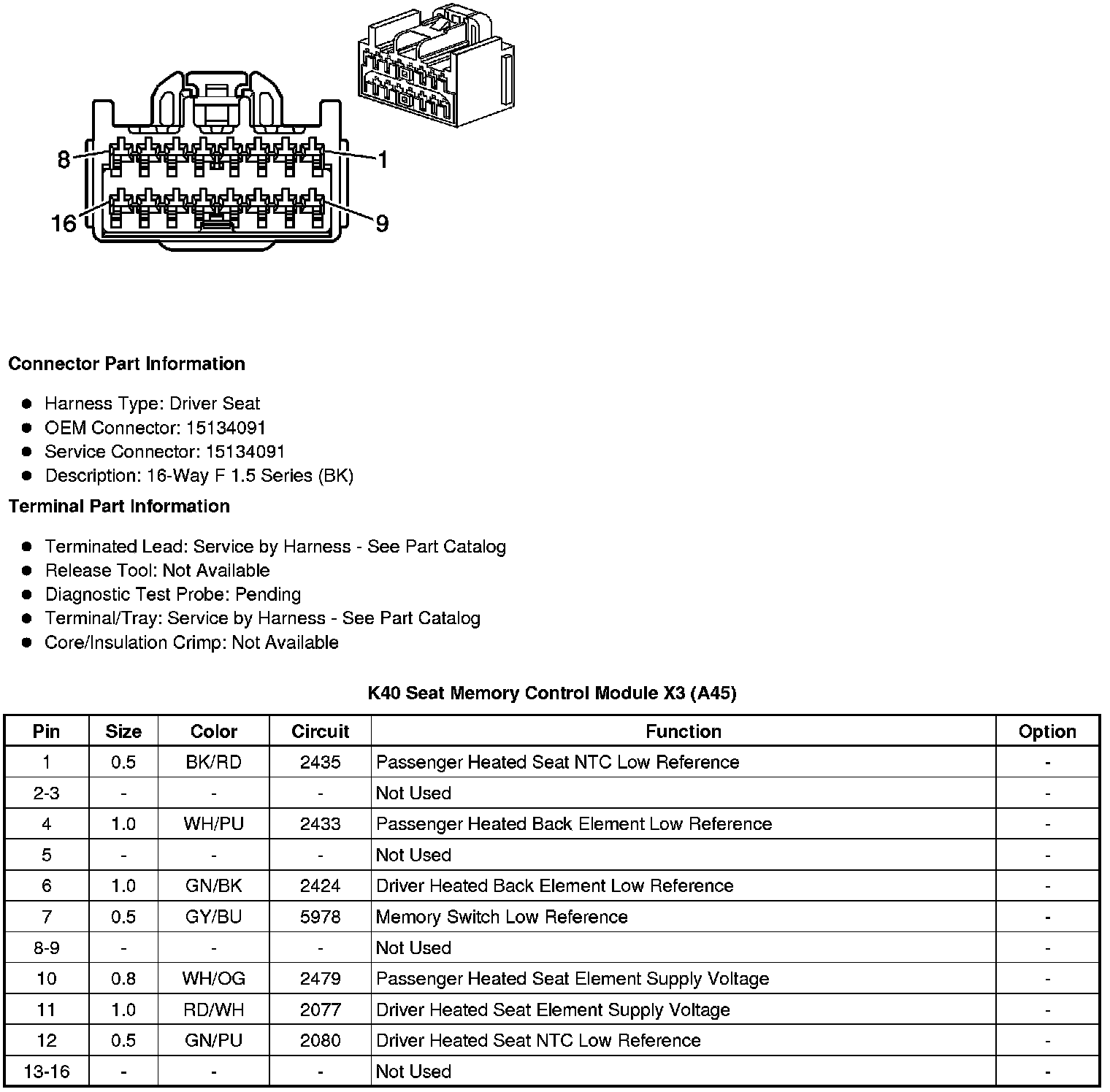

Seat Memory Control Module X3 (A45)




Component Connector End Views

K40 Seat Memory Control Module X3 (A45)
