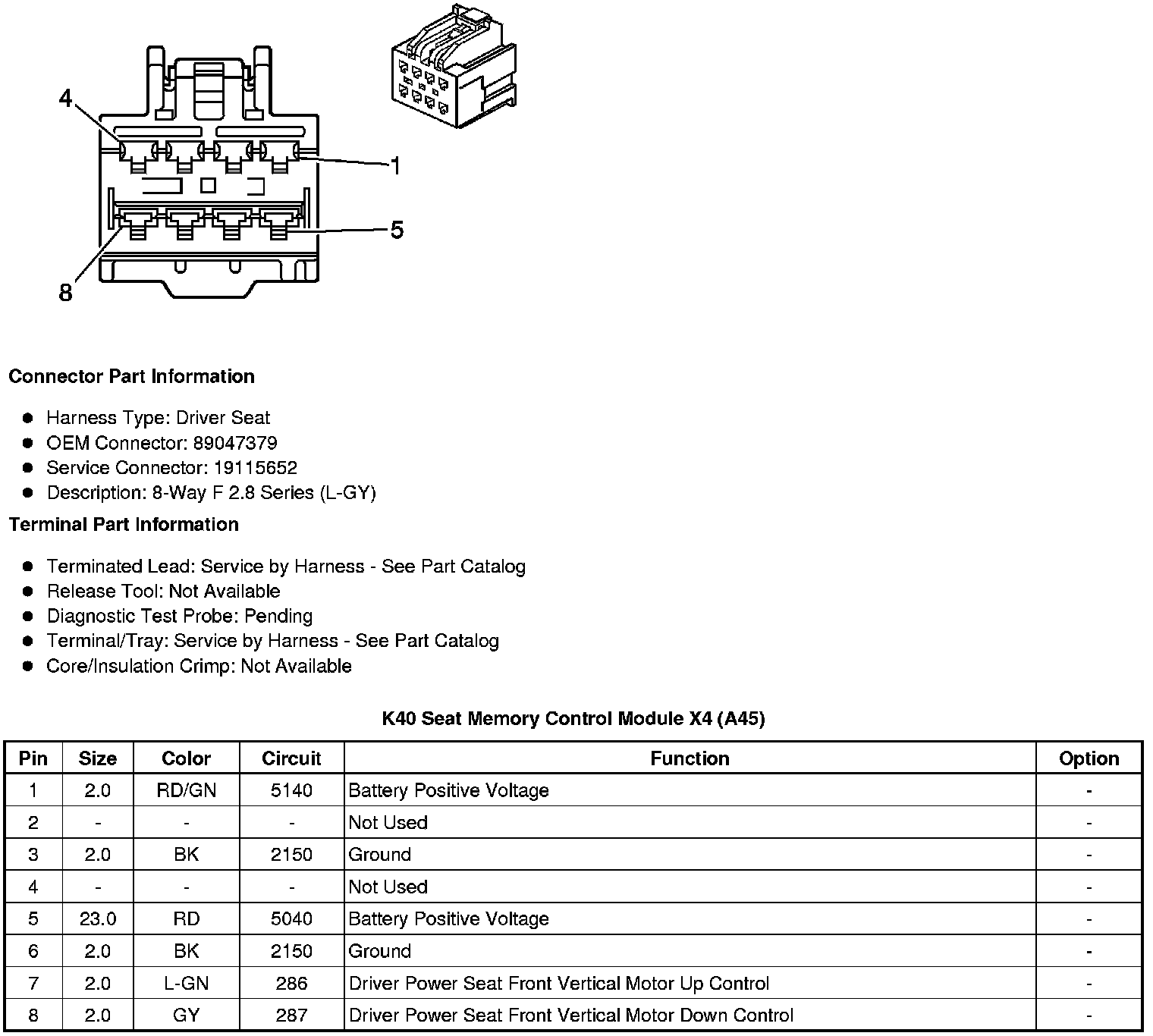

Seat Memory Control Module X4 (A45)




Component Connector End Views

K40 Seat Memory Control Module X4 (A45)
