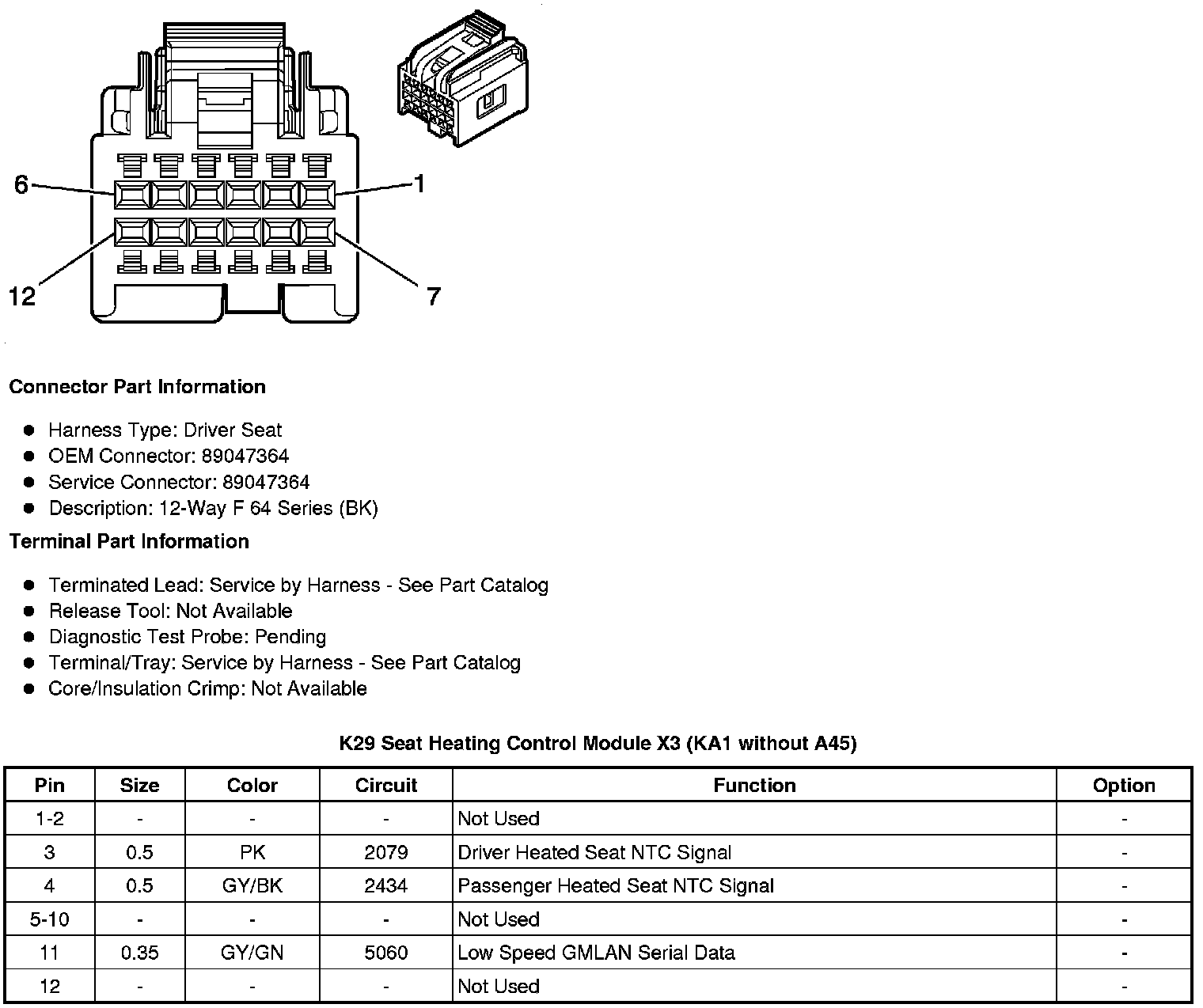

Seat Heating Control Module X3 (KA1 without A45)
Component Connector End Views
K29 Seat Heating
Control Module
X3 (KA1 without A45)
