Thread Repair Specifications
Thread Repair Specifications (LAF, LEA, or LUK)

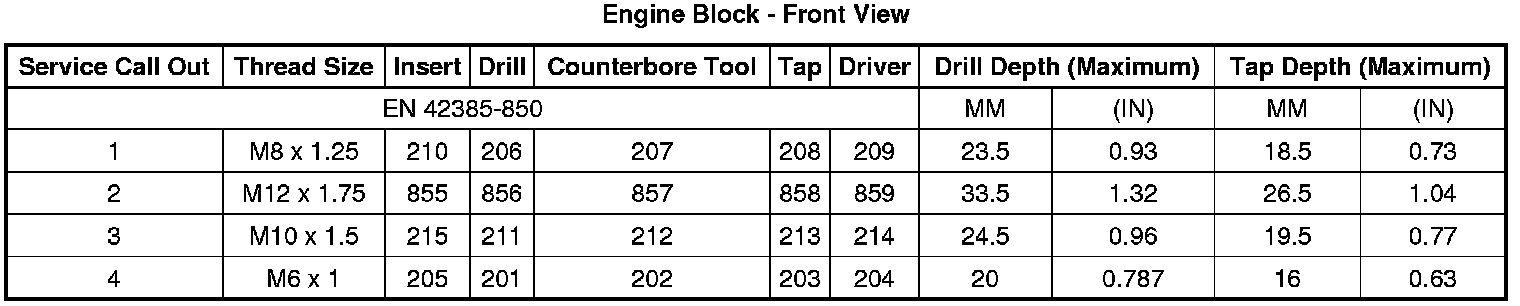

Engine Block - Front View

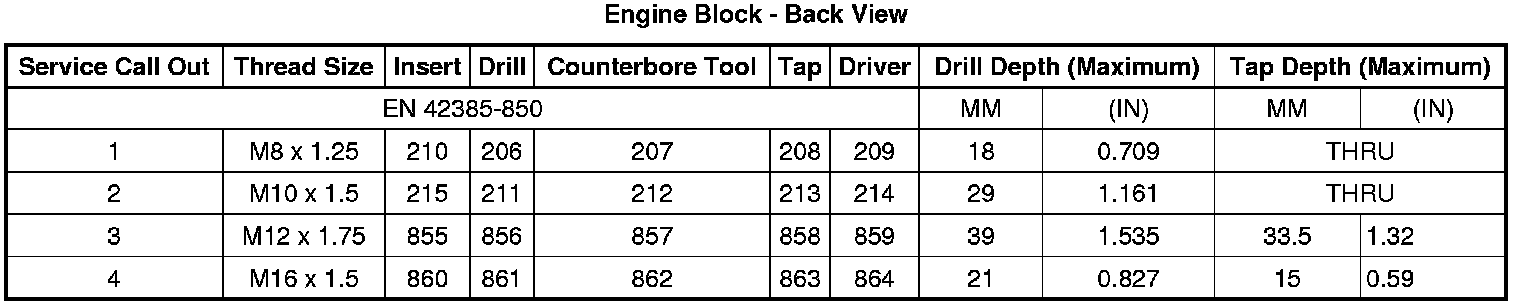

Engine Block - Back View

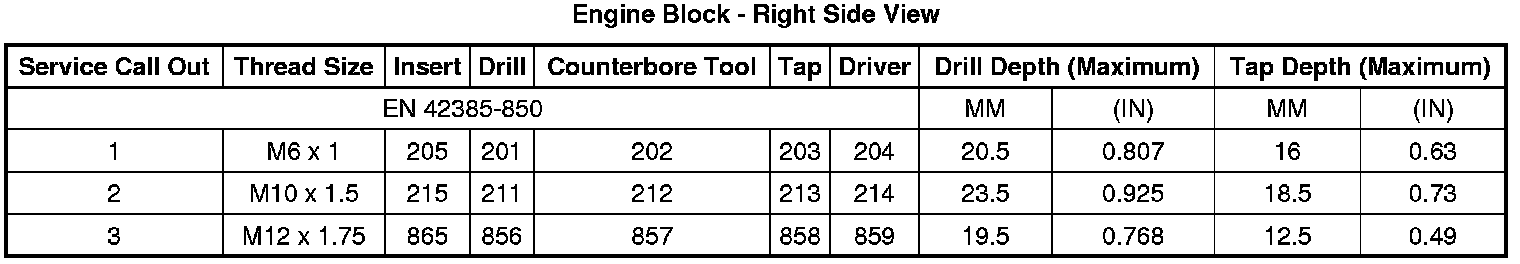

Engine Block - Right Side View

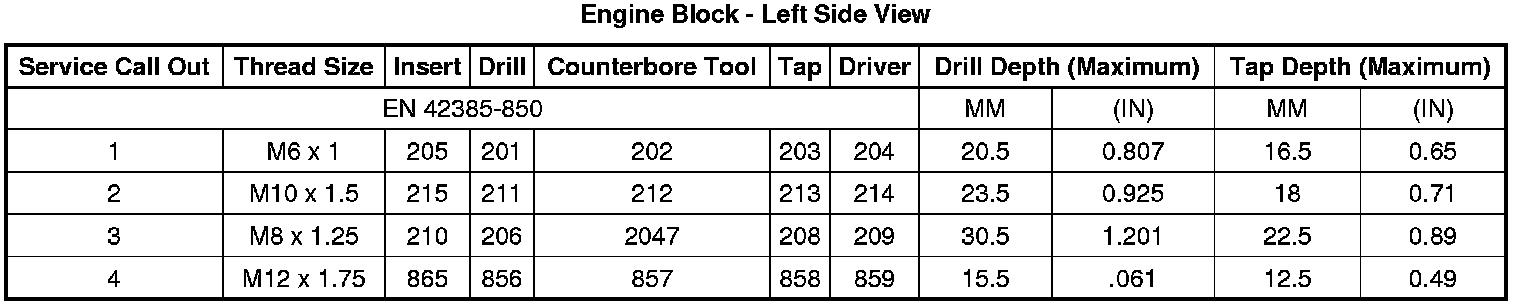

Engine Block - Left Side View

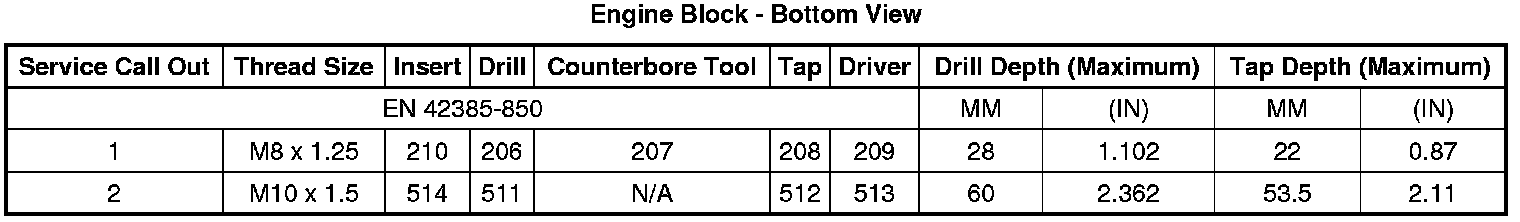

Engine Block - Bottom View

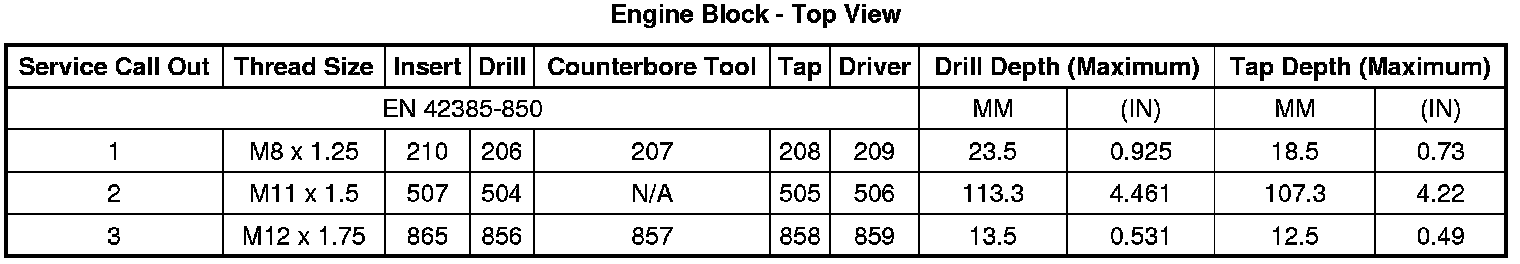

Engine Block - Top View

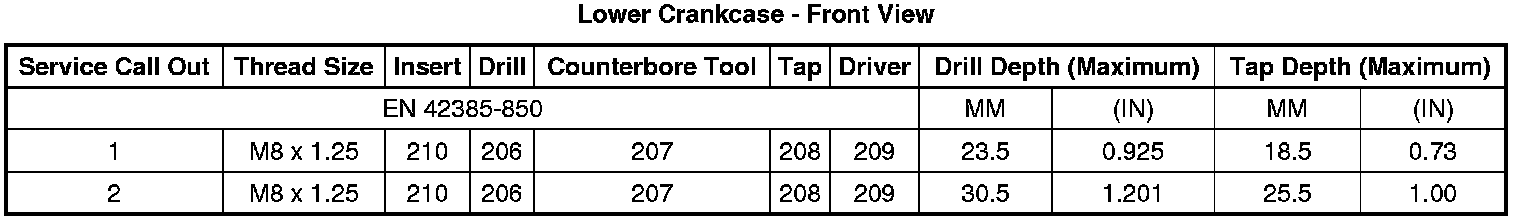

Lower Crankcase - Front View

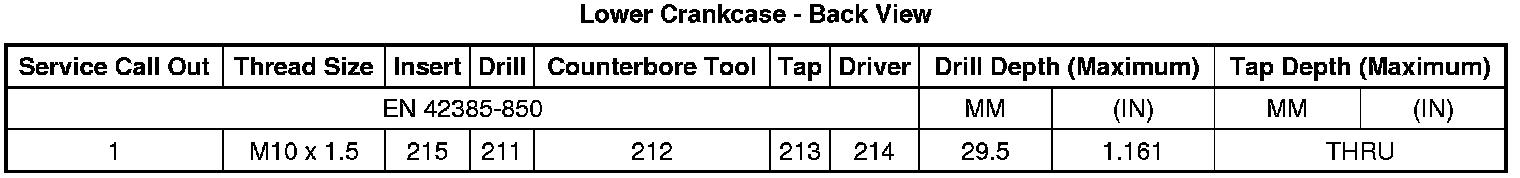

Lower Crankcase - Back View

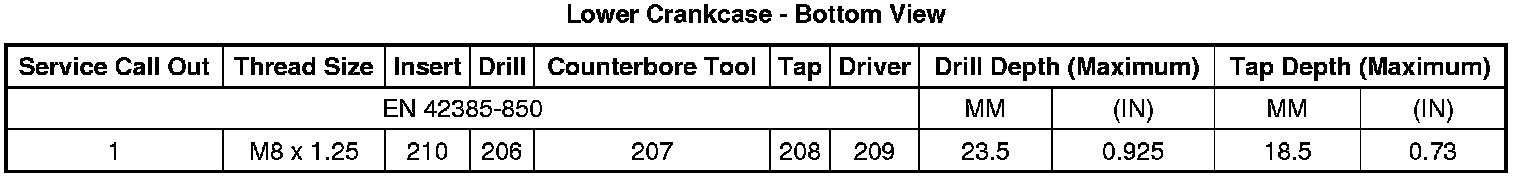

Lower Crankcase - Bottom View
Lower Crankcase - Right View

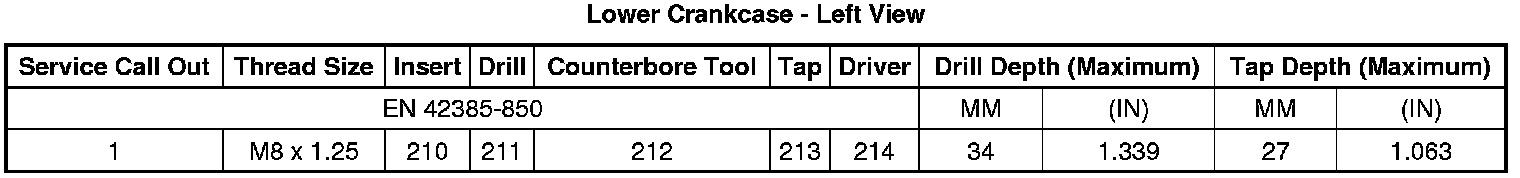

Lower Crankcase - Left View

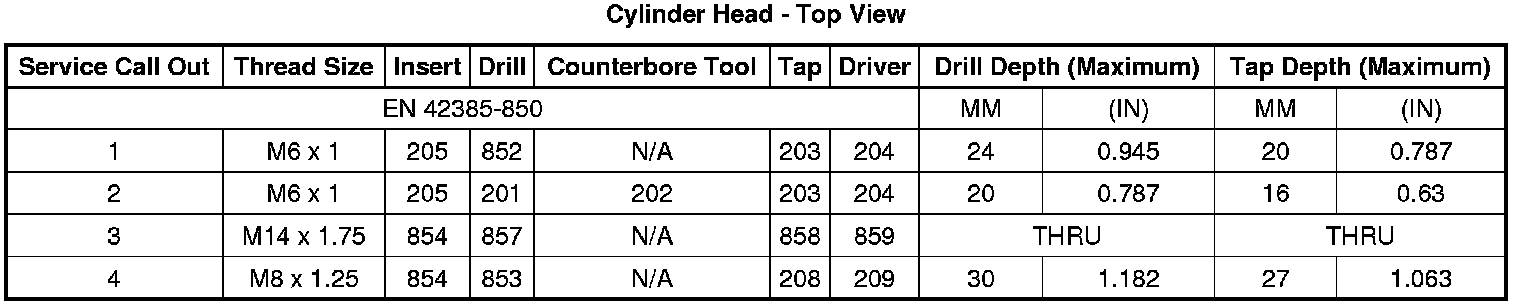

Cylinder Head - Top View

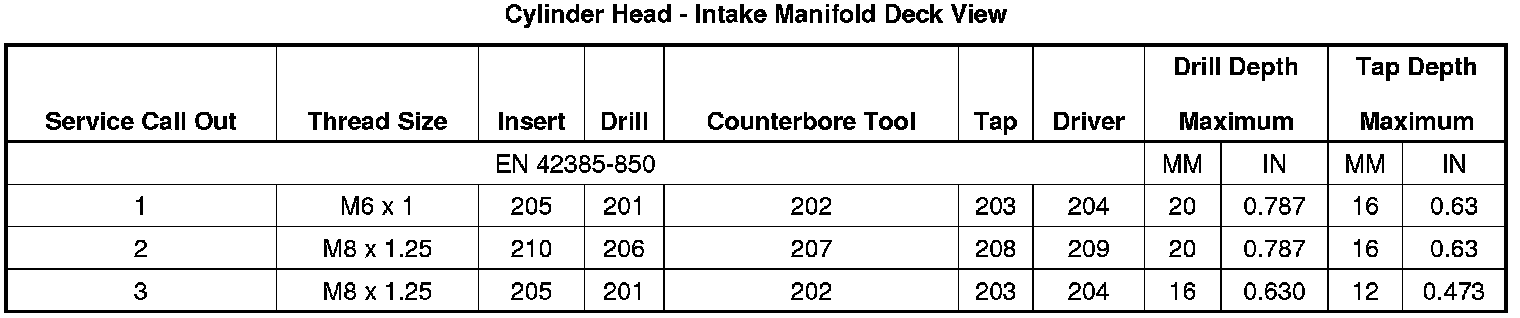

Cylinder Head - Intake Manifold Deck View

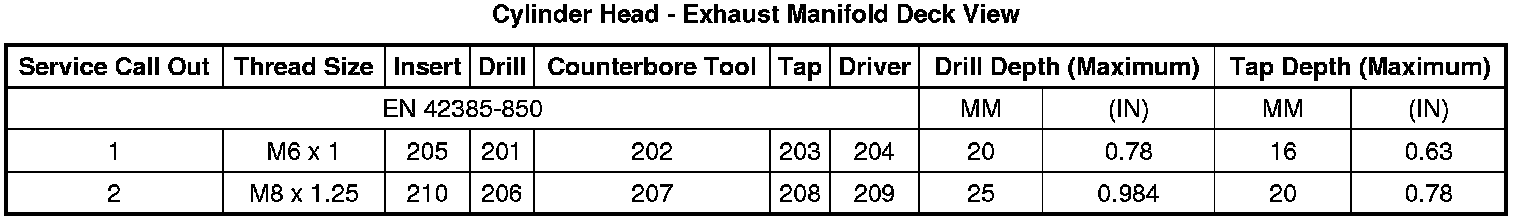

Cylinder Head - Exhaust Manifold Deck View

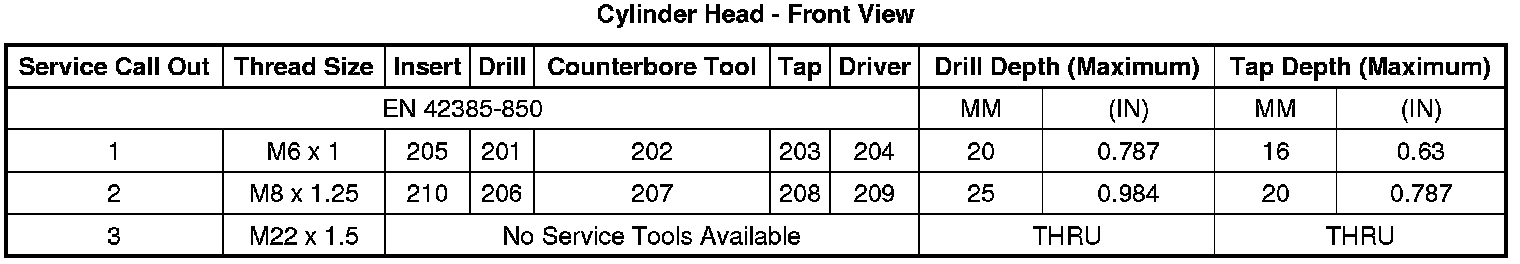

Cylinder Head - Front View

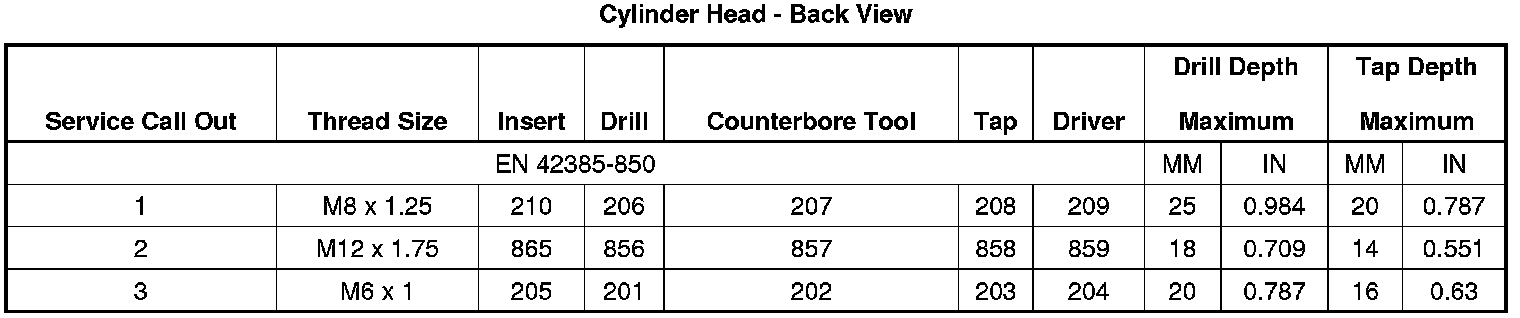

Cylinder Head - Back View
