Front Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

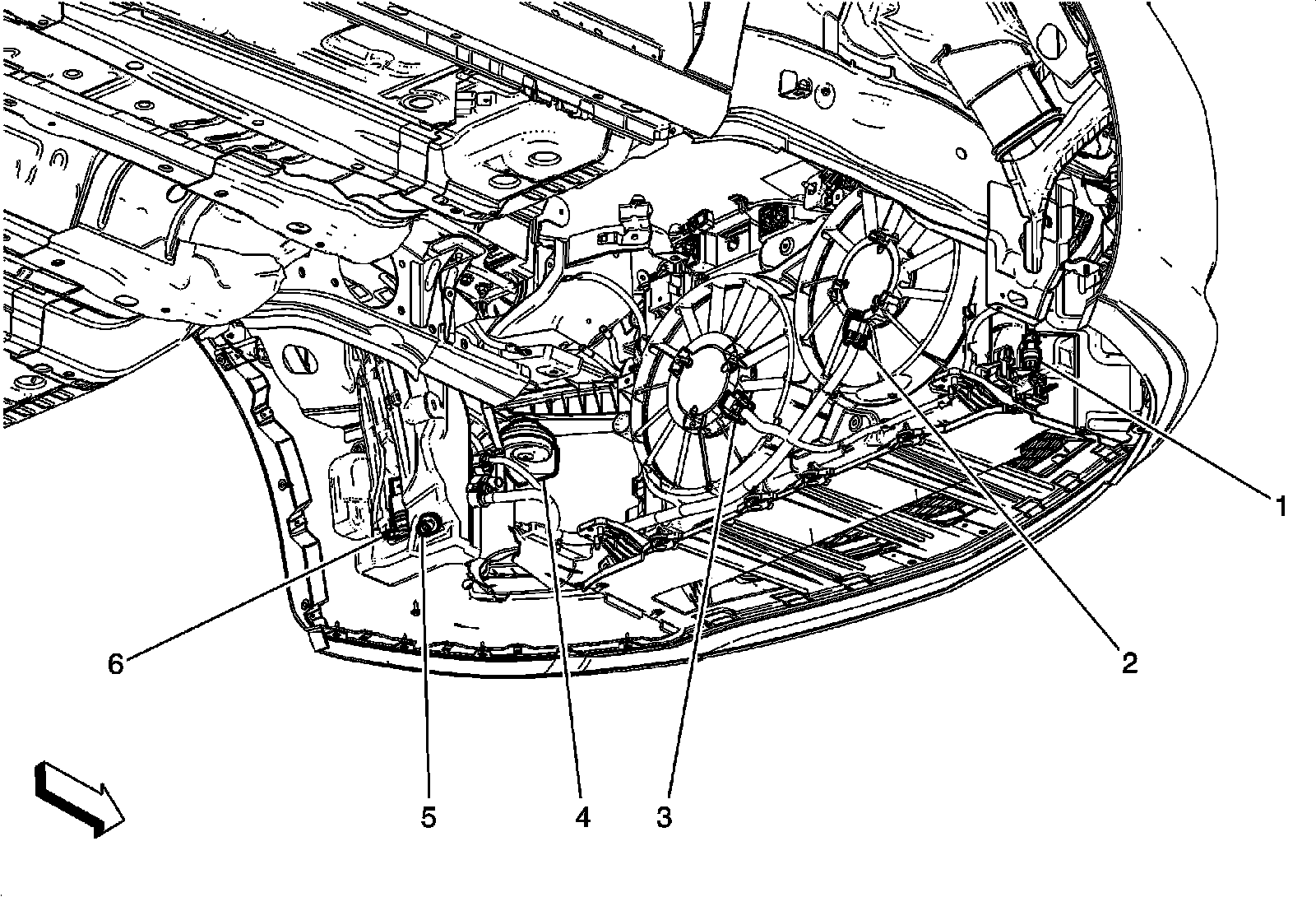

Front Engine Compartment Components




1 - B1 A/C Refrigerant Pressure Sensor
2 - G10R Cooling Fan Motor - Right
3 - G10L Cooling Fan Motor - Left
4 - P13 Horn Assembly
5 - B118 Windshield Washer Fluid Level Sensor
6 - G24 Windshield Washer Pump
