Fuel Level Sensor: Locations

Wheels/Vehicle Underbody Component Views

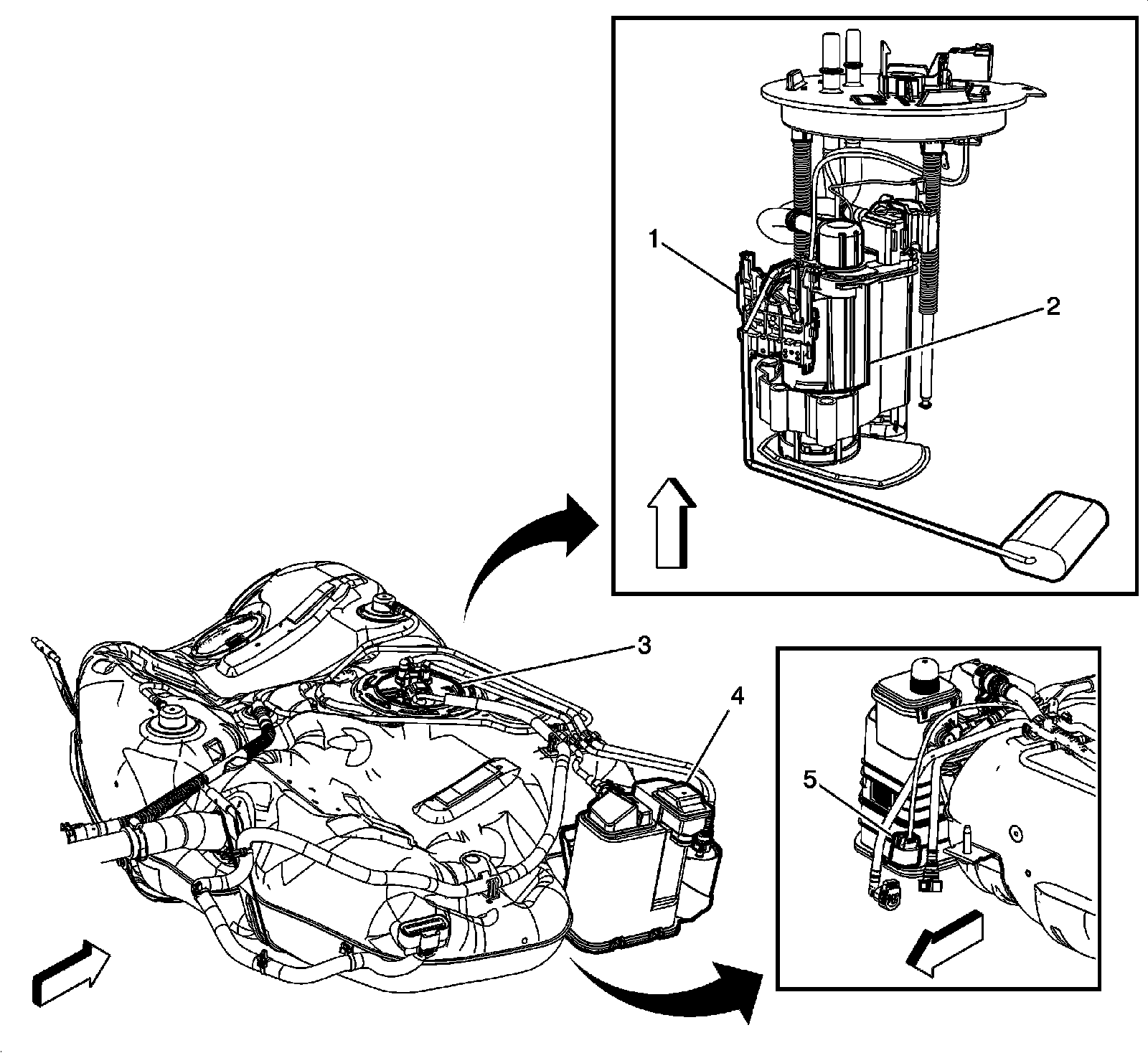

Fuel Tank Components




1 - B46B Fuel Level Sensor - Secondary (F46)
2 - G12 Fuel Pump
3 - A7 Fuel Pump and Level Sensor Assembly
4 - Q13 Evaporative Emission Vent Solenoid Valve
5 - B47 Fuel Pressure Sensor
