Communication Interface Module Replacement

WARNING: This page is about a different car, the 2010 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

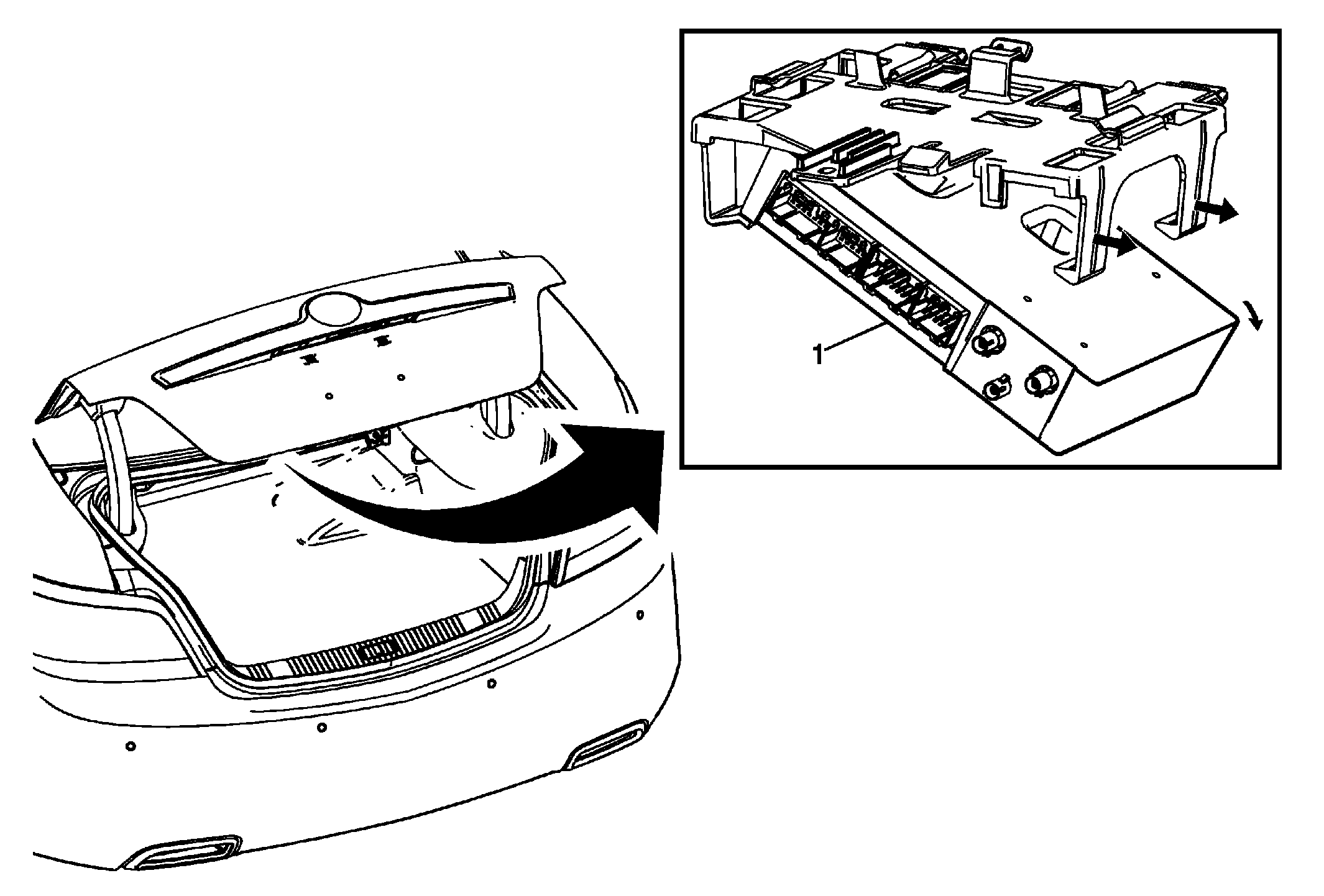

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Communication Interface Module Procedure Lower the rear window trim panel speaker opening cover where needed to access the module. Unsnap the module from the bracket. Disconnect the electrical connector. Reprogram the communication interface module after installation. Refer to Control Module References .

Callout

Component Name

Communication Interface Module

Procedure

Lower the rear window trim panel speaker opening cover where needed to access the module.
Unsnap the module from the bracket.
Disconnect the electrical connector.
Reprogram the communication interface module after installation. Refer to Control Module References .
