Rearview Camera Image Display Module Replacement

WARNING: This page is about a different car, the 2010 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

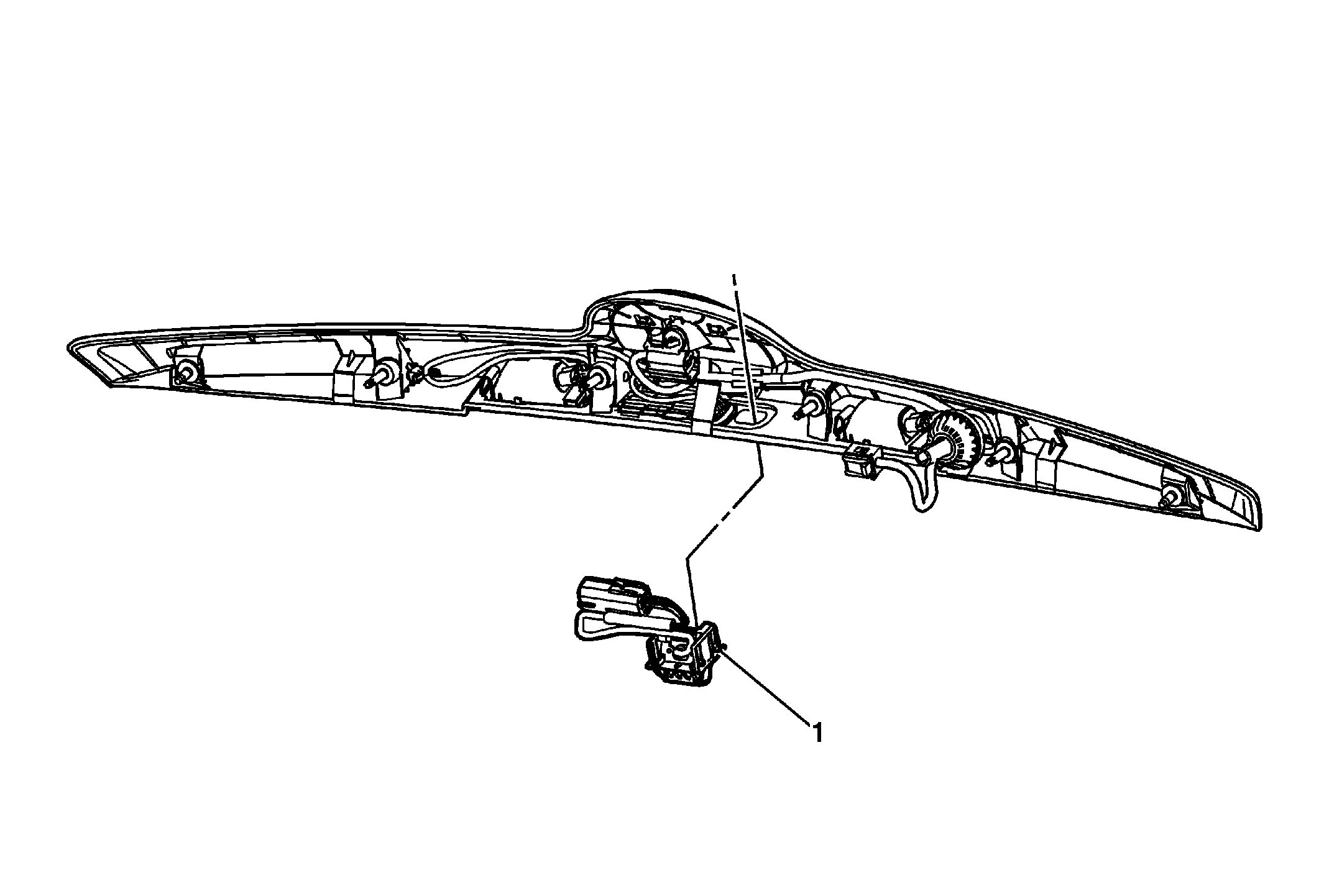

Fig 1: Rearview Camera Image Display Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear compartment lid applique. Refer to Rear Compartment Lid Applique Replacement .
1	Rearview Camera Procedure Disconnect the electrical connector Depress the clip fingers and push outward to remove the rearview camera.

Callout

Component Name

Preliminary Procedure:
Remove the rear compartment lid applique. Refer to Rear Compartment Lid Applique Replacement .

Rearview Camera

Procedure

Disconnect the electrical connector
Depress the clip fingers and push outward to remove the rearview camera.
