Navigation Radio Communications Diagram

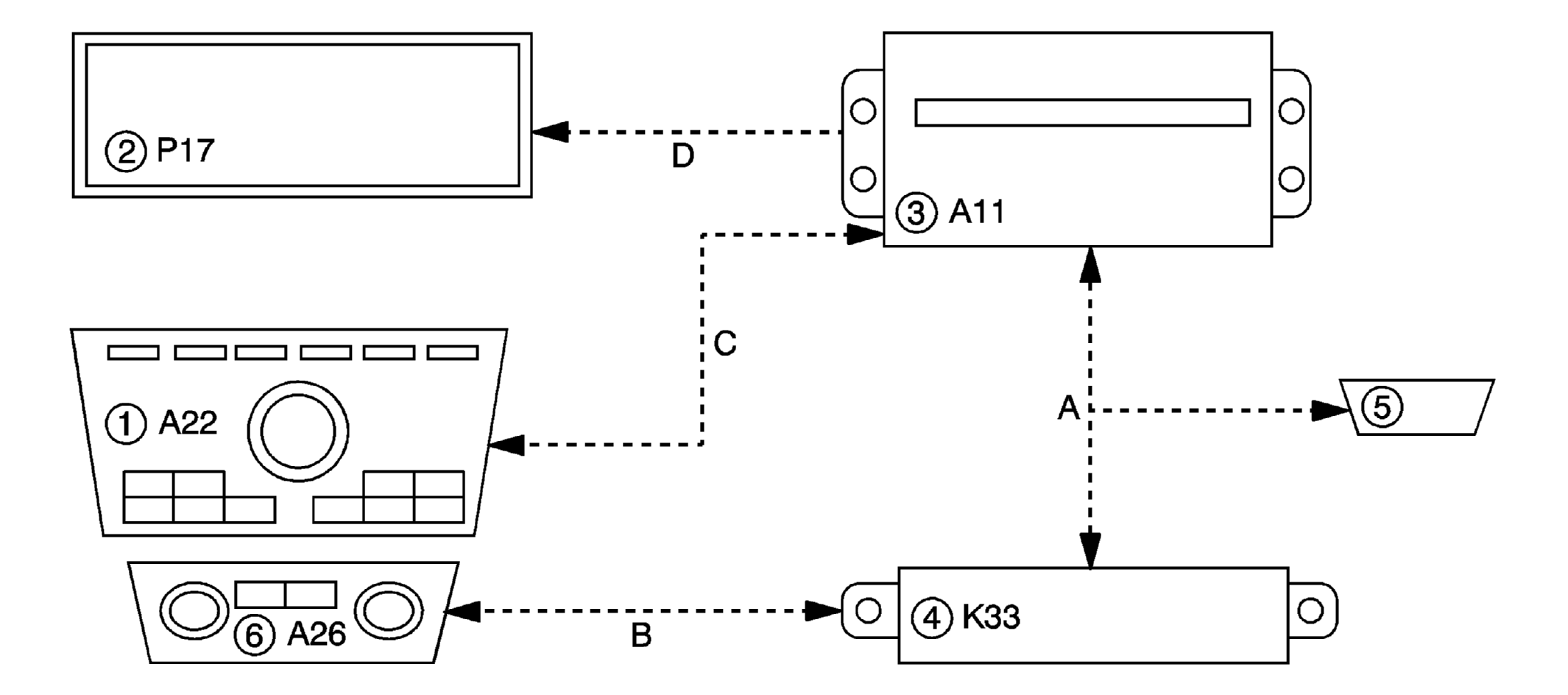

Fig 1: Navigation Radio Communications
GM2542707Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Radio Controls
2 Info Display Module
3 Radio
4 HVAC Control Module
5 Data Link Connector
6 HVAC Controls
a GMLAN
b Local Interconnect Network
c CAN Graphical Interface
d Digital Video
