Controls and Display Wiring Schematics

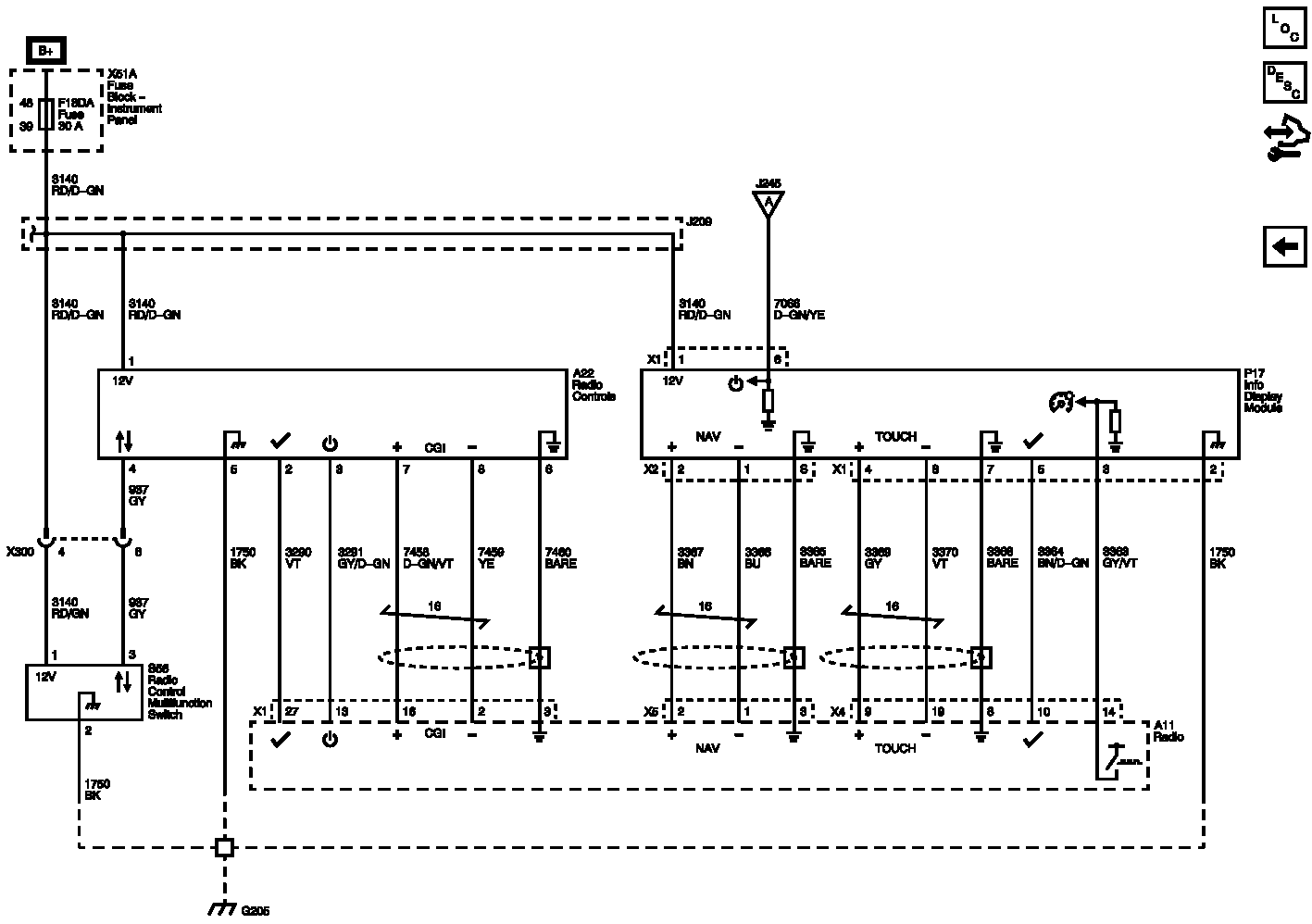

Fig 1: Controls and Display Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
