Front Compartment Fuse Block Housing Cover Replacement

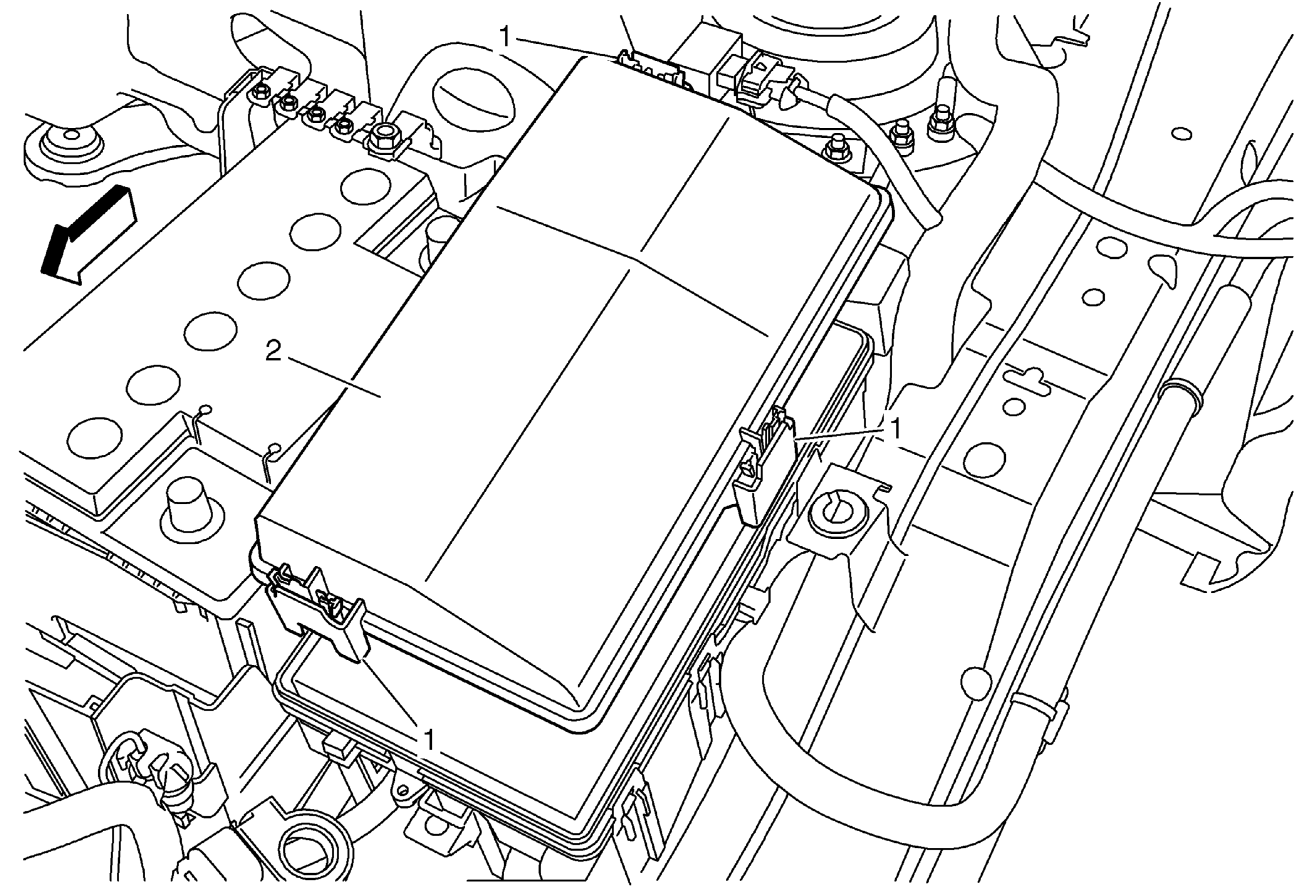

Fig 1: Front Compartment Fuse Block Housing Cover
GM2194329Courtesy of GENERAL MOTORS COMPANY
Front Compartment Fuse Block Housing Cover Replacement

Callout Component Name
1 Front Compartment Fuse Block Housing Cover

Procedure

  1. Release the front compartment fuse block housing cover on 3 points.
  2. Lift the front compartment fuse block housing cover.
