Communication Interface Module Battery Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

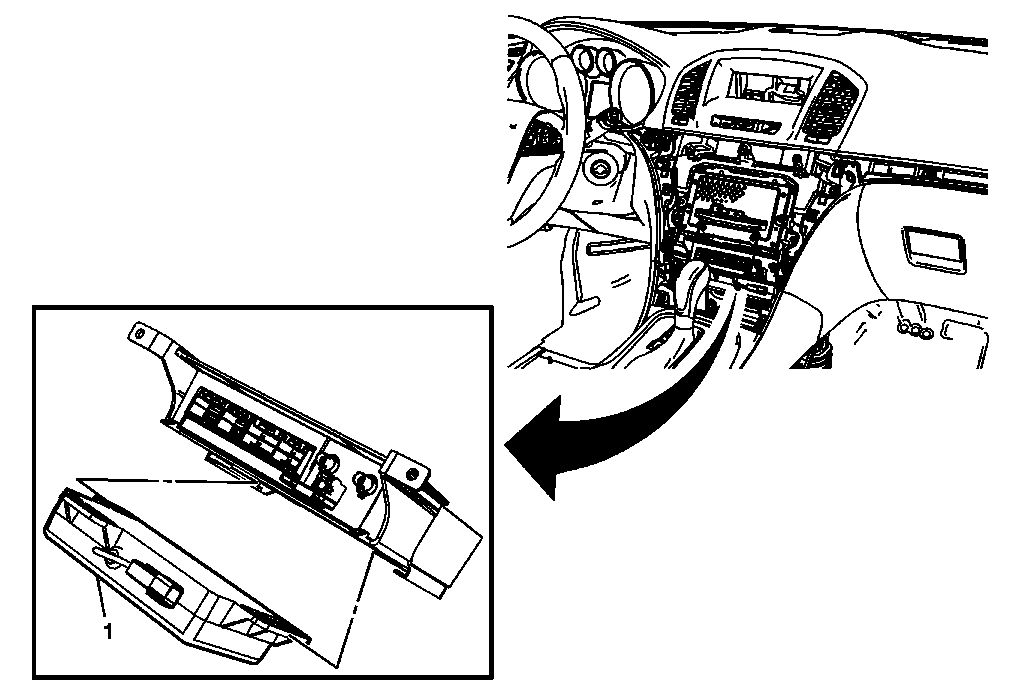

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .
1	Communication Interface Module Battery Procedure Unsnap the communication interface module battery from the bracket. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure:
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .

Communication Interface Module Battery

Procedure

Unsnap the communication interface module battery from the bracket.
Disconnect the electrical connectors.
