Navigation Signal Splitter Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

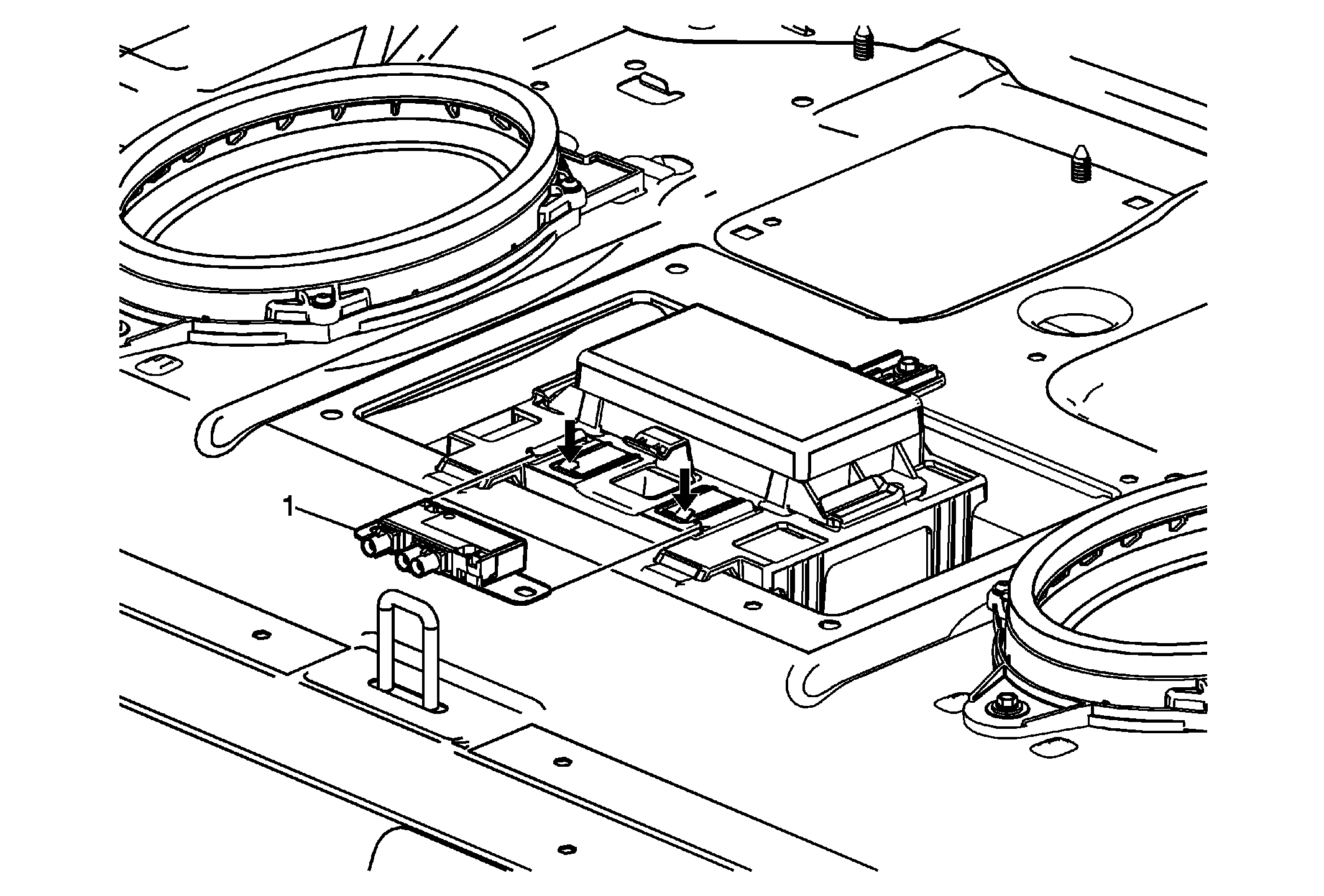

Fig 1: Navigation Signal Splitter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear window trim finish panel. Refer to Rear Window Trim Finish Panel Replacement .
1	Navigation Signal Splitter Assembly Procedure Disconnect the electrical connectors. Unsnap the navigation signal splitter from the bracket.

Callout

Component Name

Preliminary Procedure:
Remove the rear window trim finish panel. Refer to Rear Window Trim Finish Panel Replacement .

Navigation Signal Splitter Assembly

Procedure

Disconnect the electrical connectors.
Unsnap the navigation signal splitter from the bracket.
