Headlamp Control Module Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

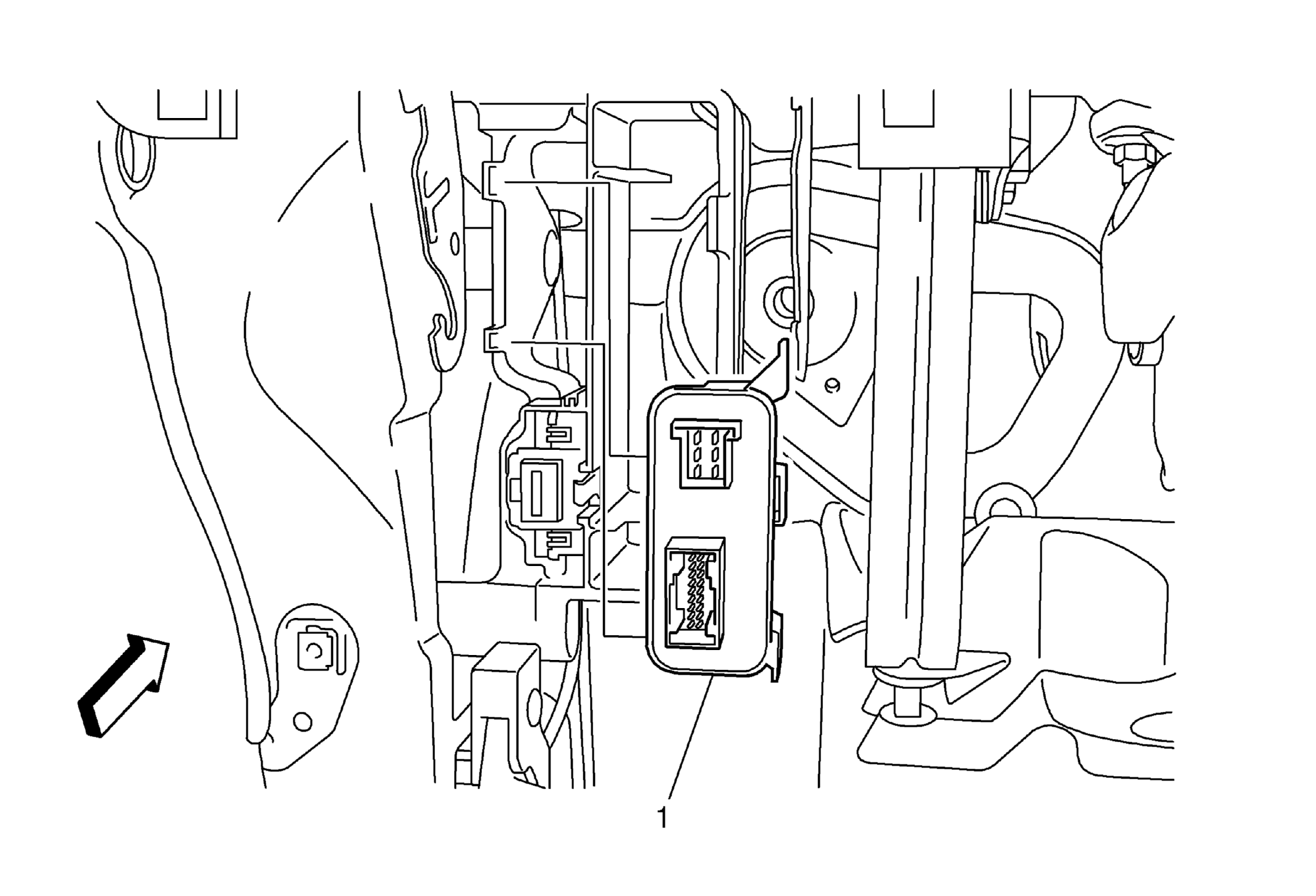

Fig 1: Headlamp Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Panel Insulator Replacement . Remove the body control module. Refer to Body Control Module Replacement (Left Hand Drive) .
1	Headlamp Control Module Procedure Disconnect the electrical connectors. Remove the headlamp control module. Set up and program the headlamp control module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Panel Insulator Replacement .
Remove the body control module. Refer to Body Control Module Replacement (Left Hand Drive) .

Headlamp Control Module

Procedure

Disconnect the electrical connectors.
Remove the headlamp control module.
Set up and program the headlamp control module. Refer to Control Module References .
