Audio Multifunction Control Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

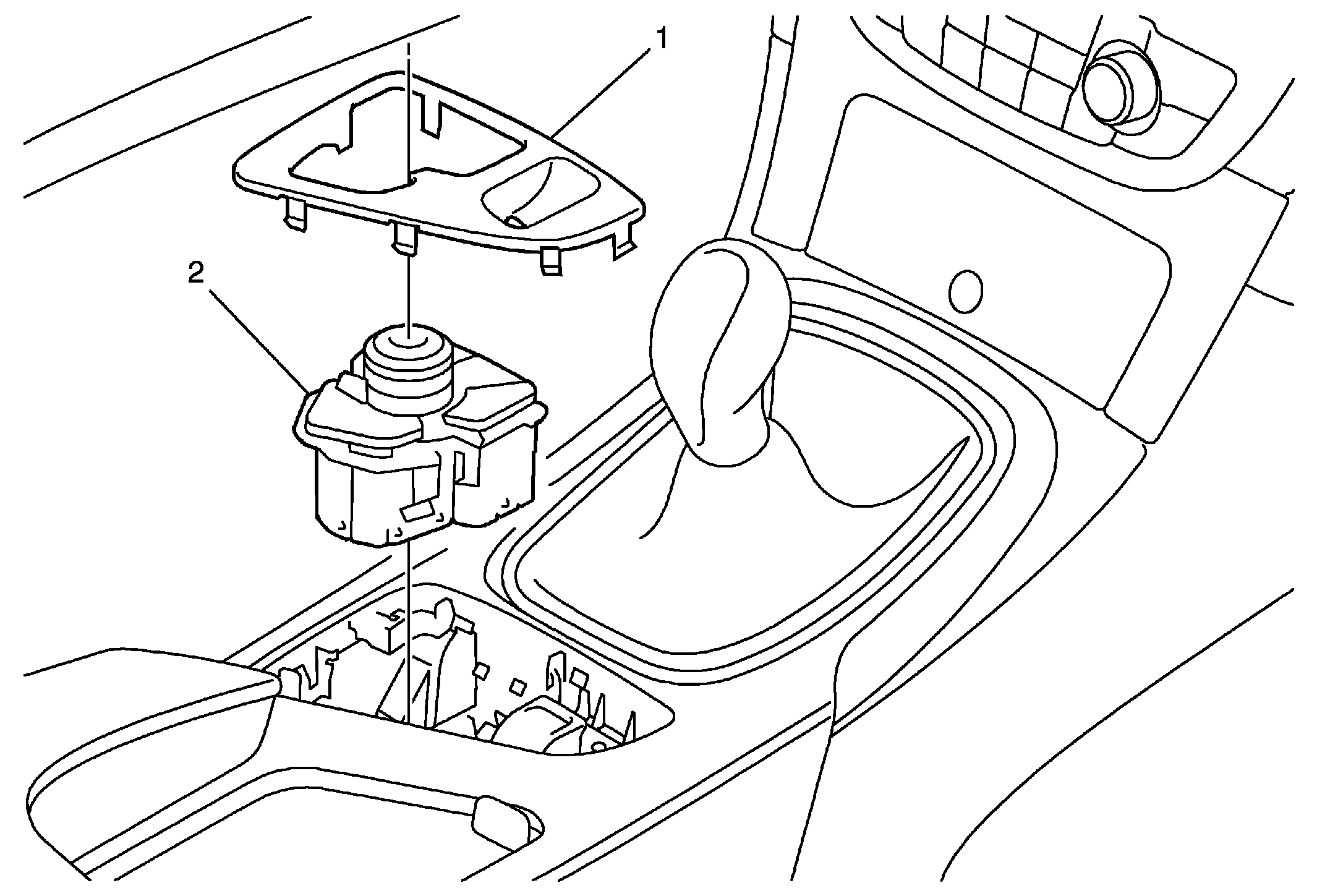

Fig 1: Audio Multifunction Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Floor Console Front Compartment TIP: Use a flat-bladed plastic trim tool in order to release the retainer clips securing the front floor console front compartment to the front floor upper console trim plate.
2	Audio Multifunction Control Procedure Disconnect the electrical connections.
