Communication Interface Module Battery Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

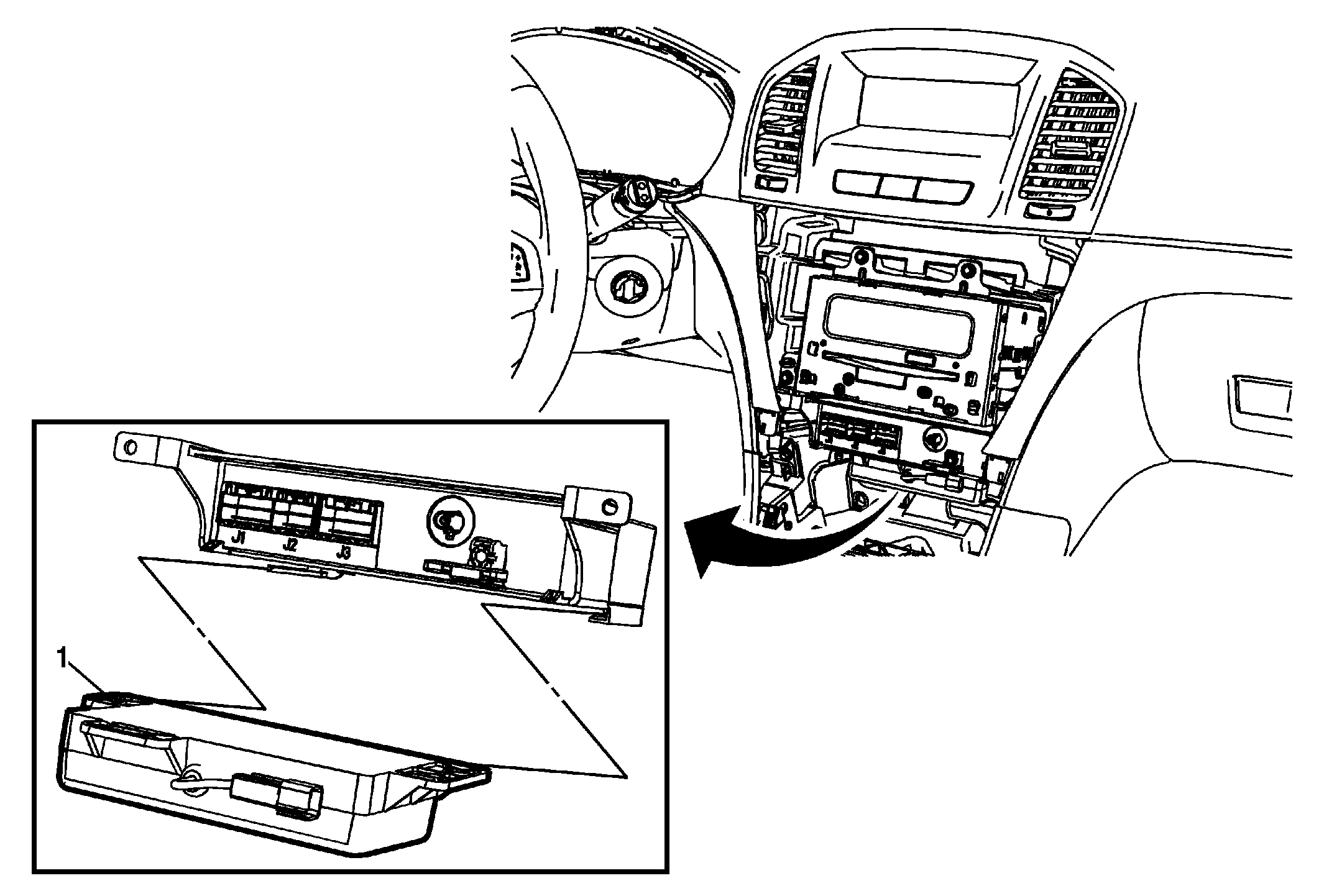

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .
1	Communication Interface Module Battery Procedure Unsnap the communication interface module battery from the bracket. Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedure
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .

Communication Interface Module Battery

Procedure

Unsnap the communication interface module battery from the bracket.
Disconnect the electrical connectors.
