Communication Interface Module Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

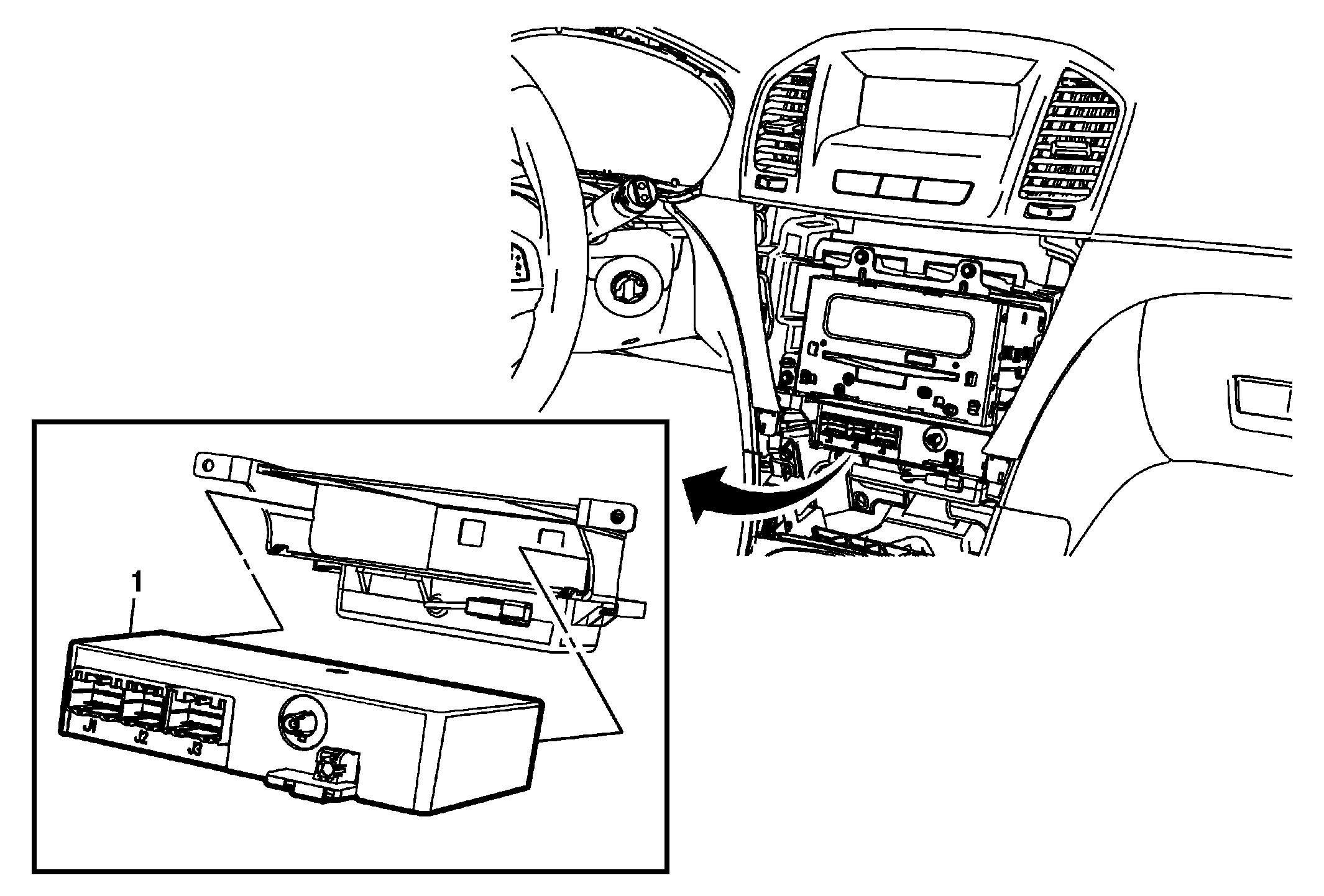

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the instrument panel lower trim panel replacement. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side . Remove the instrument panel lower extension side trim panel. Refer to Instrument Panel Lower Extension Side Trim Panel Replacement . Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .
1	Communication Interface Module Procedure Disconnect the electrical connections. For programming and set up information. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the instrument panel lower trim panel replacement. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
Remove the instrument panel lower extension side trim panel. Refer to Instrument Panel Lower Extension Side Trim Panel Replacement .
Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .

Communication Interface Module

Procedure

Disconnect the electrical connections.
For programming and set up information. Refer to Control Module References .
