Multimedia Player Interface Module Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

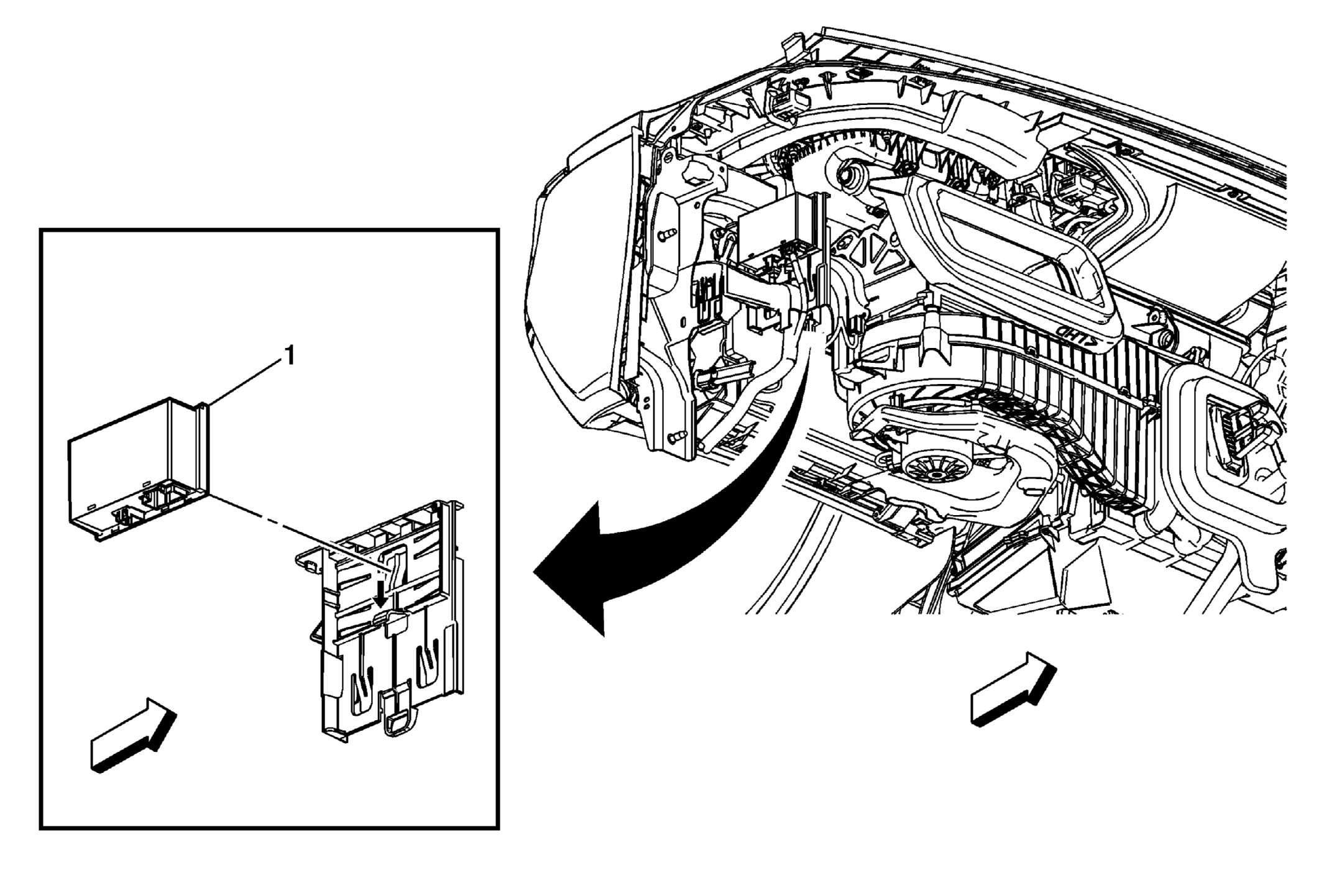

Fig 1: Multimedia Player Interface Module
GM2201656Courtesy of GENERAL MOTORS COMPANY
Multimedia Player Interface Module Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1 Multi Media Player Interface Module Assembly

Procedure

  1. Disconnect the electrical connectors.
  2. Unsnap to release the module from the bracket.
