Radio Control Module Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

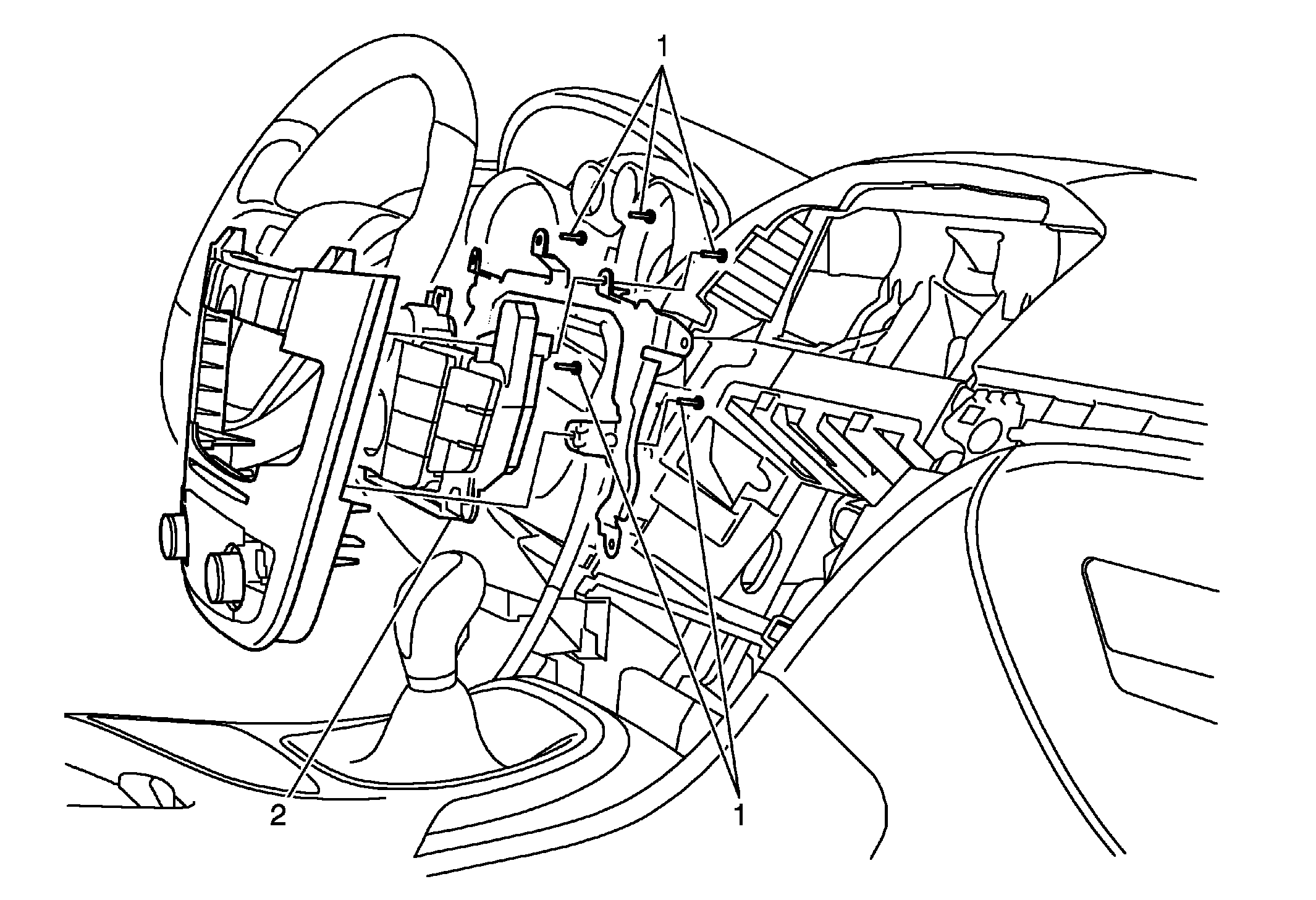

Fig 1: Radio Control Module & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .
1	Radio Control Module Fastener (Qty: 5) CAUTION: Refer to Fastener Caution .
2	Radio Control Module Procedure Disconnect the radio control module electrical connector. Disconnect antenna cable. Use a flat bladed plastic trim tool to aid in the removal of the radio control module.

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .

Radio Control Module Fastener (Qty: 5)

CAUTION:

Refer to Fastener Caution .

Radio Control Module

Procedure

Disconnect the radio control module electrical connector.
Disconnect antenna cable.
Use a flat bladed plastic trim tool to aid in the removal of the radio control module.
