Controls and Display (-CZ2)

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

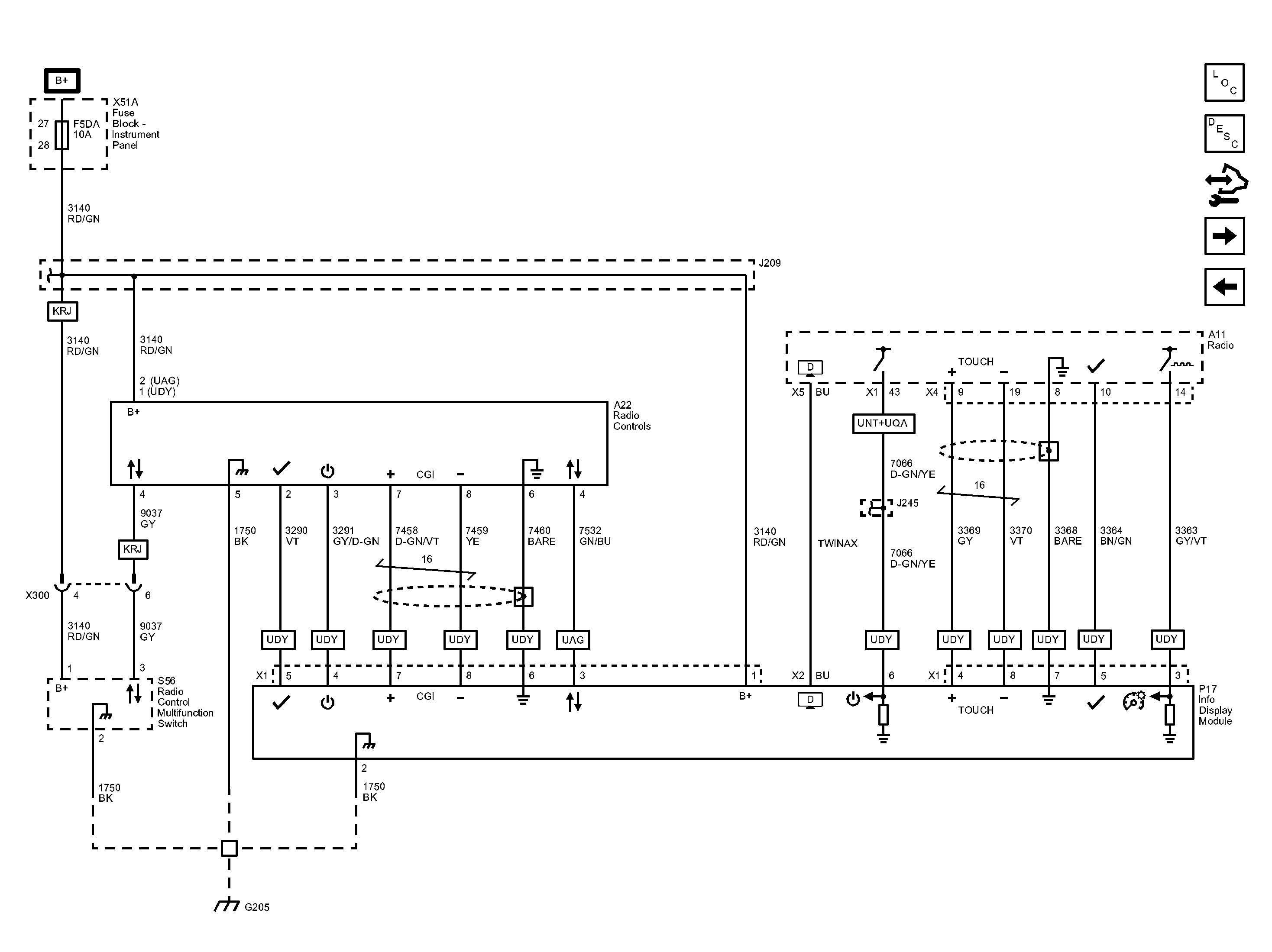

Fig 1: Controls and Display Wiring Schematic (-CZ2)
GM2789685Courtesy of GENERAL MOTORS COMPANY
