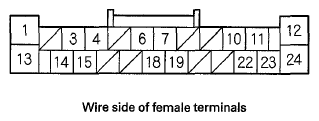

AUDIO UNIT CONNECTOR A (24P) (2010 Model)
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
TERMINAL NAME REFERENCE CHART
| Cavity | Wire Color | Terminal Name | Connect to |
|---|---|---|---|
| A1 | WHT | ILL- | Gauge control module |
| A3 | BLU | K-LINE | Data link connector (DLC) |
| A4 | GRN | SCTY | Multiplex integrated control unit (MICU) |
| A6 | ORN | RRR- | Right rear door speaker |
| A7 | BLU | RRR+ | Right rear door speaker |
| A10 | BRN | RRL- | Left rear door speaker |
| A11 | GRY | RRL+ | Left rear door speaker |
| A12 | BLK | MAIN GND | Body ground to G503 |
| A13 | GRY | ILL+ | No. 29 (10 A) fuse in the under-dash fuse/relay box |
| A14 | PUR | ACC | No. 14 (7.5 A) fuse in the under-dash fuse/relay box |
| A15 | BLU | VSP | PCM (vehicle speed pulse) |
| A18 | RED | FRR- | Front passenger's door speaker. Right tweeter |
| A19 | BLU | FRR+ | Front passenger's door speaker. Right tweeter |
| A22 | GRY | FRL- | Driver's door speaker, Left tweeter |
| A23 | LT BLU | FRL+ | Driver's door speaker. Left tweeter |
| A24 | PNK | + B BACKUP | No. 1 (15 A) fuse in the under-dash fuse/relay box |
