Acceleration Sensor, Suspension Control

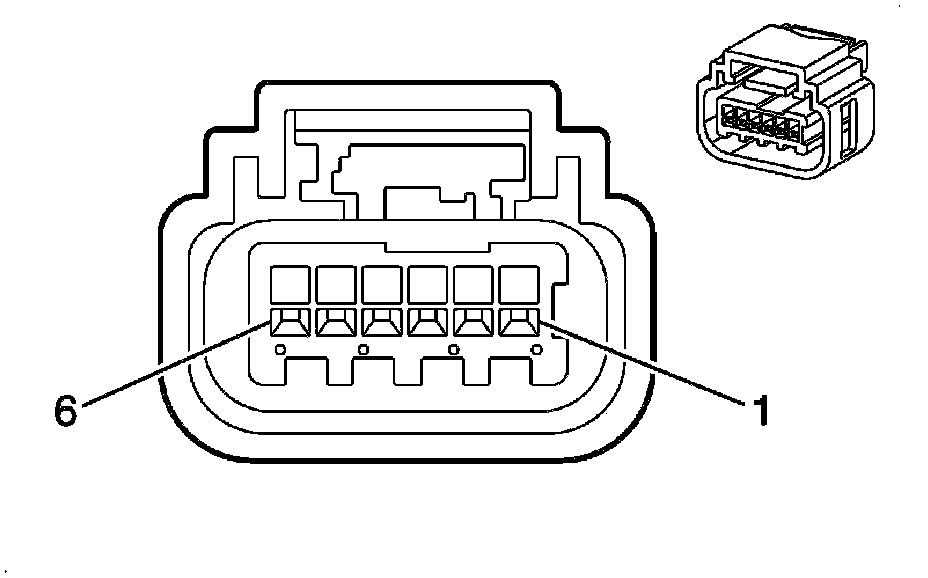

Component Connector End Views

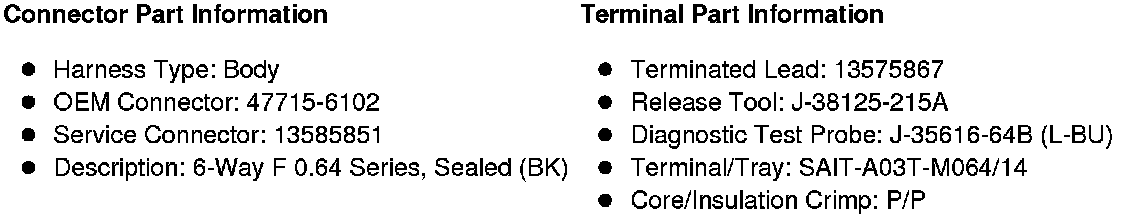

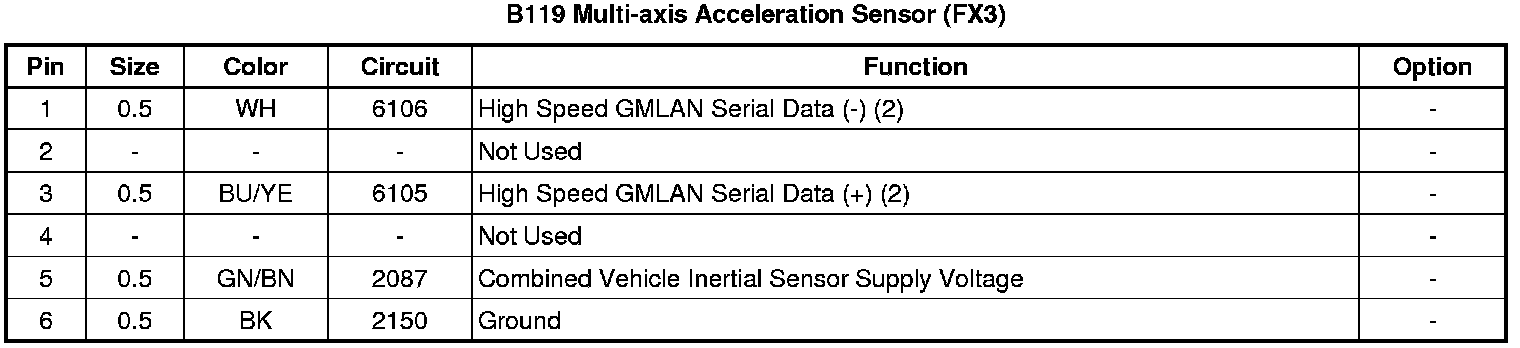

B119 Multi-axis Acceleration Sensor (FX3)
